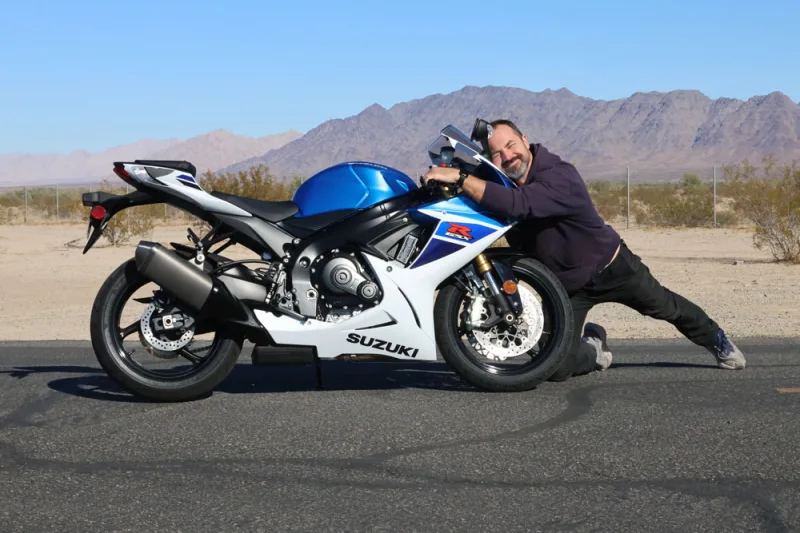

Suzuki GSX-R750 - 2024 Specifications and Reviews
No pictures availableGeneral information | |
| Price as new | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Category | Sport |
| Year | 2024 |
| Model name | Suzuki GSX-R750 |
Engine and Transmission Specifications | |
| Driveline | Constant mesh |
| Clutch | Wet, multi-plate |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Wet sump |
| Ignition | Transistorized |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Suzuki Dual Throttle Valve fuel injection |
| Valves per cylinder | 4 |
| Bore x stroke | 70.0 x 48.7 mm (2.8 x 1.9 inches) |
| Compression | 12.5:1 |
| Torque | 86.2 Nm (8.8 kgf-m or 63.6 ft.lbs) @ 11200 RPM |
| Power | 150.0 HP (109.5 kW)) @ 13200 RPM |
| Engine details | Titanium alloy valves |
| Engine type | In-line four, four-stroke |
| Capacity: | 750.0 ccm (45.77 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Three-spoke cast aluminum alloy |
| Rear brakes | Single disc. Nissin-1 piston. |
| Diameter | 310 mm (12.2 inches) |
| Front brakes | Double disc. Brembo 4-piston. |
| Rear tire | 180/55-ZR17 |
| Front tire | 120/70-ZR17 |
| Rear wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Link type, single shock, coil spring, oil damped |
| Front wheel travel | 120 mm (4.7 inches) |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Frame type | Twin-spar aluminum cradle |
| | |
Physical measures and capacities | |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Wheelbase | 1390 mm (54.7 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Overall width | 710 mm (28.0 inches) |
| Overall length | 2030 mm (79.9 inches) |
| Overall height | 1135 mm (44.7 inches) |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 190.0 kg (418.9 pounds) |
Other specs | |
| Comments | Small windscreen. Drive modes. |
| Factory warranty | 12 month unlimited mileage limited warranty. |
| Light | Vertically stacked high- and low-beam 65W halogen bulbs |
| Instruments | Analog tachometer and LCD panel with speed, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS, and gear position indicators |
| Starter | Electric |
| Color options | Pearl Brilliant White/Metallic Matte Stellar Blue, Glass Sparkle Black/Glass Matte Mechanical Gray |
| | |
Maintenance and service data | |
| Fork tube size | 41 mm (1.6 inches) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure front | 33 PSI (2.3 Bar or 230 kPa) |
| Sprockets | 15/43 (front/rear) |
| Chain links | 116 |
| Chain size | 525 |
| Idle speed | 1000-1200 RPM |
| Spark plugs | NGK CR9EIA-9, DENSO IU27D |
| Brake fluid | DOT 4 |
| Update specs | SAE 10W-40 |
