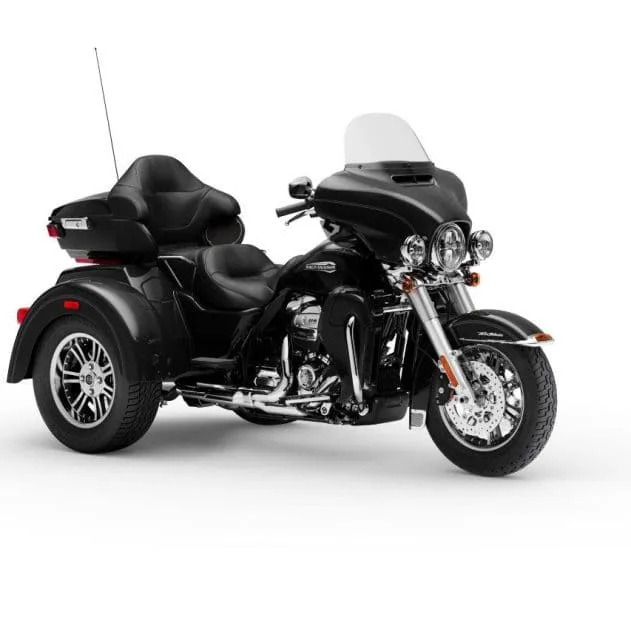

Harley-Davidson Tri Glide Ultra - 2020 Specifications and Reviews
The 2020 Harley-Davidson Tri Glide Ultra is a touring trike designed for riders seeking stability and comfort on long-distance journeys. It features a massive windshield, cruise control, Bluetooth connectivity, and spacious trunk storage, making it ideal for extended road trips. Known for its commanding presence and accessible ride experience, the trike offers classic Harley styling with modern touring amenities.
General information | |
| Price as new | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Category | Touring |
| Year | 2020 |
| Model | Harley-Davidson Tri Glide Ultra |
Engine and Transmission Specifications | |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Driveline | Chain, 34/46 ratio primary drive |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Transmission type | Belt (final drive) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Bore x Stroke | 102.0 x 114.3 mm (4.0 x 4.5 inches) |
| Compression | 10.5:1 |
| Torque | 164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) @ 3250 RPM |
| Power | 100.0 HP (73.0 kW) @ 5000 RPM |
| Engine details | Twin-Cooled™ Milwaukee-Eight® 114 engine |
| Engine type | V2, four-stroke |
| Capacity: | 1868.0 ccm (113.99 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Black, 7-spoke Cast Aluminum. Two rear wheels. |
| Rear brakes | Single disc. ABS. Integrated park brake. |
| Front brakes | Double disc. 6 piston. ABS. |
| Rear tire | 205/65-R15 |
| Front tire | MT90-B16 |
| Front Suspension | Telescopic fork |
| Trail | 100 mm (3.9 inches) |
| Rake (fork angle) | 26.0° |
| | |
Physical measures and capacities | |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Wheelbase | 1670 mm (65.7 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Overall width | 1395 mm (54.9 inches) |
| Overall length | 2670 mm (105.1 inches) |
| Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.1833 HP/kg |
| Weight incl. oil, gas, etc | 563.8 kg (1,243.0 pounds) |
| Dry weight | 545.7 kg (1,203.0 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Trike. Windshield. Cruise control. Alarm. USB. Bluetooth. Foot actuated dual parking brake. |
| Carrying capacity | Trunk and top box |
| Light | High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
| Instruments | Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light |
| Starter | Electric |
| Color options | Vivid Black, Spruce, Midnight Blue/Barracuda Silver, River Rock Grey/Vivid Black, Tahitian Teal |
Performance Profile & Rider Fit
93 hp
Peak Power
6.5s
0-60 mph
Best For
Track3%
City28%
Cornering15%
Daily Riding35%
Touring96%
Passenger92%
Rider Profile
| Best For | Great for riders who want touring luxury without balancing a two-wheeler; its trike layout suits returning, aging, or mobility-limited riders, though its size still demands respect. |
| Purpose | Built for long-haul two-up touring in maximum comfort, hauling gear in its trunk and top box across highways and open roads. |
| Rider Fit | Massive 561kg three-wheeler with a low 688mm seat, wide stance, full fairing, floorboards, audio, and electric reverse for easy parking. |
| Character | A rolling luxury lounge - stable, planted, torque-rich and unhurried, delivering effortless mile-munching with no need to balance or put a foot down. |
| Not Ideal For | Not for anyone chasing agility, canyon carving, track days, tight city filtering, or off-road use; it steers like a car, not a motorcycle. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
Rider Reviews
Total comments: 1
MotorcycleDB Review
The 2020 Harley-Davidson Tri Glide Ultra is a top-of-the-line touring motorcycle that offers a comfortable and smooth ride for long distance travel. With its powerful Milwaukee-Eight 114 engine and responsive handling, this bike provides a thrilling and stable ride on both highways and backroads. The spacious and luxurious cockpit, equipped with a Boom! Box GTS infotainment system, adds to the overall comfort and convenience for riders and passengers. Additionally, the Tri Glide Ultra features advanced safety and security features, making it a reliable and trustworthy option for riders of all experience levels. Overall, this motorcycle is the perfect choice for those looking for a high-performance and reliable touring option. The 2020 Harley-Davidson Tri Glide Ultra stands out as a top-tier touring motorcycle for its powerful engine, comfortable cockpit, and advanced safety features. It provides a smooth and thrilling ride for long distance travel, making it the perfect option for riders who prioritize comfort and performance. With its spacious design and advanced infotainment system, this bike offers a luxurious and convenient experience for both riders and passengers. Whether cruising on the highway or navigating through winding backroads, the Tri Glide Ultra delivers a stable and responsive ride that is sure to impress. Overall, this motorcycle is a top choice for those seeking a reliable and high-performance touring option.Add a Comment
