What category is the 2015 Moto Guzzi Stelvio 1200 NTX?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Category of Super motard.

What type of engine does the 2015 Moto Guzzi Stelvio 1200 NTX have?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Engine type of V2, four-stroke.

What is the engine power of the 2015 Moto Guzzi Stelvio 1200 NTX?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Power of 105.00 HP (76.6 kW) @ 7250 RPM.

What is the torque of the 2015 Moto Guzzi Stelvio 1200 NTX?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Torque of 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM.

Is the 2015 Moto Guzzi Stelvio 1200 NTX air cooled or liquid cooled?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Cooling system of Oil & air.

How many gears does the 2015 Moto Guzzi Stelvio 1200 NTX have?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Gearbox of 6-speed.

How much does the 2015 Moto Guzzi Stelvio 1200 NTX weigh?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Weight incl. oil, gas, etc of 272.0 kg (599.7 pounds).

What is the seat height of the 2015 Moto Guzzi Stelvio 1200 NTX?

The 2015 Moto Guzzi Stelvio 1200 NTX has a Seat height of 820 mm (32.3 inches) If adjustable, lowest setting..

Moto Guzzi Stelvio 1200 NTX - 2015 Specifications and Reviews

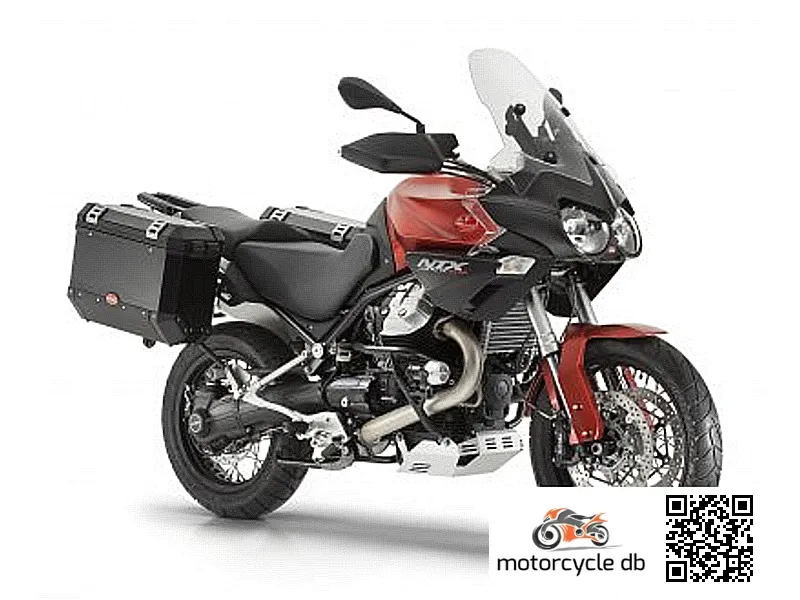

Name: 2015 Moto Guzzi Stelvio 1200 NTX
Brand: Moto Guzzi

The 2015 Moto Guzzi Stelvio 1200 NTX is a capable adventure tourer designed for riders seeking comfortable long-distance travel with genuine off-road capability. Its hallmark is the combination of a torquey 1200cc V-twin engine, advanced ATC traction control, and practical hard saddlebags for serious touring. Best suited to experienced riders who value Italian character and proven reliability on varied terrain.

⇄ Compare against another bike 📅 All Years

2015

Add/Upload pictures for this motorcycle

General information
Category	Super motard
Year	2015
Model	Moto Guzzi Stelvio 1200 NTX

Engine and Transmission Specifications
Exhaust system	Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3.
Driveline	Compact reactive cardan shaft drive system
Clutch	Single-disc with integrated anti-vibration buffer
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Oil & air
Ignition	Multipoint sequential electronic ignition
Fuel control	Overhead Valves (OHV)
Fuel system	Injection. Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle bodies, Weber IWP 189 injectors, lambda probe.
Valves per cylinder	4
Bore x Stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Torque	113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM
Power	105.00 HP (76.6 kW) @ 7250 RPM
Engine details	90° V-twin
Engine type	V2, four-stroke
Brakes, suspension, Frame and wheels
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre	150/70-R17
Front tyre	110/80-R19
Rear wheel travel	155 mm (6.1 inches)
Rear Suspension	Single arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob.
Front wheel travel	170 mm (6.7 inches)
Front Suspension	Completely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers.
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	High tensile steel tubular twin cradle
Physical measures and capacities
Reserve fuel capacity	7.00 litres (1.85 gallons)
Fuel capacity	32.00 litres (8.45 gallons)
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1,050 mm (41.3 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,480 mm (58.3 inches)
Alternate seat height	840 mm (33.1 inches) If adjustable, highest setting.
Seat height	820 mm (32.3 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	272.0 kg (599.7 pounds)

Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Comments	ATC traction control. Windshield.
Carrying capacity	Hard saddle bags
Starter	Electric
Color options	Dark green, orange

Performance Profile & Rider Fit

103.2 hp

Peak Power

0-60 mph

Best For

Track25%

City50%

Cornering60%

Daily Riding65%

Touring90%

Passenger78%

Rider Profile

Best For	This is a bike best suited to riders with at least intermediate experience, given its considerable weight and tall, adventure-oriented stance.
Purpose	The Stelvio 1200 NTX is built primarily as a long-distance adventure tourer, designed to eat up highway miles and handle light off-road excursions with cases mounted for extended trips.
Rider Fit	At 272 kg with an 820-840 mm seat height, shorter or less physically confident riders may find it demanding at low speeds or when maneuvering off the bike.
Character	It offers a torquey, characterful V-twin shaft-drive experience with a distinctly Italian touring flavor, prioritizing comfort and stability over outright sharpness.
Not Ideal For	This is not the right choice for riders seeking a lightweight, flickable machine for tight canyon carving or serious technical off-road trails.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2015 Moto Guzzi Stelvio 1200 NTX Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 820mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with balls of both feet on the 2015 Moto Guzzi Stelvio 1200 NTX, with a relaxed knee angle of around 130 degrees and a forward-leaning riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
