What category is the 2012 Moto Guzzi Stelvio 1200 NTX?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Category of Enduro / offroad.

What is the engine size of the 2012 Moto Guzzi Stelvio 1200 NTX?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Capacity: of 1151.00 ccm (70.23 cubic inches).

What type of engine does the 2012 Moto Guzzi Stelvio 1200 NTX have?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Engine type of V2, four-stroke.

What is the engine power of the 2012 Moto Guzzi Stelvio 1200 NTX?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Power of 105.00.

What is the torque of the 2012 Moto Guzzi Stelvio 1200 NTX?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Torque of 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800.

Is the 2012 Moto Guzzi Stelvio 1200 NTX air cooled or liquid cooled?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Cooling system of Oil & air.

How many gears does the 2012 Moto Guzzi Stelvio 1200 NTX have?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Gearbox of 6-speed.

How much does the 2012 Moto Guzzi Stelvio 1200 NTX weigh?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Weight incl. oil, gas, etc of 272.0 kg (599.7 pounds).

What is the seat height of the 2012 Moto Guzzi Stelvio 1200 NTX?

The 2012 Moto Guzzi Stelvio 1200 NTX has a Seat height of 820 mm (32.3 inches) If adjustable, lowest setting..

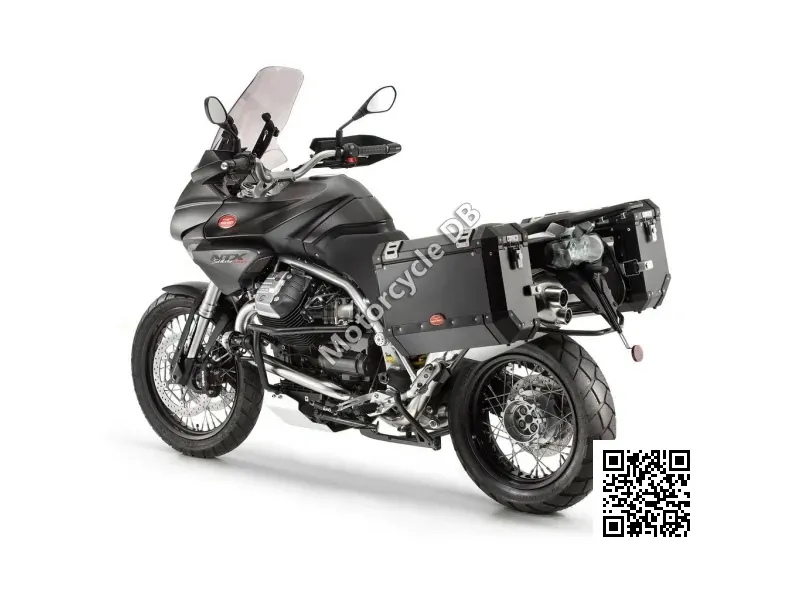

Moto Guzzi Stelvio 1200 NTX - 2012 Specifications and Reviews

Name: 2012 Moto Guzzi Stelvio 1200 NTX
Brand: Moto Guzzi
Rating: 5 (2 reviews)

The 2012 Moto Guzzi Stelvio 1200 NTX is a large-capacity adventure bike built for serious long-distance touring and light off-road exploration. Its 1151cc V-twin engine delivers solid power and torque across a wide rpm range, making it equally capable on highways and unpaved roads. Known for its distinctive Italian engineering, comfortable ergonomics, and reliable performance, the Stelvio suits experienced riders seeking versatile adventure capability.

⇄ Compare against another bike 📅 All Years

2012

Add/Upload pictures for this motorcycle

General information
Category	Enduro / offroad
Year	2012
Model	Moto Guzzi Stelvio 1200 NTX
Engine and Transmission Specifications
Exhaust system	Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3.
Clutch	Single-disc with integrated anti-vibration buffer
Gearbox	6-speed
Cooling system	Oil & air
Fuel control	OHV
Fuel system	Injection. Multipoint sequential electronic injection, Magneti Marelli IAW5A phased, alfa-n system; two 50mm throttle bodies, Weber IWP 189 injectors, lambda probe.
Valves per cylinder	4
Torque	113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800
Power	105.00
Engine details	90° V-twin
Engine type	V2, four-stroke
Capacity:	1151.00 ccm (70.23 cubic inches)

Brakes, suspension, Frame and wheels
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	150/70-R17
Front tyre dimensions	110/80-R19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Single arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob.
Front suspension travel	170 mm (6.7 inches)
Front suspension	Completely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers.
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	High tensile steel tubular twin cradle
Physical measures and capacities
Reserve fuel capacity	7.00 litres (1.85 gallons)
Fuel capacity	32.00 litres (8.45 gallons)
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1,050 mm (41.3 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,480 mm (58.3 inches)
Alternate seat height	840 mm (33.1 inches) If adjustable, highest setting.
Seat height	820 mm (32.3 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	272.0 kg (599.7 pounds)
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Black
Starter	Electric

Performance Profile & Rider Fit

103.2 hp

Peak Power

0-60 mph

Best For

Track25%

City50%

Cornering60%

Daily Riding65%

Touring90%

Passenger78%

Rider Profile

Best For	This is a bike best suited to riders with at least intermediate experience, given its considerable weight and tall, adventure-oriented stance.
Purpose	The Stelvio 1200 NTX is built primarily as a long-distance adventure tourer, designed to eat up highway miles and handle light off-road excursions with cases mounted for extended trips.
Rider Fit	At 272 kg with an 820-840 mm seat height, shorter or less physically confident riders may find it demanding at low speeds or when maneuvering off the bike.
Character	It offers a torquey, characterful V-twin shaft-drive experience with a distinctly Italian touring flavor, prioritizing comfort and stability over outright sharpness.
Not Ideal For	This is not the right choice for riders seeking a lightweight, flickable machine for tight canyon carving or serious technical off-road trails.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2012 Moto Guzzi Stelvio 1200 NTX Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 820mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with balls of both feet on the 2012 Moto Guzzi Stelvio 1200 NTX, with a cramped knee angle of around 70 degrees and a slightly forward riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
