What category is the 2016 MV Agusta Dragster 800 RR?

The 2016 MV Agusta Dragster 800 RR has a Category of Naked bike.

What type of engine does the 2016 MV Agusta Dragster 800 RR have?

The 2016 MV Agusta Dragster 800 RR has a Engine type of In-line three, four-stroke.

What is the engine power of the 2016 MV Agusta Dragster 800 RR?

The 2016 MV Agusta Dragster 800 RR has a Power of 140.00 HP (102.2 kW) @ 13100 RPM.

What is the torque of the 2016 MV Agusta Dragster 800 RR?

The 2016 MV Agusta Dragster 800 RR has a Torque of 86.00 Nm (8.8 kgf-m or 63.4 ft.lbs) @ 10100 RPM.

What is the top speed of the 2016 MV Agusta Dragster 800 RR?

The 2016 MV Agusta Dragster 800 RR has a Top speed of 245.0 km/h (152.2 mph).

Is the 2016 MV Agusta Dragster 800 RR air cooled or liquid cooled?

The 2016 MV Agusta Dragster 800 RR has a Cooling system of Oil & air.

How many gears does the 2016 MV Agusta Dragster 800 RR have?

The 2016 MV Agusta Dragster 800 RR has a Gearbox of 6-speed.

How much does the 2016 MV Agusta Dragster 800 RR weigh?

The 2016 MV Agusta Dragster 800 RR has a Dry weight of 168.0 kg (370.4 pounds).

What is the seat height of the 2016 MV Agusta Dragster 800 RR?

The 2016 MV Agusta Dragster 800 RR has a Seat height of 811 mm (31.9 inches) If adjustable, lowest setting..

MV Agusta Dragster 800 RR - 2016 Specifications and Reviews

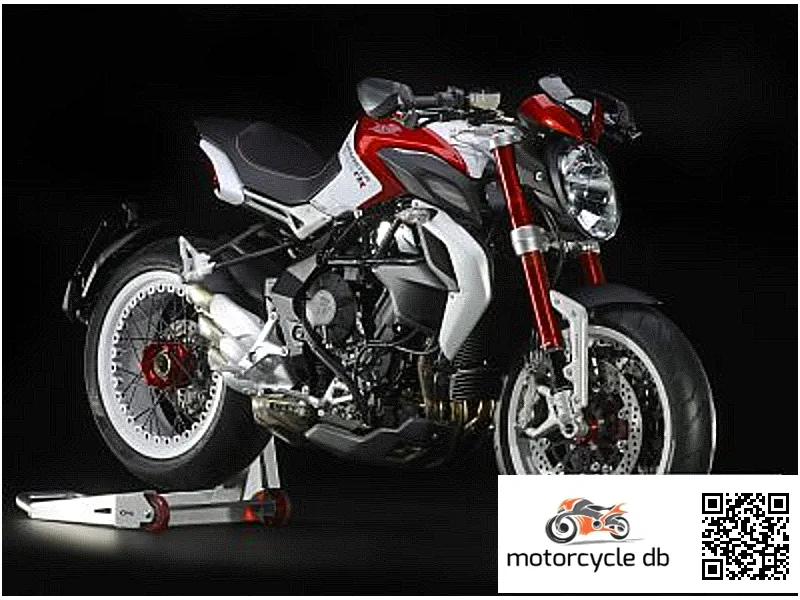

Name: 2016 MV Agusta Dragster 800 RR
Brand: MV Agusta
Rating: 5 (6 reviews)

The 2016 MV Agusta Dragster 800 RR is a lightweight naked bike designed for riders seeking sharp handling and aggressive styling. Powered by a potent engine delivering excellent power-to-weight ratio, it excels in urban riding and spirited cornering. Known for its distinctive Italian design and responsive ride-by-wire performance, it appeals to experienced riders prioritizing agility over comfort.

⇄ Compare against another bike 📅 All Years

2016

Add/Upload pictures for this motorcycle

General information
Category	Naked bike
Year	2016
Model	MV Agusta Dragster 800 RR
Engine and Transmission Specifications
Clutch	Wet, multi plate with slipper clutch
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Oil & air
Ignition	Integrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
Fuel control	Double Overhead Cams/Twin Cam (DOHC)
Fuel system	Injection. Mikuni Full Ride-By-Wire
Valves per cylinder	4
Bore x Stroke	79.0 x 54.3 mm (3.1 x 2.1 inches)
Compression	13.3:1
Max RPM RPM	13200
Top speed	245.0 km/h (152.2 mph)
Torque	86.00 Nm (8.8 kgf-m or 63.4 ft.lbs) @ 10100 RPM
Power	140.00 HP (102.2 kW) @ 13100 RPM
Engine type	In-line three, four-stroke
Brakes, suspension, Frame and wheels
Wheels	Aluminium alloy, spoked
Rear brakes diameter	220 mm (8.7 inches)
Rear brakes	Single disc. ABS. 4-piston
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. ABS. Floating disc, 4-piston
Rear tyre	200/50-ZR17
Front tyre	120/70-ZR17
Rear wheel travel	125 mm (4.9 inches)
Rear Suspension	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Front wheel travel	125 mm (4.9 inches)
Front Suspension	Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Trail	95 mm (3.7 inches)
Frame type	Mixed steel trellis and aluminium plates for high torsional rigidity

Physical measures and capacities
Fuel capacity	16.60 litres (4.39 gallons)
Wheelbase	1,380 mm (54.3 inches)
Ground clearance	149 mm (5.9 inches)
Overall width	825 mm (32.5 inches)
Overall length	2,060 mm (81.1 inches)
Seat height	811 mm (31.9 inches) If adjustable, lowest setting.
Power/weight ratio	0.8333 HP/kg
Dry weight	168.0 kg (370.4 pounds)

Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Comments	Also called Brutale Dragster 800 RR
Electrical	12 V - 8.6 Ah battery.
Starter	Electric
Color options	Red/white, Red/black

Performance Profile & Rider Fit

140 hp

Peak Power

0-60 mph

152.2 mph

Top Speed

Best For

Track88%

City65%

Cornering97%

Daily Riding50%

Touring30%

Passenger30%

Rider Profile

Best For	This bike rewards experienced riders who can manage a high-strung, aggressive engine and razor-sharp chassis with respect.
Purpose	Built for spirited backroad attacks and trackday-style cornering thrills rather than utilitarian commuting or distance travel.
Rider Fit	Demands an active, fit rider comfortable with a forward-leaning stance, firm suspension, and a tall, narrow seat.
Character	A fierce, exotic Italian street fighter with explosive top-end power, a howling triple, and supercar-level exclusivity.
Not Ideal For	Not suited for new riders, pillion-heavy touring, long-distance comfort seekers, or anyone wanting a soft, forgiving ride.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2016 MV Agusta Dragster 800 RR Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 811mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with both feet flat on the 2016 MV Agusta Dragster 800 RR, with a relaxed knee angle of around 120 degrees and a forward-leaning riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
