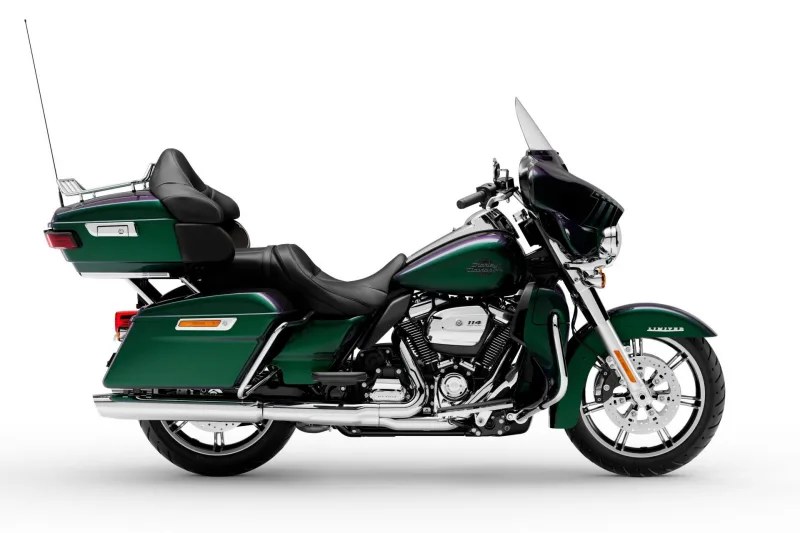

Harley-Davidson Ultra Limited - 2021 Specifications and Reviews

2023

2022

2021

2020

Add/Upload pictures for this motorcycle

General information
Price as new	3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Category	Touring
Year	2021
Model	Harley-Davidson Ultra Limited

Engine and Transmission Specifications
Exhaust system	2-1-2 dual exhaust with tapered mufflers
Greenhouse gases	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel consumption	5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Driveline	Chain, 34/46 ratio primary drive
Clutch	Multi-plate with diaphragm spring in oil bath
Transmission type	Belt (final drive)
Gearbox	6-speed
Cooling system	Liquid
Lubrication system	Dry sump
Fuel control	Double Overhead Cams/Twin Cam (DOHC)
Fuel system	Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore x Stroke	102.0 x 114.0 mm (4.0 x 4.5 inches)
Compression	10.5:1
Torque	165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 Revolutions">RPM
Power	100.0 Horsepower">HP (73.0 Kilowatt">kW)) @ 5000 Revolutions">RPM
Engine details	Twin-Cooledâ„¢ Milwaukee-EightÂ® 114 engine
Engine type	V2, four-stroke
Capacity:	1868.0 ccm (113.99 cubic inches)

Brakes, suspension, Frame and wheels
Wheels	Slicer II cast aluminum with clear coat
Rear brakes	Single disc. ABS. 4-piston
Front brakes	Double disc. ABS. 4-piston
Rear tire	180/55-B18
Front tire	130/70-B18
Rear Suspension	Twin shocks
Front Suspension	Telescopic fork
Trail	170 mm (6.7 inches)
Rake (fork angle)	26.0°
Physical measures and capacities
Oil capacity	4.70 litres (4.97 US quarts)
Fuel capacity	22.71 litres (6.00 US gallons)
Wheelbase	1625 mm (64.0 inches)
Ground clearance	135 mm (5.3 inches)
Overall length	2598 mm (102.3 inches)
Seat height	699 mm (27.5 inches) If adjustable, lowest setting.
Power/weight ratio	0.2505 HP/kg
Weight incl. oil, gas, etc	415.9 kg (917.0 pounds)
Dry weight	399.2 kg (880.0 pounds)
Other specs
Comments	Windshield. Infotainment. USB. Bluetooth.
Carrying capacity	Saddle bags, top box
Light	High beam, running lights, front fender running lights, directional lights,
Instruments	Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Starter	Electric
Color options	Vivid Black, Midnight Crimson Red, Billiard Red/Vivid Black, Gauntlet Grey Metallic/Vivid Black, Snake Venom Green, Gauntlet Grey Metallic, River Rock Grey Denim/Black Denim, Arctic White, Concord Purple

Rider Reviews

Total comments: 1

MotorcycleDB Review

The 2021 Harley-Davidson Ultra Limited is a powerful and stylish touring motorcycle that is sure to turn heads. With its iconic design and impressive performance, this bike is a standout in the world of touring motorcycles. The Ultra Limited features a high-output Twin-Cooled Milwaukee-Eight 114 engine, providing plenty of power for long rides on the open road. Its advanced technology and luxurious comfort features make it a top choice for riders looking for a premium touring experience. In addition to its performance and design, the 2021 Harley-Davidson Ultra Limited offers a smooth and comfortable ride, thanks to its responsive suspension and advanced chassis. The bike also comes equipped with practical features like a spacious top case and luggage capacity, making it perfect for long-distance travel. Overall, the 2021 Ultra Limited is a top-of-the-line touring motorcycle that delivers on both style and performance, making it a top choice for riders looking for the ultimate touring experience.
