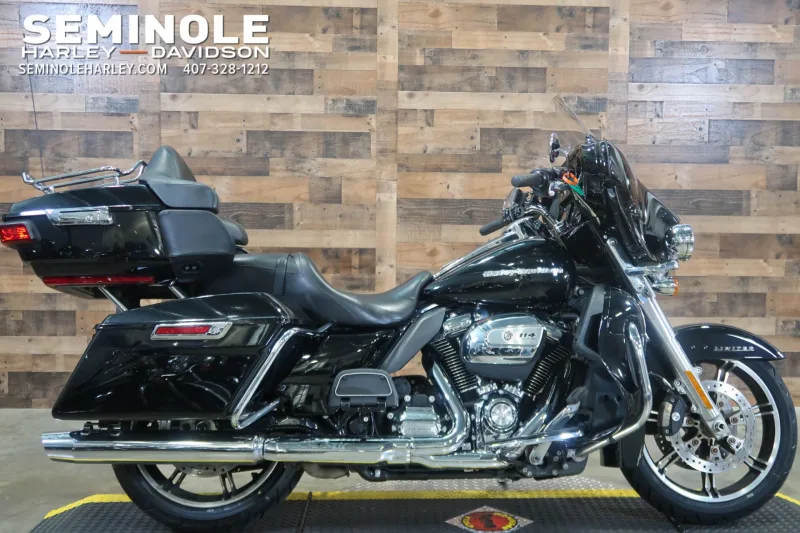

Harley-Davidson Ultra Limited - 2020 Specifications and Reviews
The 2020 Harley-Davidson Ultra Limited is a touring cruiser designed for long-distance riders seeking comfort and technology. Known for its spacious seating, integrated infotainment system with Bluetooth, windshield, and generous storage capacity, it excels on highway adventures. Premium features include cruise control, ABS, and comprehensive instrumentation for confident all-day riding.
General information | |
| Price as new | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Category | Touring |
| Year | 2020 |
| Model | Harley-Davidson Ultra Limited |
Engine and Transmission Specifications | |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Greenhouse gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Driveline | Chain, 34/46 ratio primary drive |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Transmission type | Belt (final drive) |
| Gearbox | 6-speed |
| Cooling system | Oil & air |
| Lubrication system | Dry sump |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Bore x Stroke | 102.0 x 114.0 mm (4.0 x 4.5 inches) |
| Compression | 10.5:1 |
| Torque | 165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 RPM |
| Power | 100.0 HP (73.0 kW) @ 5000 RPM |
| Engine details | Twin-Cooled™ Milwaukee-Eight® 114 engine |
| Engine type | V2, four-stroke |
| Capacity: | 1868.0 ccm (113.99 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Slicer II cast aluminum with clear coat |
| Rear brakes | Single disc. ABS. 4-piston |
| Front brakes | Double disc. ABS. 4-piston |
| Rear tire | 180/55-B18 |
| Front tire | 130/70-B18 |
| Rear Suspension | Twin shocks |
| Front Suspension | Telescopic fork |
| Trail | 170 mm (6.7 inches) |
| Rake (fork angle) | 26.0° |
| | |
Physical measures and capacities | |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Wheelbase | 1625 mm (64.0 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Overall length | 2600 mm (102.4 inches) |
| Seat height | 699 mm (27.5 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.2513 HP/kg |
| Weight incl. oil, gas, etc | 413.0 kg (910.5 pounds) |
| Dry weight | 398.0 kg (877.4 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Windshield. Infotainment. USB. Bluetooth. |
| Carrying capacity | Saddle bags, top box |
| Light | High beam, running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS |
| Instruments | Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators |
| Starter | Electric |
| Color options | Vivid Black, Barracuda Silver, River Rock Gray/Vivid Black, Midnight Blue/Barracuda Silver, Silver Pine/Spruce, Stiletto Red, Tahitian Teal, Vivid Black (with Black Finish), River Rock Gray (with Black Finish), Barracuda Silver Denim/Black Denim (with Bla |
Performance Profile & Rider Fit
100 hp
Peak Power
5.5s
0-60 mph
Best For
Track5%
City30%
Cornering40%
Daily Riding55%
Touring98%
Passenger98%
Rider Profile
| Best For | Best for experienced riders comfortable managing a very heavy machine at low speed; not a beginner bike despite its relaxed, torquey power delivery. |
| Purpose | A fully-loaded long-haul touring bagger built to devour interstate miles two-up with luggage, infotainment, cruise control and all-weather comfort. |
| Rider Fit | Massive 918 lb wet weight with a low 27.5in seat, big fairing, windshield, floorboards and hard bags; planted and comfortable but a handful when parking. |
| Character | Grand American touring flagship: torque-rich Milwaukee-Eight 114 V-twin, plush ride, effortless highway cruising and premium touring amenities. |
| Not Ideal For | Not for tight-canyon carvers, track riders, off-road use, budget-minded riders, or those wanting a nimble, lightweight commuter. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
Rider Reviews
Total comments: 1
MotorcycleDB Review
The 2020 Harley-Davidson Ultra Limited is a powerful and stylish touring motorcycle that offers an exceptional riding experience. With its Milwaukee-Eight 114 engine and advanced suspension system, the Ultra Limited delivers smooth and responsive performance on the open road. The bike's spacious saddlebags and comfortable seating make it perfect for long-distance trips, while its advanced infotainment system and impressive sound system add convenience and entertainment to the ride. In addition to its performance and comfort features, the 2020 Harley-Davidson Ultra Limited boasts a sleek and modern design that is sure to turn heads. With its classic Harley-Davidson styling and premium finishes, this motorcycle exudes luxury and sophistication. Whether you're a seasoned rider or a newcomer to the world of touring motorcycles, the Ultra Limited is a top-notch choice for those seeking a high-quality and enjoyable riding experience.Add a Comment
