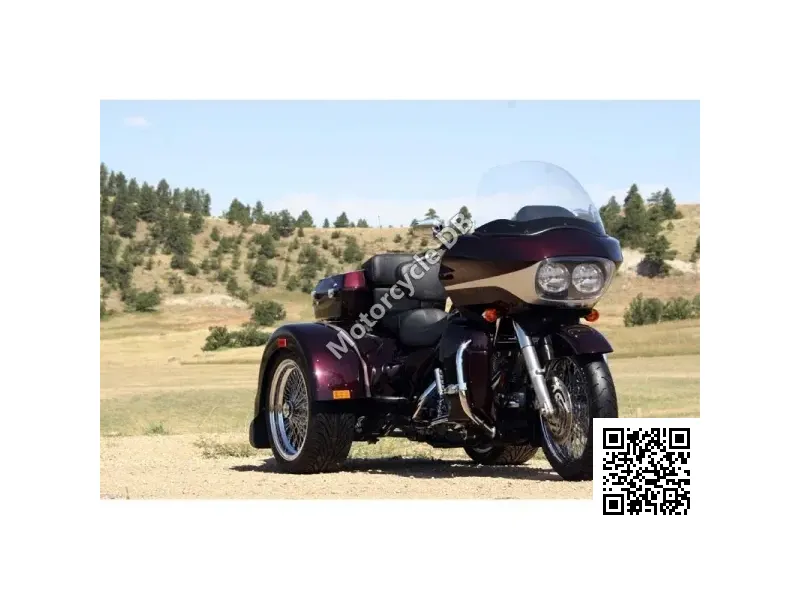

Lehman Trikes Renegade Road Glide - 2010 Specifications and Reviews

2010

General information
Category	Touring
Year	2010
Model	Lehman Trikes Renegade Road Glide
Engine and Transmission Specifications
Exhaust system	2-1-2 exhaust system
Greenhouse gases	116.0 CO
Fuel consumption	5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Clutch	9-plate, wet
Transmission type,final drive	Belt
Gearbox	6-speed
Cooling system	Air
Fuel system	Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore x stroke	95.3 x 111.1 mm (3.8 x 4.4 inches)
Compression	9.2:1
Torque	125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500
Engine type	V2, four-stroke
Capacity:	1584.00 ccm (96.66 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	300 mm (11.8 inches)
Rear brakes	Single disc
Front brakes diameter	300 mm (11.8 inches)
Front brakes	Double disc. Brembo triple-disc brake system
Rear tyre dimensions	180/65-B16
Front tyre dimensions	130/80-B17
Rear suspension travel	76 mm (3.0 inches)
Rear suspension	Air-adjustable
Front suspension travel	117 mm (4.6 inches)
Front suspension	41.3mm telescopic fork
Trail	173 mm (6.8 inches)
Rake (fork angle)	26.0°
Frame type	New mild steel, single spar rigid backbone with

Physical measures and capacities
Fuel capacity	22.71 litres (6.00 gallons)
Wheelbase	1,613 mm (63.5 inches)
Ground clearance	129 mm (5.1 inches)
Overall width	1,346 mm (53.0 inches)
Overall length	2,616 mm (103.0 inches)
Overall height	1,397 mm (55.0 inches)
Seat height	683 mm (26.9 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	455.0 kg (1,003.1 pounds)
Other specs
Starter	Electric
