Lehman Trikes Renegade Dyna - 2010 Specifications and Reviews

2010

General information
Category	Custom / cruiser
Year	2010

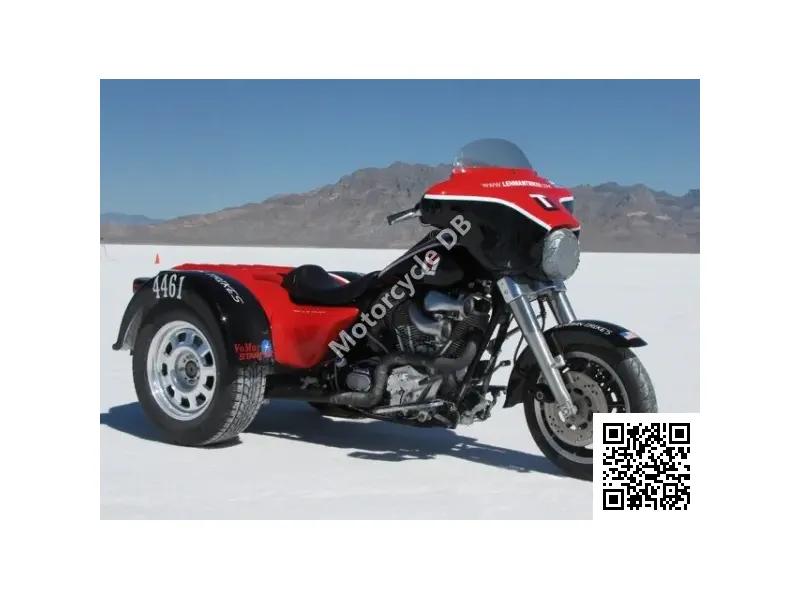

Model	Lehman Trikes Renegade Dyna

Engine and Transmission Specifications
Exhaust system	Chrome Staggered Shorty Dual exhaust
Greenhouse gases	116.0 CO
Fuel consumption	5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Transmission type,final drive	Belt
Gearbox	6-speed
Cooling system	Air
Fuel system	Injection. Electronic Sequential Port Fuel Injection
Bore x stroke	95.3 x 111.1 mm (3.8 x 4.4 inches)
Compression	9.2:1
Torque	123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125
Engine type	V2, four-stroke
Capacity:	1584.00 ccm (96.66 cubic inches)

Brakes, suspension, Frame and wheels
Rear brakes diameter	292 mm (11.5 inches)
Rear brakes	Single disc
Front brakes diameter	300 mm (11.8 inches)
Front brakes	Single disc
Rear tyre dimensions	160/70-B17
Front tyre dimensions	100/90-19
Rear suspension travel	104 mm (4.1 inches)
Rear suspension	Coil-over shock
Front suspension travel	127 mm (5.0 inches)
Front suspension	49mm with polished aluminium fork
Trail	119 mm (4.7 inches)
Rake (fork angle)	29.0°
Frame type	Mild steel, tubular frame; rectangular section backbone; stamped,
Physical measures and capacities
Fuel capacity	18.16 litres (4.80 gallons)
Wheelbase	1,664 mm (65.5 inches)
Ground clearance	135 mm (5.3 inches)
Overall width	1,346 mm (53.0 inches)
Overall length	2,692 mm (106.0 inches)
Overall height	1,188 mm (46.8 inches)
Seat height	675 mm (26.6 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	464.0 kg (1,022.9 pounds)
Other specs
Starter	Electric
