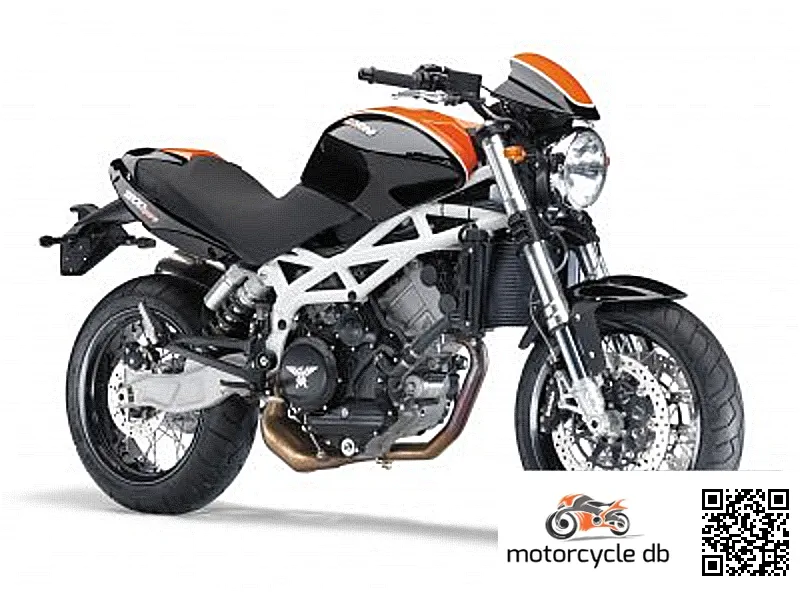

Moto Morini 1200 Sport - 2012 Specifications and Reviews
General information | |
| Category | Naked bike |
| Year | 2012 |
| Model | Moto Morini 1200 Sport |
| | |
Engine and Transmission Specifications | |
| Exhaust system | 3-way catalytic converter with oxygen sensor |
| Emission details | Euro 3. |
| Driveline | Primar 55:31. Final 17/40. |
| Clutch | Multiple-plate clutch in oil bath |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Ignition | I.A.W. electronic |
| Fuel control | DOHC |
| Fuel system | Injection. Magneti Marelli indirect injection. |
| Valves per cylinder | 4 |
| Bore x stroke | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Compression | 12.5:1 |
| Torque | 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 |
| Power | 117.00 |
| Engine details | Bialbero CorsaCorta 87 degree V-twin |
| Engine type | V2, four-stroke |
| Capacity: | 1187.00 ccm (72.43 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Excel spoke rims with aluminium channel |
| Rear brakes diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Bremo, 4-piston |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Bremo, 4-piston |
| Rear tyre dimensions | 180/55-R17 |
| Front tyre dimensions | 120/70-R17 |
| Rear suspension travel | 150 mm (5.9 inches) |
| Rear suspension | Single lateral shock absorber with fully adjustable piggy back tank |
| Front suspension travel | 150 mm (5.9 inches) |
| Front suspension | Marzocchi upside down fork |
| Trail | 100 mm (3.9 inches) |
| Rake (fork angle) | 24.5° |
| Frame type | Verlicchi high-strength steel tube trellis frame |
| | |
Physical measures and capacities | |
| Reserve fuel capacity | 4.50 litres (1.19 gallons) |
| Fuel capacity | 21.00 litres (5.55 gallons) |
| Wheelbase | 1,440 mm (56.7 inches) |
| Ground clearance | 162 mm (6.4 inches) |
| Overall width | 865 mm (34.1 inches) |
| Overall length | 2,170 mm (85.4 inches) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.5909 HP/kg |
| Dry weight | 198.0 kg (436.5 pounds) |
Other specs | |
| Comments | Made in China. |
| Wheelbase | 1,180 mm (46.5 inches) |
| Overall height | 1,120 mm (44.1 inches) |
| Rear tyre | 20/10-10 |
| Front tyre | 21/7-10 |
| Rear Suspension | Aluminum,air-cell adjustable |
| Front Suspension | Aluminum,air-cell adjustable |
| Valves per cylinder | 4 |
| Bore x Stroke | 70.0 x 70.0 mm (2.8 x 2.8 inches) |
| Top speed | 95.0 km/h (59.0 mph) |
| Capacity: | 250.00 ccm (15.26 cubic inches) |
| Color options | Blue/white/black, British racing green/yellow/white, black/orange/white |
| Factory warranty | 3 year in the UK. |
| Instruments | Digital/analogue |
| Starter | Electric |
