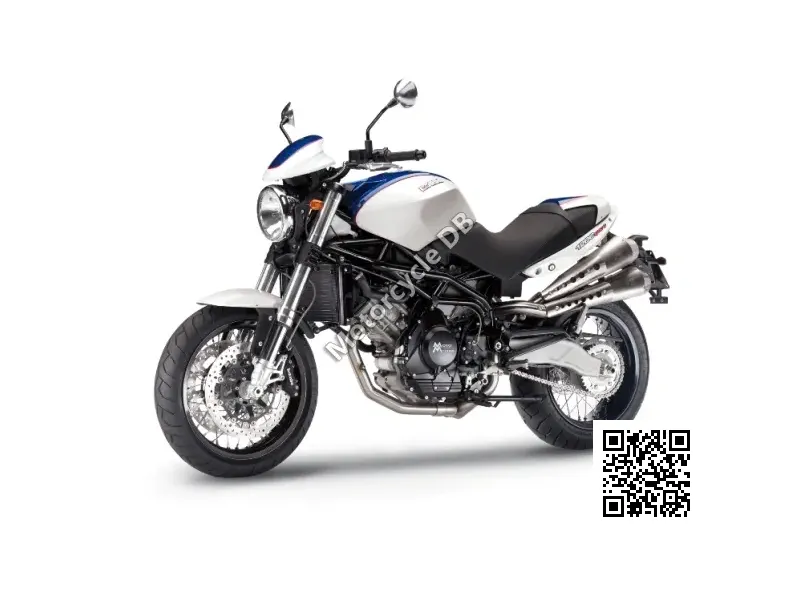

Moto Morini 1200 Sport - 2009 Specifications and Reviews

2009

General information
Category	Naked bike
Year	2009
Model	Moto Morini 1200 Sport
Engine and Transmission Specifications
Clutch	Multiple-plate
Cooling system	Liquid
Starter	Electric
Fuel control	DOHC
Valves per cylinder	4
Fuel system	Injection. Magneti Marelli
Bore x stroke	107.0 x 66.0 mm (4.2 x 2.6 inches)
Compression	12.5:1
Torque	102.00
Power	117.00
Stroke	4
Engine type	V2
Capacity:	1187.00 ccm (72.43 cubic inches)

Physical measures and capacities
Wheelbase	1,440 mm (56.7 inches)
Overall width	865 mm (34.1 inches)
Seat height	805 mm (31.7 inches) If adjustable, lowest setting.
Dry weight	198.0 kg (436.5 pounds)

Moto Morini 1200 Sport dimensions and frame
Exhaust system	Double silencer, 3-way catalytic converter and oxygen sensor. Euro 3.
Rear brakes diameter	220 mm (8.7 inches)
Rear brakes	Single disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc
Rear tyre dimensions	180/55-R17
Front tyre dimensions	120/70-R17
Rear suspension travel	130 mm (5.1 inches)
Rear suspension	With progressive motion and single Sachs shock absorber adjustable in extension, compression and spring pre-charge with singlering-nut.Enhanced piston and stretched counter-spring
Front suspension travel	130 mm (5.1 inches)
Front suspension	Marzocchi upside-down fully adjustable fork with 50 mm legs
Trail	100 mm (3.9 inches)
Rake (fork angle)	24.5°
Frame type	Verlicchi high-strength steel tube trellis frame
Speed and acceleration
Power/weight ratio	0.5909 HP/kg
Other specs
Color options	Blue/white/black, green/yellow/white, black/orange/white
Reserve fuel capacity	4.50 litres (1.19 gallons)
Fuel capacity	21.00 litres (5.55 gallons)
