Moto Guzzi Nevada - 2015 Specifications and Reviews

2015

General information
Category	Custom / cruiser
Year	2015

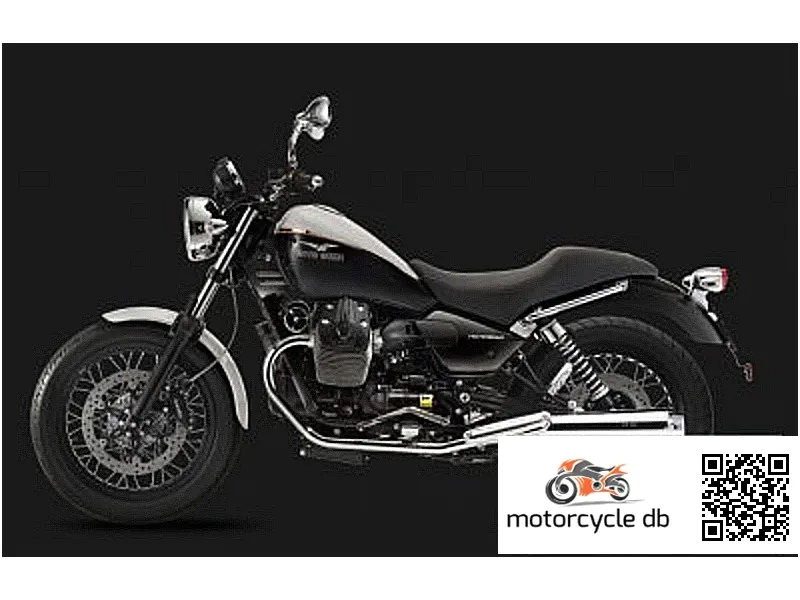

Model	Moto Guzzi Nevada

Engine and Transmission Specifications
Emission details	Three-way catalyzer with Lambda sensor
Clutch	Single disc, dry, with cush drive
Transmission type,final drive	Shaft drive (cardan)
Gearbox	5-speed
Cooling system	Air
Fuel control	Overhead Valves (OHV)
Fuel system	Injection
Valves per cylinder	2
Torque	54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 Revolutions">RPM
Power	47.60 Horsepower">HP (34.7 Kilowatt">kW)) @ 6800 Revolutions">RPM
Engine details	90° V-Twin. Light alloy push-rod.
Engine type	V2, four-stroke
Capacity:	744.00 ccm (45.40 cubic inches)

Brakes, suspension, Frame and wheels
Rear brakes diameter	260 mm (10.2 inches)
Rear brakes	Single disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Single disc. 4-piston calliper
Rear tyre	130/90-16
Front tyre	100/90-18
Rear wheel travel	130 mm (5.1 inches)
Rear Suspension	Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks
Front wheel travel	130 mm (5.1 inches)
Front Suspension	Hydraulic telescopic fork
Trail	138 mm (5.4 inches)
Rake (fork angle)	27.5°
Frame type	Detachable tubular duplex cradle in special high-strengh steel
Physical measures and capacities
Fuel capacity	14.00 litres (3.70 gallons)
Wheelbase	1,467 mm (57.8 inches)
Ground clearance	290 mm (11.4 inches)
Overall length	2,166 mm (85.3 inches)
Seat height	752 mm (29.6 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	196.0 kg (432.1 pounds)
Other specs
Starter	Electric
Color options	Black, green
