Moto Guzzi California Vintage - 2008 Specifications and Reviews

2008

2006

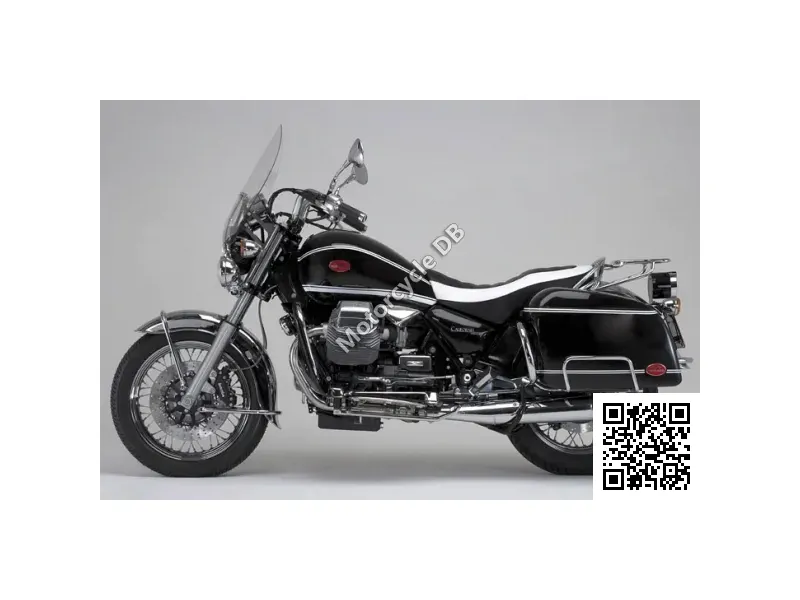

Moto Guzzi California Vintage 2008 12969 Thumb

General information
Category	Classic
Year	2008
Model	Moto Guzzi California Vintage

Engine and Transmission Specifications
Clutch	Dual disc dry with mechanical control
Transmission typefinal drive	Shaft drive (cardan)
Gearbox	5-speed
Cooling system	Air
Lubrication system	Forced lobes, with geared pump and pressure regulator
Starter	Electric
Ignition	Magneti Marelli IAW 15RC electronic digital ignition with inductive spark
Fuel system	Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel injection;
Bore x stroke	92.0 x 80.0 mm (3.6 x 3.1 inches)
Compression	9.8:1
Torque	94.00
Power	72.41
Stroke	4
Engine type	V2
Capacity:	1064.00 ccm (64.93 cubic inches)
Physical measures and capacities
Wheelbase	1,560 mm (61.4 inches)
Ground clearance	190 mm (7.5 inches)
Overall width	815 mm (32.1 inches)
Overall length	2,380 mm (93.7 inches)
Overall height	1,390 mm (54.7 inches)
Seat height	780 mm (30.7 inches) If adjustable, lowest setting.
Dry weight	263.0 kg (579.8 pounds)
Moto Guzzi California Vintage dimensions and frame
Exhaust system	Steel, 2 tubes connected to an expansion room, that is connected to 2 steel mufflers; three-way catalyzer with Lambda sensor (Euro 3)
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc
Rear tyre dimensions	140/70-VB17
Front tyre dimensions	110/90-18
Rear suspension travel	330 mm (13.0 inches)
Rear suspension	Swing arm with 2 hydraulic shock absorbers
Front suspension travel	330 mm (13.0 inches)
Front suspension	Marzocchi hydraulic telescopic fork, 45 mm, adjustable separately
Trail	116 mm (4.6 inches)
Rake (fork angle)	29.0°
Frame type	Detachable tubular duplex cradle in special high-strengh steel
Speed and acceleration
Power/weight ratio	0.2753 HP/kg

Other specs
Fuel capacity	19.00 litres (5.02 gallons)
