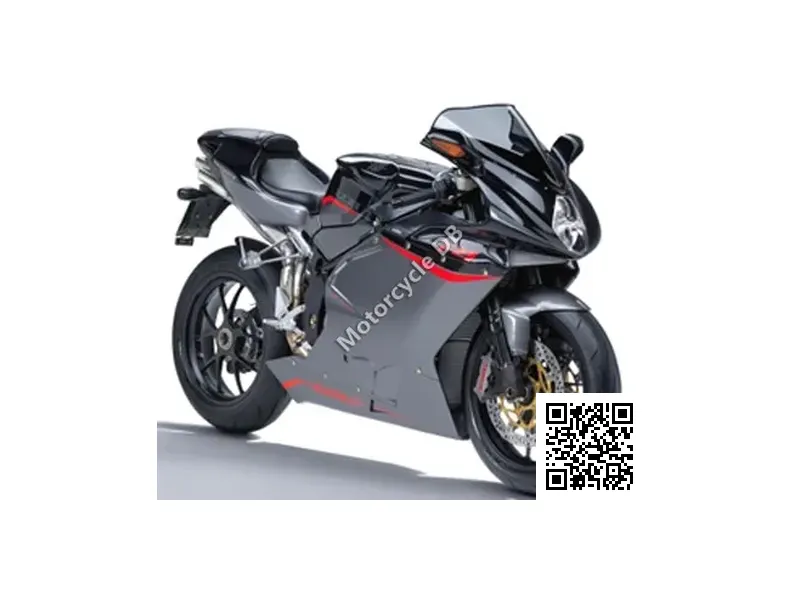

MV Agusta F4 RR 312 1078 - 2010 Specifications and Reviews

2010

General information
Category	Sport
Year	2010
Model	MV Agusta F4 RR 312 1078
Engine and Transmission Specifications
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Ignition	Weber Marelli 5SM ignition - injection integrated system; induction discharge electronic ignition, Multipoint sequential timed electronic injection
Fuel control	DOHC
Fuel system	Injection
Valves per cylinder	4
Bore x stroke	79.0 x 55.0 mm (3.1 x 2.2 inches)
Compression	13.1:1
Max RPM	13000
Top speed	300.0 km/h (186.4 mph)
Torque	124.00 Nm (12.6 kgf-m or 91.5 ft.lbs) @ 8200
Power	190.00
Engine type	In-line four, four-stroke
Capacity:	1078.30 ccm (65.80 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	210 mm (8.3 inches)
Rear brakes	Single disc. 4-piston
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. 4-piston
Rear tyre dimensions	190/55-ZR17
Front tyre dimensions	120/70-ZR17
Rear suspension travel	120 mm (4.7 inches)
Rear suspension	Progressive, single shock absorber with rebound compression damping and spring preload
Front suspension travel	130 mm (5.1 inches)
Front suspension	Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Trail	104 mm (4.1 inches)
Frame type	CrMo Steel tubular trellis (TIG welded)

Physical measures and capacities
Reserve fuel capacity	4.00 litres (1.06 gallons)
Fuel capacity	21.00 litres (5.55 gallons)
Wheelbase	1,408 mm (55.4 inches)
Ground clearance	130 mm (5.1 inches)
Overall length	2,007 mm (79.0 inches)
Seat height	810 mm (31.9 inches) If adjustable, lowest setting.
Power/weight ratio	0.9896 HP/kg
Dry weight	192.0 kg (423.3 pounds)

Other specs
Color options	Silver/red, black/white, black/silver
