What category is the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Category of Sport.

What is the engine size of the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Capacity: of 1078.00 ccm (65.78 cubic inches).

What type of engine does the 2009 MV Agusta F4 CC Claudio Castiglioni have?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Engine type of In-line four.

What is the engine power of the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Power of 200.00.

What is the torque of the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Torque of 125.00.

Is the 2009 MV Agusta F4 CC Claudio Castiglioni air cooled or liquid cooled?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Cooling system of Liquid.

How many gears does the 2009 MV Agusta F4 CC Claudio Castiglioni have?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Gearbox of 6-speed.

How much does the 2009 MV Agusta F4 CC Claudio Castiglioni weigh?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Dry weight of 187.0 kg (412.3 pounds).

What is the seat height of the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Seat height of 810 mm (31.9 inches) If adjustable, lowest setting..

What is the top speed of the 2009 MV Agusta F4 CC Claudio Castiglioni?

The 2009 MV Agusta F4 CC Claudio Castiglioni has a Top speed of 312.0 km/h (193.9 mph).

MV Agusta F4 CC Claudio Castiglioni - 2009 Specifications and Reviews

Name: 2009 MV Agusta F4 CC Claudio Castiglioni
Brand: MV Agusta

The 2009 MV Agusta F4 CC Claudio Castiglioni is a high-performance Italian sport bike designed for experienced riders seeking exotic machinery and heritage. Powered by a 1078cc inline-four producing 200 horsepower, it delivers aggressive acceleration and precise handling characteristics. Best known for its stunning styling, advanced fuel injection technology, and limited production run honoring MV Agusta's founder.

⇄ Compare against another bike 📅 All Years

2010

2009

❮❯

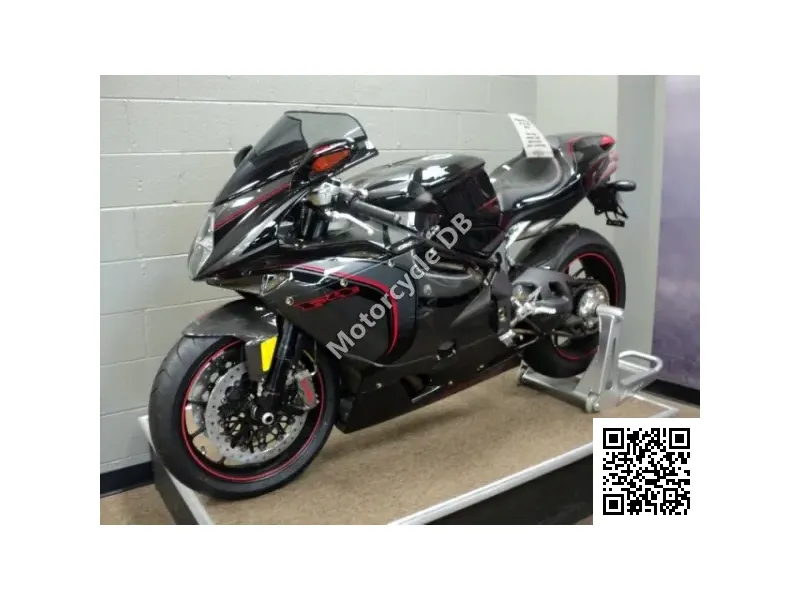

MV Agusta F4 CC Claudio Castiglioni 2009 21225 Thumb

Add/Upload pictures for this motorcycle

General information
Category	Sport
Year	2009
Model	MV Agusta F4 CC Claudio Castiglioni

Engine and Transmission Specifications
Clutch	Wet, multiplate
Transmission typefinal drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Starter	Electric
Fuel control	DOHC
Valves per cylinder	4
Fuel system	Injection. 'Weber Marelli' 5SM ignition - injection integrated system; induction discharge electronic ignition, 'Multipoint' electronic injection;
Bore x stroke	79.0 x 55.0 mm (3.1 x 2.2 inches)
Compression	13.0:1
Max RPM	13000
Torque	125.00
Power	200.00
Stroke	4
Engine type	In-line four
Capacity:	1078.00 ccm (65.78 cubic inches)
Physical measures and capacities
Wheelbase	1,408 mm (55.4 inches)
Ground clearance	130 mm (5.1 inches)
Overall width	685 mm (27.0 inches)
Overall length	2,007 mm (79.0 inches)
Seat height	810 mm (31.9 inches) If adjustable, lowest setting.
Dry weight	187.0 kg (412.3 pounds)
MV Agusta F4 CC Claudio Castiglioni dimensions and frame
Rear brakes diameter	210 mm (8.3 inches)
Rear brakes	Single disc. 4-piston caliper
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. 4-piston caliper
Rear tyre dimensions	190/55-ZR17
Front tyre dimensions	120/70-ZR17
Rear suspension travel	120 mm (4.7 inches)
Rear suspension	Type Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload (hydraulic control)
Front suspension travel	129 mm (5.1 inches)
Front suspension	Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Frame type	Type CrMo Steel tubular trellis, TIG welded.
Speed and acceleration
Power/weight ratio	1.0695 HP/kg
Top speed	312.0 km/h (193.9 mph)
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Black
Reserve fuel capacity	4.00 litres (1.06 gallons)
Fuel capacity	21.00 litres (5.55 gallons)

Performance Profile & Rider Fit

200 hp

Peak Power

2.9s

0-60 mph

193.9 mph

Top Speed

Best For

Track98%

City25%

Cornering95%

Daily Riding20%

Touring15%

Passenger10%

Rider Profile

Best For	This is an exotic, race-derived superbike that demands an expert-level, highly experienced rider comfortable with extreme power and razor-sharp handling.
Purpose	Built as an exclusive, limited-edition track and canyon weapon that prioritizes outright speed and cornering precision over practicality.
Rider Fit	The aggressive clip-on riding position, high footpegs, and firm suspension require good core strength, flexibility, and stamina, especially at low speeds or in traffic.
Character	A rider drawn to this machine values Italian exotica, exclusivity, and raw performance, treating the bike as a collectible piece of engineering art as much as a vehicle.
Not Ideal For	This is not suited for beginners, commuters, tall-touring riders, or anyone seeking comfort, pillion practicality, or off-road capability.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2009 MV Agusta F4 CC Claudio Castiglioni Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 810mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with both feet flat on the 2009 MV Agusta F4 CC Claudio Castiglioni, with a cramped knee angle of around 70 degrees and a forward-leaning riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
