MV Agusta F4 CC Claudio Castiglioni - 2010 Specifications and Reviews

2010

2009

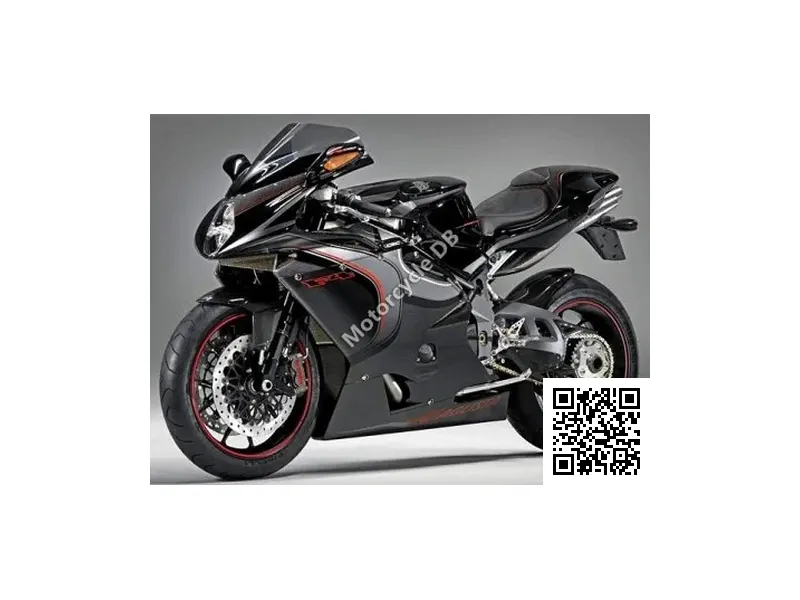

MV Agusta F4 CC Claudio Castiglioni 2010 20963 Thumb

General information
Category	Sport
Year	2010
Model	MV Agusta F4 CC Claudio Castiglioni
Engine and Transmission Specifications
Exhaust system	Lambda probe, catalyzer and one-piece exhaust system
Clutch	Wet, multiplate
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Fuel control	DOHC
Fuel system	Injection. Weber Marelli 5SM ignition - injection integrated system; induction discharge electronic ignition, Multipoint electronic injection;
Valves per cylinder	4
Bore x stroke	79.0 x 55.0 mm (3.1 x 2.2 inches)
Compression	13.0:1
Max RPM	13000
Top speed	312.0 km/h (193.9 mph)
Torque	125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 9000
Power	200.00
Engine type	In-line four, four-stroke
Capacity:	1078.00 ccm (65.78 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	210 mm (8.3 inches)
Rear brakes	Single disc. Bremo, 4-piston caliper
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. Bremo, 4-piston caliper
Rear tyre dimensions	190/55-ZR17
Front tyre dimensions	120/70-ZR17
Rear suspension travel	120 mm (4.7 inches)
Rear suspension	Type Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload (hydraulic control)
Front suspension travel	129 mm (5.1 inches)
Front suspension	Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Frame type	CrMo Steel tubular trellis, magnesium

Physical measures and capacities
Reserve fuel capacity	4.00 litres (1.06 gallons)
Fuel capacity	21.00 litres (5.55 gallons)
Wheelbase	1,408 mm (55.4 inches)
Ground clearance	130 mm (5.1 inches)
Overall width	685 mm (27.0 inches)
Overall length	2,007 mm (79.0 inches)
Seat height	810 mm (31.9 inches) If adjustable, lowest setting.
Power/weight ratio	1.0695 HP/kg
Dry weight	187.0 kg (412.3 pounds)

Other specs
Color options	Black
Starter	Electric
