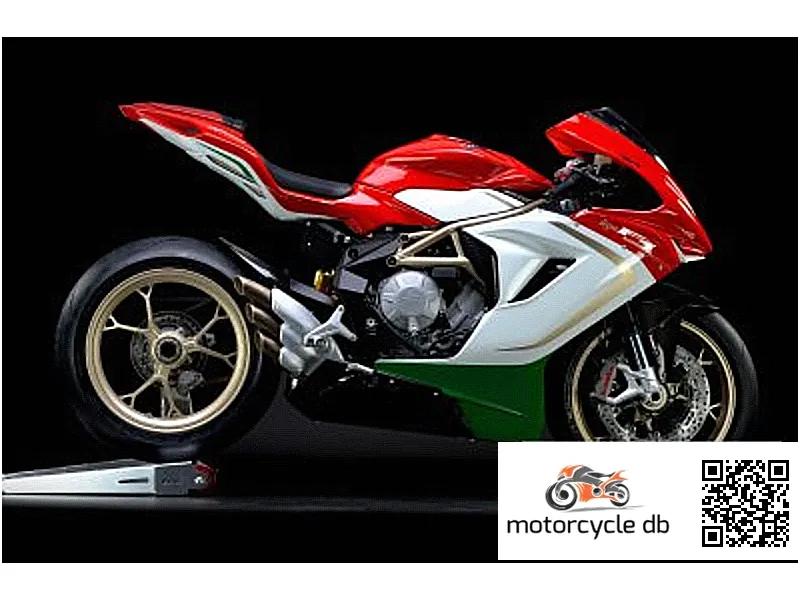

MV Agusta F3 800 Ago - 2016 Specifications and Reviews
The 2016 MV Agusta F3 800 Ago is a lightweight middleweight sportbike designed for agile, performance-minded riders seeking Italian heritage and exclusivity. This limited edition of just 300 bikes celebrates Ago Pagani with a sharp, responsive inline-three engine delivering 148 horsepower and exceptional handling through its compact 1,380mm wheelbase. Best known for its stunning retro livery options and razor-sharp cornering characteristics, it rewards skilled riders with precision and athleticism.
General information | |
| Category | Sport |
| Year | 2016 |
| Model | MV Agusta F3 800 Ago |
Engine and Transmission Specifications | |
| Clutch | Wet, multi-disc slipper clutch |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Wet sump |
| Ignition | Digital CDI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x Stroke | 79.0 x 54.3 mm (3.1 x 2.1 inches) |
| Compression | 13.0:1 |
| Max RPM RPM | 13500 |
| Top speed | 269.0 km/h (167.1 mph) |
| Torque | 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) @ 10600 RPM |
| Power | 148.00 HP (108.0 kW) @ 13000 RPM |
| Engine type | In-line three, four-stroke |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Aluminium alloy |
| Rear brakes diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Brembo with 2 pistons |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Brembo radial-type monobloc, with 4 piston |
| Rear tyre | 180/55-ZR17 |
| Front tyre | 120/70-ZR17 |
| Rear wheel travel | 123 mm (4.8 inches) |
| Rear Suspension | Sachs adjustable monoshock |
| Front wheel travel | 125 mm (4.9 inches) |
| Front Suspension | Marzocchi UPD Telescopic fork |
| Trail | 99 mm (3.9 inches) |
| Frame type | ALS Steel Tubular Trellis |
Physical measures and capacities | |
| Fuel capacity | 16.50 litres (4.36 gallons) |
| Wheelbase | 1,380 mm (54.3 inches) |
| Overall width | 725 mm (28.5 inches) |
| Overall length | 2,060 mm (81.1 inches) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.8655 HP/kg |
| Dry weight | 171.0 kg (377.0 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Limited edition of 300 bikes. |
| Starter | Electric |
| Color options | Red/white/green |
Performance Profile & Rider Fit
148 hp
Peak Power
3.1s
0-60 mph
167.1 mph
Top Speed
Best For
Track96%
City30%
Cornering97%
Daily Riding25%
Touring20%
Passenger15%
Rider Profile
| Best For | This is a demanding, race-bred machine best suited to experienced riders who are comfortable with aggressive geometry and razor-sharp responses. |
| Purpose | Built as a limited-edition homage to Giacomo Agostini, it exists primarily for high-performance sport riding and track days rather than practical transport. |
| Rider Fit | The low, forward-leaning seating position and high footpegs place significant weight on wrists and wrists and demand a fit, flexible rider for extended use. |
| Character | It rewards a precise, committed riding style with explosive top-end power, razor-quick handling, and race-derived brakes and suspension. |
| Not Ideal For | This is not the right bike for commuters, touring riders, passengers, or anyone seeking upright comfort and all-day ergonomics. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
