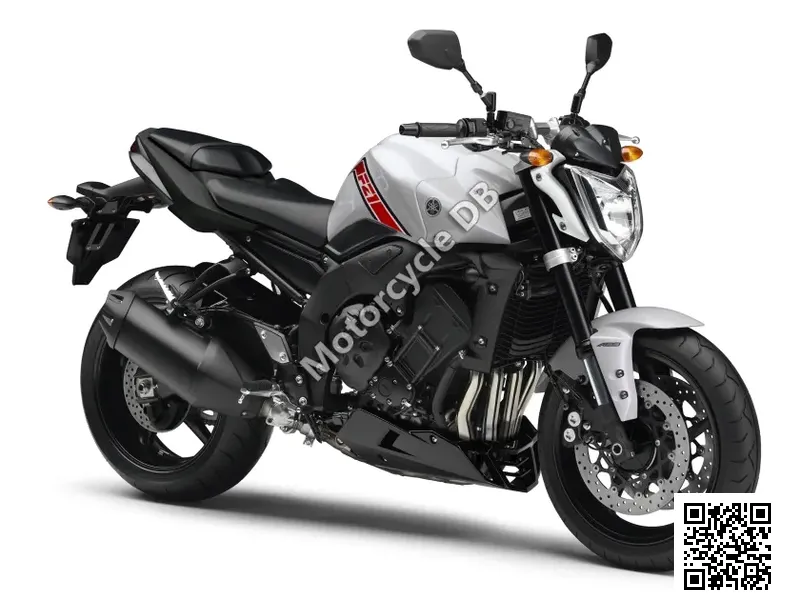

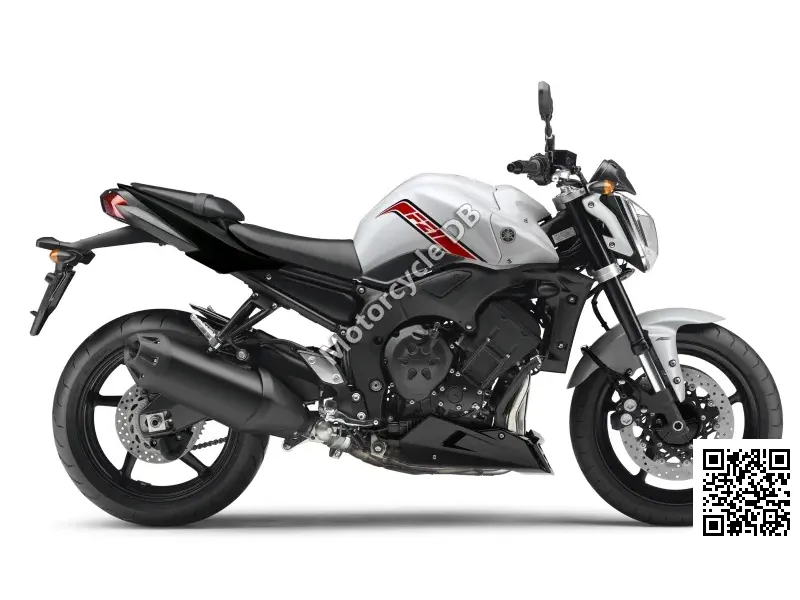

Yamaha FZ1 - 2011 Specifications and Reviews
General information | |
| Category | Naked bike |
| Year | 2011 |
| Model | Yamaha FZ1 |
Engine and Transmission Specifications | |
| Emission details | Three-way catalyst technology |
| Greenhouse gases | 155.9 CO |
| Fuel consumption | 6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
| Driveline | O-ring chain |
| Clutch | Wet, multiple-disc coil spring |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Wet sump |
| Ignition | Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
| Fuel control | DOHC |
| Fuel system | Injection |
| Valves per cylinder | 5 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Compression | 11.5:1 |
| Torque | 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 |
| Power | 147.51 |
| Engine type | In-line four, four-stroke |
| Capacity: | 998.00 ccm (60.90 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 245 mm (9.6 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Floating discs w/4-piston calipers |
| Rear tyre dimensions | 190/50-ZR17 |
| Front tyre dimensions | 120/70-ZR17 |
| Rear suspension travel | 130 mm (5.1 inches) |
| Rear suspension | Single shock |
| Front suspension travel | 130 mm (5.1 inches) |
| Front suspension | 43mm fork |
| Trail | 109 mm (4.3 inches) |
| Rake (fork angle) | 25.0° |
| Frame type | Aluminium die-cast, Diamond Shaped |
| | |
Physical measures and capacities | |
| Oil capacity | 3.70 litres (0.24 quarts) |
| Fuel capacity | 18.02 litres (4.76 gallons) |
| Wheelbase | 1,461 mm (57.5 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Overall length | 2,141 mm (84.3 inches) |
| Overall height | 1,204 mm (47.4 inches) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 220.9 kg (487.0 pounds) |
Other specs | |
| Light | Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light |
| Starter | Electric |
| Dry weight | 230.0 kg (507.0 pounds) |
| Rear tyre | 25/10-12 |
| Front tyre | 25/8-12 |
| Rear Suspension | Swing Arm, 7.1” w/ 5-way Preload Adjustment |
| Front Suspension | Independent Double Wishbone, 6.3” w/ 5-way Preload Adjustment |
| Bore x Stroke | 83.0 x 64.5 mm (3.3 x 2.5 inches) |
| Compression | 9.2:1 |
| Model | Yamaha Bruin 350 |
| Color options | Liquid Silver |
| Factory warranty | 1 Year (Limited Factory Warranty) |
