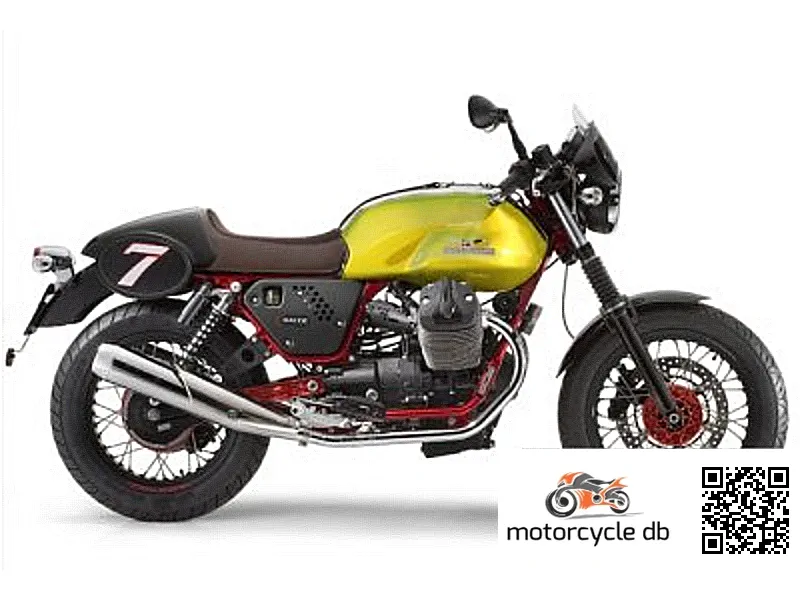

Moto Guzzi V7 Racer Verde Legnano SE - 2015 Specifications and Reviews

2015

General information
Category	Classic
Year	2015
Model	Moto Guzzi V7 Racer Verde Legnano SE
Engine and Transmission Specifications
Exhaust system	Three-way catalytic converter with double lambda probe
Driveline	C.A.R.C. Compact Reactive Shaft Drive
Clutch	Dry single plate with flexible couplings
Transmission type,final drive	Shaft drive (cardan)
Gearbox	5-speed
Lubrication system	Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Fuel system	Injection. Weber-Marelli
Torque	57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 Revolutions">RPM
Power	50.00 Horsepower">HP (36.5 Kilowatt">kW)) @ 6200 Revolutions">RPM
Engine details	90° V-twin
Engine type	V2, four-stroke
Brakes, suspension, Frame and wheels
Wheels	Spoked steel rims
Rear brakes diameter	260 mm (10.2 inches)
Rear brakes	Single disc. Floating disc. Two-piston calipers.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Single disc. Brembo caliper with 4 differentiated pistons
Rear tyre	130/80-17
Front tyre	100/90-18
Rear Suspension	Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Front Suspension	Telescopic hydraulic fork with 40 mm stanchions
Trail	109 mm (4.3 inches)
Rake (fork angle)	27.5°
Frame type	Double cradle tubular frame in ALS steel with detachable rear subframe

Physical measures and capacities
Reserve fuel capacity	2.50 litres (0.66 gallons)
Fuel capacity	22.00 litres (5.81 gallons)
Wheelbase	1,449 mm (57.0 inches)
Overall width	800 mm (31.5 inches)
Overall length	2,184 mm (86.0 inches)
Overall height	1,113 mm (43.8 inches)
Alternate seat height	803 mm (31.6 inches) If adjustable, highest setting.
Seat height	780 mm (30.7 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	198.0 kg (436.5 pounds)
Other specs
Comments	Special edition of 50 units sold in the US.
Factory warranty	Two-year manufacturer’s warranty and roadside assistance for one year
Starter	Electric
Color options	Green
