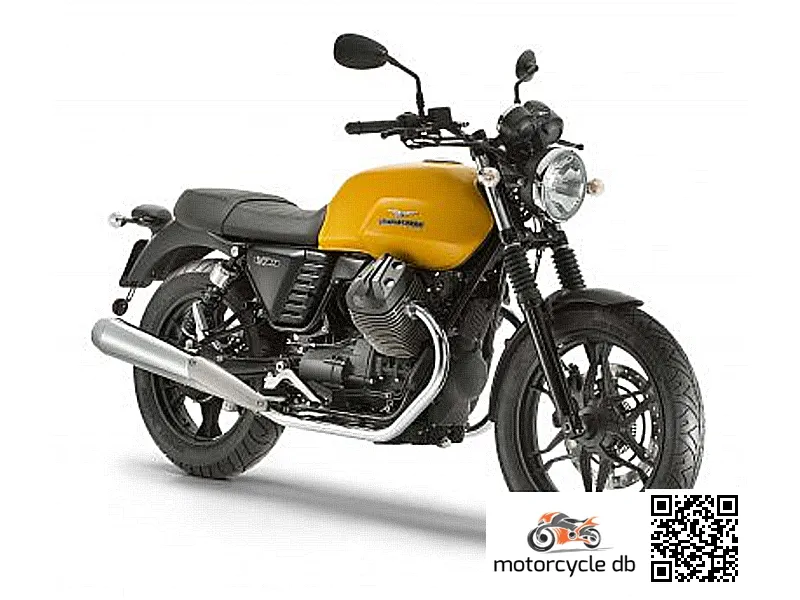

Moto Guzzi V7 II Stone - 2015 Specifications and Reviews
2015
General information | |
| Category | Classic |
| Year | 2015 |
| Model | Moto Guzzi V7 II Stone |
Engine and Transmission Specifications | |
| Exhaust system | Three-way catalytic converter with double lambda probe |
| Clutch | Dry single plate with flexible couplings |
| Transmission type,final drive | Shaft drive (cardan) |
| Gearbox | 5-speed |
| Cooling system | Air |
| Lubrication system | Forced circulation with lobe pump - circuit capacity: 1.78 Kg |
| Fuel system | Injection. Weber-Marelli electronic fuel injection. |
| Valves per cylinder | 2 |
| Bore x Stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Torque | 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 2800 Revolutions">RPM |
| Power | 48.00 Horsepower">HP (35.0 Kilowatt">kW)) @ 6200 Revolutions">RPM |
| Engine details | 90° V-twin |
| Engine type | V2, four-stroke |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Cast aluminum alloy multi-spoke black anodized Rims |
| Rear brakes diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Floating disc. Two-piston calipers. |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Single disc. Brembo caliper with 4 differentiated pistons |
| Rear tyre | 130/80-17 |
| Front tyre | 100/90-18 |
| Rear wheel travel | 96 mm (3.8 inches) |
| Rear Suspension | Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers |
| Front wheel travel | 110 mm (4.3 inches) |
| Front Suspension | Telescopic hydraulic fork with 40 mm stanchions |
| Trail | 109 mm (4.3 inches) |
| Frame type | Double cradle tubular frame in ALS steel with detachable rear subframe |
Physical measures and capacities | |
| Reserve fuel capacity | 3.79 litres (1.00 gallons) |
| Fuel capacity | 21.95 litres (5.80 gallons) |
| Wheelbase | 1,449 mm (57.0 inches) |
| Overall width | 800 mm (31.5 inches) |
| Overall length | 2,184 mm (86.0 inches) |
| Overall height | 1,113 mm (43.8 inches) |
| Alternate seat height | 803 mm (31.6 inches) If adjustable, highest setting. |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 179.0 kg (394.6 pounds) |
Other specs | |
| Factory warranty | Two-year manufacturer’s warranty and roadside assistance for one year |
| Starter | Electric |
| Color options | Black, red, yellow, grey |
