What category is the 2010 Moto Guzzi Stelvio 1200CC ABS?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Category of Enduro / offroad.

What is the engine size of the 2010 Moto Guzzi Stelvio 1200CC ABS?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Capacity: of 1151.00 ccm (70.23 cubic inches).

What type of engine does the 2010 Moto Guzzi Stelvio 1200CC ABS have?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Engine type of V2, four-stroke.

What is the engine power of the 2010 Moto Guzzi Stelvio 1200CC ABS?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Power of 108.35.

What is the torque of the 2010 Moto Guzzi Stelvio 1200CC ABS?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Torque of 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400.

Is the 2010 Moto Guzzi Stelvio 1200CC ABS air cooled or liquid cooled?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Cooling system of Oil & air.

How many gears does the 2010 Moto Guzzi Stelvio 1200CC ABS have?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Gearbox of 6-speed.

How much does the 2010 Moto Guzzi Stelvio 1200CC ABS weigh?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Dry weight of 214.0 kg (471.8 pounds).

How much does the 2010 Moto Guzzi Stelvio 1200CC ABS weigh?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Weight incl. oil, gas, etc of 251.0 kg (553.4 pounds).

What is the seat height of the 2010 Moto Guzzi Stelvio 1200CC ABS?

The 2010 Moto Guzzi Stelvio 1200CC ABS has a Seat height of 840 mm (33.1 inches) If adjustable, lowest setting..

Moto Guzzi Stelvio 1200CC ABS - 2010 Specifications and Reviews

Name: 2010 Moto Guzzi Stelvio 1200CC ABS
Brand: Moto Guzzi

The 2010 Moto Guzzi Stelvio 1200cc ABS is an adventure touring motorcycle designed for riders seeking authentic Italian character combined with practical long-distance capability. Known for its distinctive V-twin engine, comfortable seating position, and excellent ground clearance, it excels at exploring both paved roads and light off-road terrain. The ABS braking system and robust construction make it ideal for touring-focused riders who prioritize reliability and adventure over aggressive performance.

⇄ Compare against another bike 📅 All Years

2010

❮❯

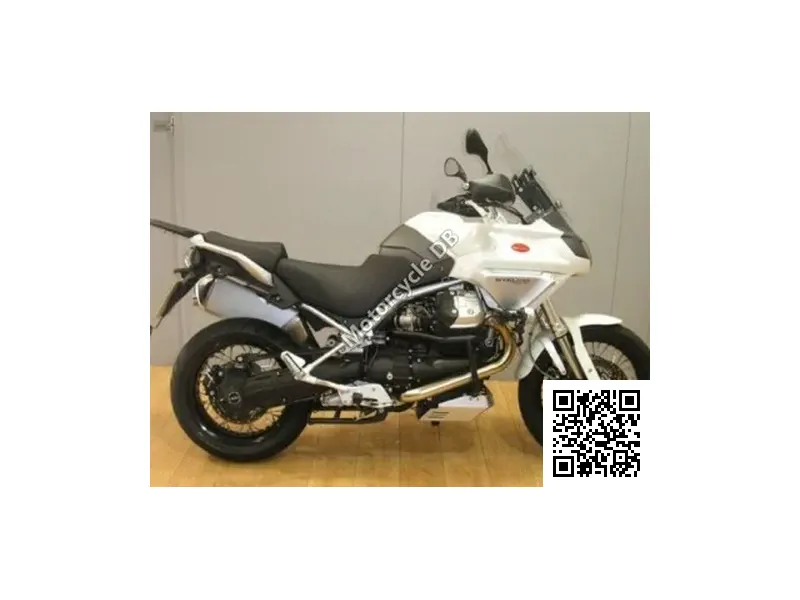

Moto Guzzi Stelvio 1200CC ABS 2010 17399 Thumb

Add/Upload pictures for this motorcycle

General information
Category	Enduro / offroad
Year	2010
Model	Moto Guzzi Stelvio 1200cc ABS

Engine and Transmission Specifications
Exhaust system	Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3.
Clutch	Single-disc with integrated anti-vibration buffer
Gearbox	6-speed
Cooling system	Oil & air
Ignition	Multipoint sequential electronic ignition, Magneti Marelli
Fuel system	Injection
Bore x stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Compression	11.0:1
Torque	108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400
Power	108.35
Engine type	V2, four-stroke
Capacity:	1151.00 ccm (70.23 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	180/55-R17
Front tyre dimensions	110/90-R19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Front suspension travel	170 mm (6.7 inches)
Front suspension	Upside down 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	Tubular in high-strength steel with integrated engine
Physical measures and capacities
Reserve fuel capacity	3.30 litres (0.87 gallons)
Fuel capacity	18.00 litres (4.76 gallons)
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1 mm (0.0 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,475 mm (58.1 inches)
Seat height	840 mm (33.1 inches) If adjustable, lowest setting.
Power/weight ratio	0.5063 HP/kg
Weight incl. oil, gas, etc	251.0 kg (553.4 pounds)
Dry weight	214.0 kg (471.8 pounds)
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Silver, red, black

Performance Profile & Rider Fit

108.4 hp

Peak Power

4.2s

0-60 mph

Best For

Track30%

City50%

Cornering55%

Daily Riding65%

Touring85%

Passenger75%

Rider Profile

Best For	This is a bike best suited to riders with intermediate to advanced experience who are comfortable managing a tall, heavy adventure-touring machine.
Purpose	It is built primarily as a long-distance adventure tourer that can handle light gravel and unpaved roads rather than a dedicated dirt or track machine.
Rider Fit	At 251 kg wet with an 840 mm seat height, shorter or lighter riders will find low-speed handling and picking it up if dropped physically demanding.
Character	The transverse V-twin, shaft-like Guzzi character, and torquey mid-range delivery give it a relaxed, mile-eating personality with a distinctive mechanical feel.
Not Ideal For	It is not the right choice for new riders seeking a light, nimble bike or for anyone wanting serious technical off-road capability.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2010 Moto Guzzi Stelvio 1200CC ABS Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 840mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with balls of both feet on the 2010 Moto Guzzi Stelvio 1200CC ABS, with a cramped knee angle of around 70 degrees and a slightly forward riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
