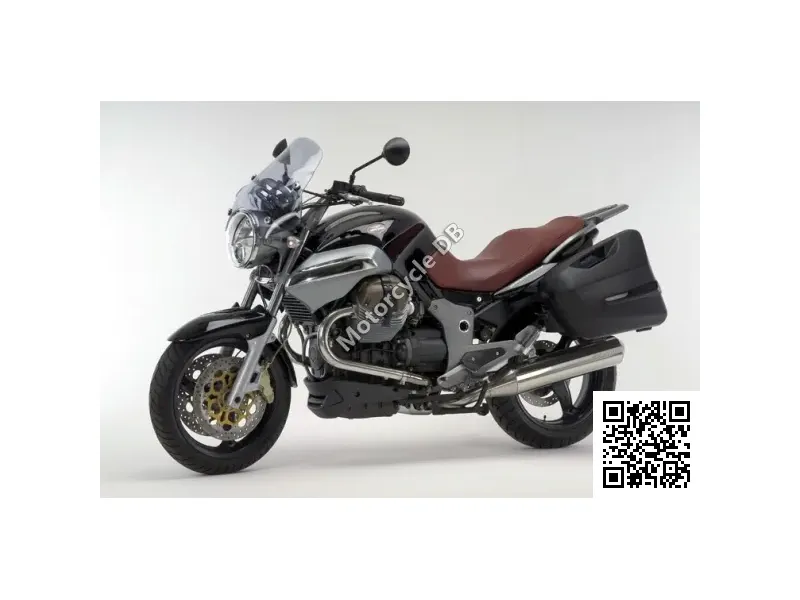

Moto Guzzi Breva 750 - 2010 Specifications and Reviews

2010

General information
Category	Naked bike
Year	2010
Model	Moto Guzzi Breva 750

Engine and Transmission Specifications
Exhaust system	Three-way catalyzer with Lambda sensor
Clutch	Single disc dry with cush drive
Transmission type,final drive	Shaft drive (cardan)
Gearbox	5-speed
Cooling system	Air
Lubrication system	Splash
Ignition	Magneti Marelli IAW 15RC electronic digital ignition with inductive spark
Fuel control	OHV
Fuel system	Injection. Weber-Marelli
Valves per cylinder	2
Bore x stroke	80.0 x 74.0 mm (3.1 x 2.9 inches)
Compression	9.6:1
Torque	54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600
Power	47.60
Engine type	V2, four-stroke
Capacity:	744.00 ccm (45.40 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	260 mm (10.2 inches)
Rear brakes	Single disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Single disc
Rear tyre dimensions	130/80-17
Front tyre dimensions	110/70-17
Rear suspension travel	95 mm (3.7 inches)
Rear suspension	Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks
Front suspension travel	130 mm (5.1 inches)
Front suspension	Marzocchi hydraulic telescopic fork
Trail	109 mm (4.3 inches)
Rake (fork angle)	27.5°
Frame type	Detachable tubular duplex cradle in special high-strengh steel
Physical measures and capacities
Reserve fuel capacity	5.00 litres (1.32 gallons)
Fuel capacity	18.00 litres (4.76 gallons)
Wheelbase	1,449 mm (57.0 inches)
Ground clearance	176 mm (6.9 inches)
Overall width	730 mm (28.7 inches)
Overall length	2,190 mm (86.2 inches)
Overall height	1,175 mm (46.3 inches)
Seat height	790 mm (31.1 inches) If adjustable, lowest setting.
Power/weight ratio	0.2615 HP/kg
Dry weight	182.0 kg (401.2 pounds)
Other specs
Color options	Black, red
