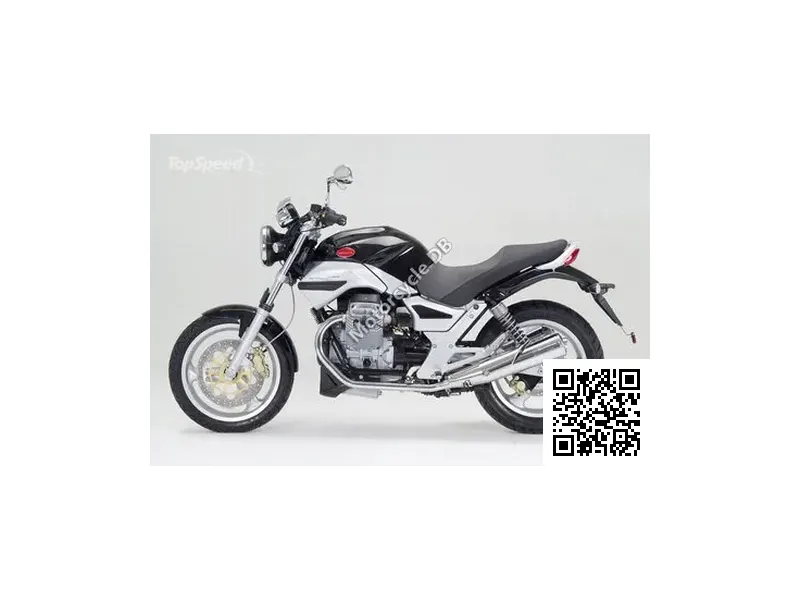

Moto Guzzi Breva 750 - 2009 Specifications and Reviews
General information | |
| Category | Naked bike |
| Year | 2009 |
| Model | Moto Guzzi Breva 750 |
Engine and Transmission Specifications | |
| Clutch | Single disc dry with cush drive |
| Transmission typefinal drive | Shaft drive (cardan) |
| Gearbox | 5-speed |
| Cooling system | Air |
| Lubrication system | By lobes with pressure pump |
| Starter | Electric |
| Ignition | Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
| Fuel control | OHV |
| Valves per cylinder | 2 |
| Fuel system | Injection. Weber-Marelli electric injection |
| Bore x stroke | 80.0 x 74.0 mm (3.1 x 2.9 inches) |
| Compression | 9.6:1 |
| Torque | 54.70 |
| Power | 47.60 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 744.00 ccm (45.40 cubic inches) |
| | |
Physical measures and capacities | |
| Wheelbase | 1,449 mm (57.0 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Overall width | 730 mm (28.7 inches) |
| Overall length | 2,170 mm (85.4 inches) |
| Overall height | 1,175 mm (46.3 inches) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Dry weight | 182.0 kg (401.2 pounds) |
| | |
Moto Guzzi Breva 750 dimensions and frame | |
| Exhaust system | Three-way catalyzer with Lambda sensor |
| Rear brakes diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Single disc |
| Rear tyre dimensions | 130/80-17 |
| Front tyre dimensions | 110/70-17 |
| Rear suspension travel | 95 mm (3.7 inches) |
| Rear suspension | Swinging arm in light cast alloy with two dampers, preload adjustable |
| Front suspension travel | 130 mm (5.1 inches) |
| Front suspension | Marzocchi hydraulic telescopic fork |
| Trail | 109 mm (4.3 inches) |
| Rake (fork angle) | 27.5° |
| Frame type | Detachable tubular duplex cradle in special high-strengh steel |
Speed and acceleration | |
| Power/weight ratio | 0.2615 HP/kg |
Other specs | |
| Color options | Black, red |
| Reserve fuel capacity | 4.00 litres (1.06 gallons) |
| Fuel capacity | 18.00 litres (4.76 gallons) |
