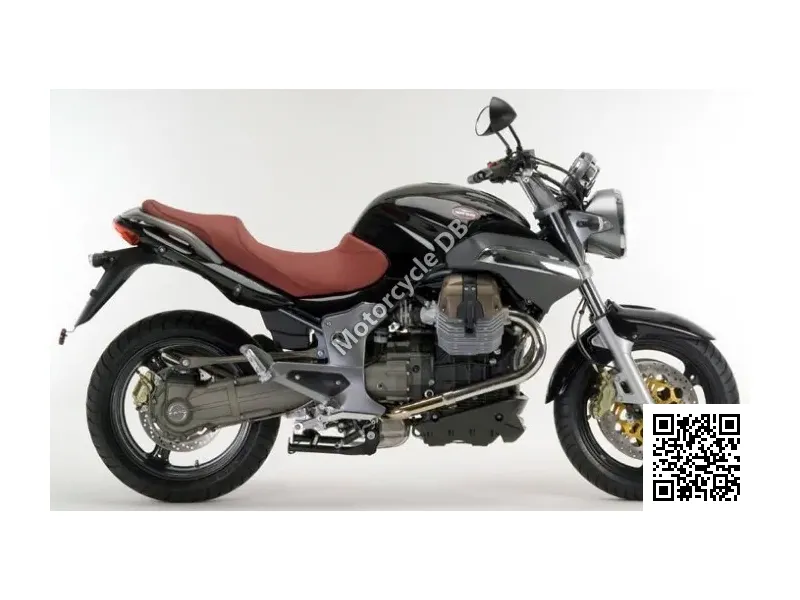

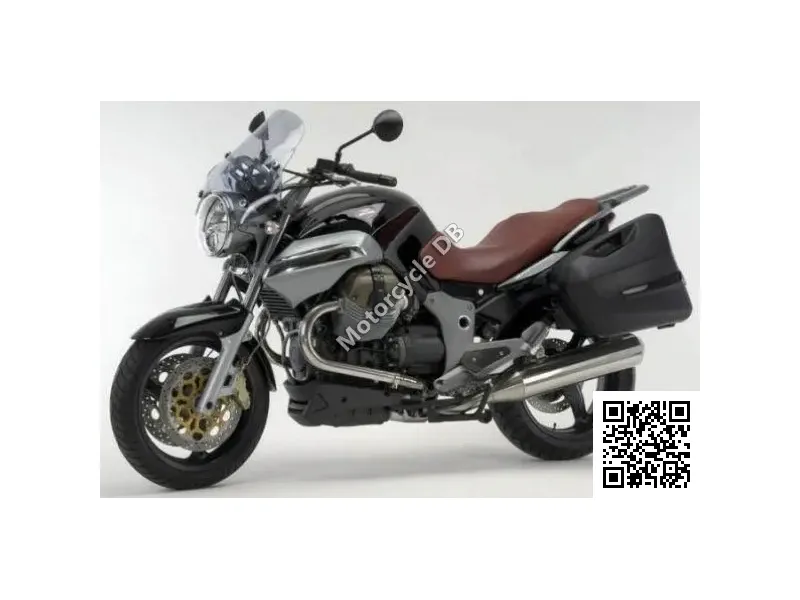

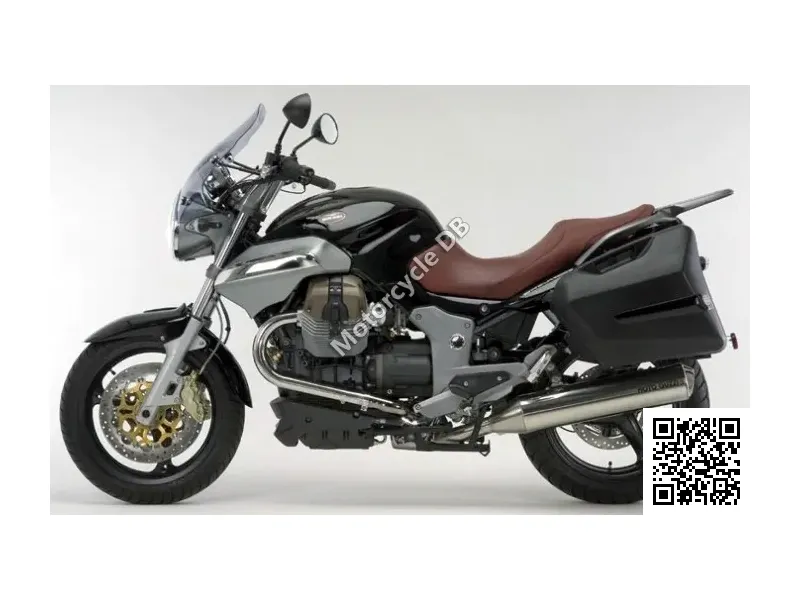

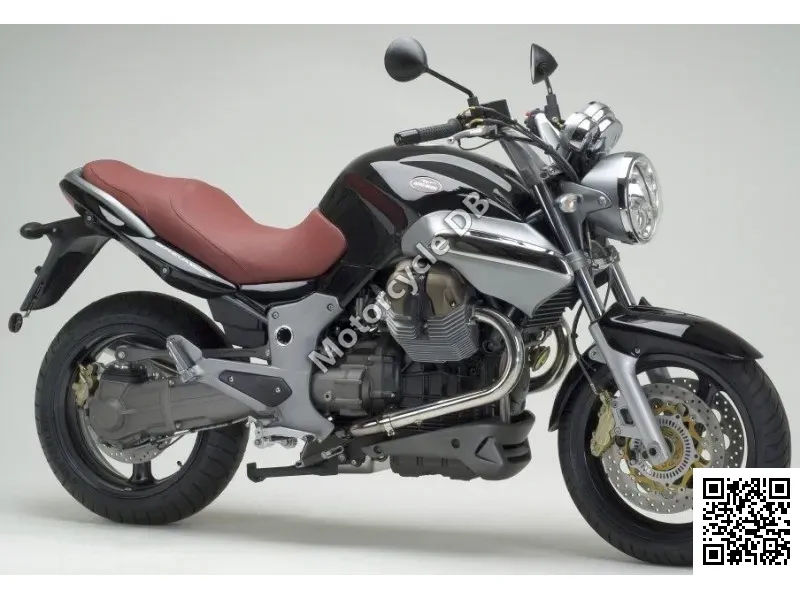

Moto Guzzi Breva 1100 - 2006 Specifications and Reviews
General information | |
| Category | Sport |
| Year | 2006 |
| Model | Moto Guzzi Breva 1100 |
Engine and Transmission Specifications | |
| Clutch | Dry |
| Cooling system | Air |
| Lubrication system | Wet sump, forced oil, cartridge filter |
| Starter | Electric |
| Ignition | Magneti Marelli IAW electronic digital |
| Fuel control | OHV |
| Valves per cylinder | 2 |
| Fuel system | Injection. Weber- Marelli electronic injection |
| Bore x stroke | 92.0 x 80.0 mm (3.6 x 3.1 inches) |
| Compression | 9.8:1 |
| Torque | 94.92 |
| Power | 91.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1064.00 ccm (64.93 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,490 mm (58.7 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Overall width | 810 mm (31.9 inches) |
| Overall length | 2,130 mm (83.9 inches) |
| Overall height | 1,310 mm (51.6 inches) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Dry weight | 233.0 kg (513.7 pounds) |
| | |
Moto Guzzi Breva 1100 dimensions and frame | |
| Exhaust system | Triple catalyzed with Lambda probe |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc |
| Rear tyre dimensions | 180/55-17 |
| Front tyre dimensions | 120/70-17 |
| Rear suspension travel | 140 mm (5.5 inches) |
| Rear suspension | Single sided swing arm suspension with progressive linkage |
| Front suspension travel | 119 mm (4.7 inches) |
| Front suspension | 43 mm fork, preload adjustable |
| Trail | 119 mm (4.7 inches) |
| Rake (fork angle) | 25.0° |
| Frame type | Detachable tubular duplex cradle |
Speed and acceleration | |
| Power/weight ratio | 0.3906 HP/kg |
| | |
Other specs | |
| Color options | Red, Grey, or Black |
| Fuel capacity | 23.99 litres (6.34 gallons) |
