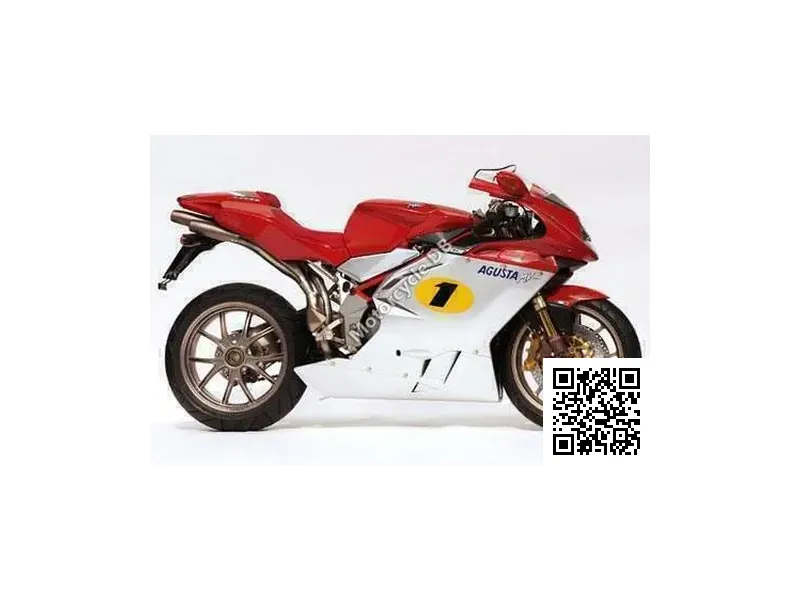

MV Agusta F4 Ago - 2009 Specifications and Reviews
The 2009 MV Agusta F4 Ago is a lightweight sport bike designed for experienced riders seeking Italian racing heritage and refined performance. Its 748cc four-cylinder engine delivers 146 horsepower with sharp handling and aggressive styling inspired by the legendary Ago nameplate. Best known for combining accessible mid-range displacement with superbike-level technology and exclusivity.
General information | |
| Category | Sport |
| Year | 2009 |
| Model | MV Agusta F4 Ago |
| | |
Engine and Transmission Specifications | |
| Clutch | Wet, multi - disc |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Fuel control | DOHC |
| Fuel system | Injection. Weber Marelli 1,6 M ignition - injection integrated system; induction discharge electronic ignition,Multipoint electronic injection |
| Valves per cylinder | 4 |
| Bore x stroke | 73.7 x 43.2 mm (2.9 x 1.7 inches) |
| Compression | 13.0:1 |
| Max RPM | 13900 |
| Top speed | 285.8 km/h (177.6 mph) |
| Torque | 82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) |
| Power | 146.00 |
| Engine type | In-line four, four-stroke |
| Capacity: | 748.93 ccm (45.70 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 210 mm (8.3 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 310 mm (12.2 inches) |
| Front brakes | Double disc |
| Rear tyre dimensions | 190/50-ZR17 |
| Front tyre dimensions | 120/65-ZR17 |
| Rear suspension | Progressive single shock absorber with rebound compression damping and spring preload |
| Front suspension | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Frame type | CrMo Steel tubular trellis and aluminium alloy |
Physical measures and capacities | |
| Reserve fuel capacity | 4.00 litres (1.06 gallons) |
| Fuel capacity | 21.00 litres (5.55 gallons) |
| Wheelbase | 1,398 mm (55.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.7644 HP/kg |
| Dry weight | 191.0 kg (421.1 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Red/white/yellow |
Performance Profile & Rider Fit
146 hp
Peak Power
2.9s
0-60 mph
177.6 mph
Top Speed
Best For
Track96%
City25%
Cornering94%
Daily Riding25%
Touring20%
Passenger15%
Rider Profile
| Best For | This is a machine for experienced, skilled riders who are comfortable with extreme power delivery and razor-sharp handling at speed. |
| Purpose | Built for track days, aggressive sport riding, and high-speed cornering rather than practical transportation. |
| Rider Fit | Demands a fit rider who can tolerate an aggressive forward-leaning riding position, high footpegs, and a firm, low seat over long stints. |
| Character | An exotic, race-derived Italian superbike with a screaming inline-four, exclusive styling, and a name that channels MV Agusta's racing heritage. |
| Not Ideal For | This is not a bike for beginners, commuters, tall touring riders, or anyone seeking comfort, storage, or a forgiving ride. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
