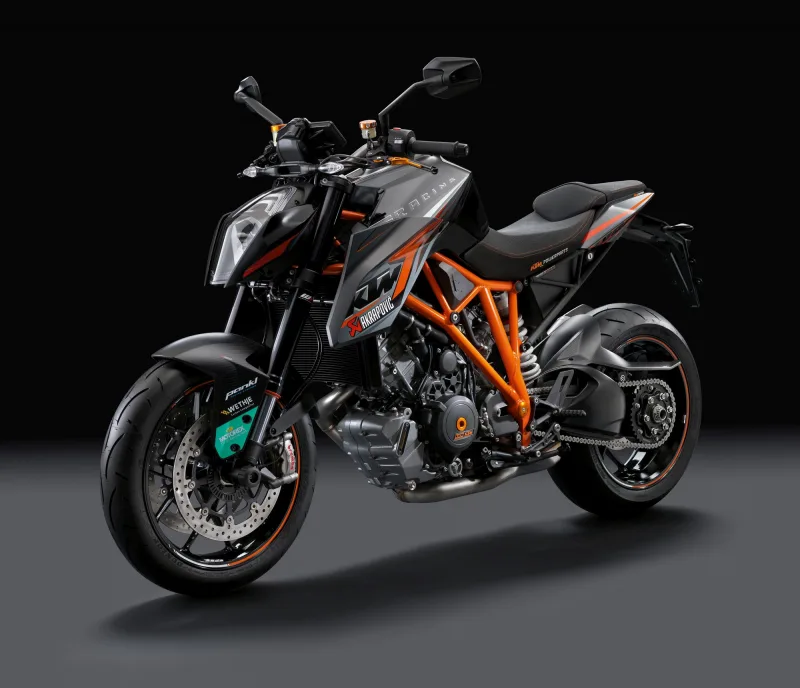

KTM 1290 Super Duke R ABS - 2015 Specifications and Reviews

2015

General information
Category	Naked bike
Year	2015
Model	KTM 1290 Super Duke R ABS

Engine and Transmission Specifications
Clutch	PASC™ anti-hopping clutch/ hydraulically operated
Transmission type,final drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Lubrication system	Forced oil lubrication with 3 rotor pumps
Fuel control	Double Overhead Cams/Twin Cam (DOHC)
Fuel system	Injection
Valves per cylinder	4
Bore x Stroke	108.0 x 71.0 mm (4.3 x 2.8 inches)
Power	180.00 Horsepower">HP (131.4 Kilowatt">kW))
Engine details	75° V arrangement
Engine type	V2, four-stroke
Capacity:	1301.00 ccm (79.39 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes diameter	240 mm (9.4 inches)
Rear brakes	Single disc. ABS. Two-piston brake caliper; fixed brake disc
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. ABS. Radially mounted four-piston brake calipers
Rear wheel travel	156 mm (6.1 inches)
Rear Suspension	WP Suspension Monoshock
Front wheel travel	125 mm (4.9 inches)
Front Suspension	WP Suspension Up Side Down
Frame type	Tubular space frame made from chrome molybdenum steel, powder-coated
Physical measures and capacities
Fuel capacity	18.00 litres (4.76 gallons)
Wheelbase	1,482 mm (58.3 inches)
Ground clearance	140 mm (5.5 inches)
Seat height	835 mm (32.9 inches) If adjustable, lowest setting.
Power/weight ratio	0.9524 HP/kg
Dry weight	189.0 kg (416.7 pounds)

Other specs
Comments	Traction Control. Ride-by-wire.
Starter	Electric
Color options	Orange, black
