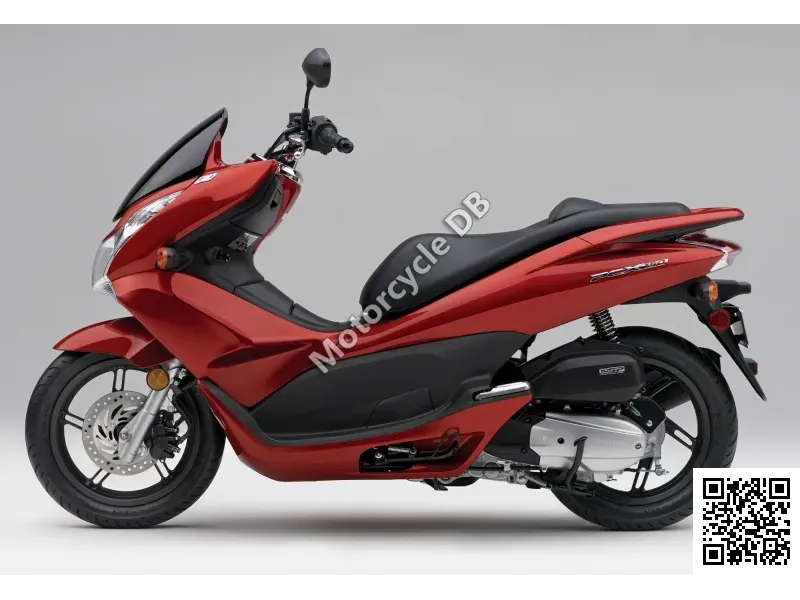

Honda PCX 125 - 2012 Specifications and Reviews
The 2012 Honda PCX 125 is an automatic scooter engineered for urban commuters seeking practical, fuel-efficient transportation. Known for its lightweight design at 124.4 kg and compact dimensions, it delivers reliable performance with electric starting and dual braking systems. The PCX 125 excels as a city runabout, offering comfortable seat height and excellent maneuverability in congested traffic.
General information | |
| Category | Scooter |
| Year | 2012 |
| Model | Honda PCX 125 |
Engine and Transmission Specifications | |
| Emission details | Meets current EPA standards. |
| Driveline | V-matic |
| Transmission type,final drive | Belt |
| Gearbox | Automatic |
| Cooling system | Liquid |
| Ignition | Digital with electronic advance |
| Fuel control | SOHC |
| Fuel system | Injection. PGM-FI with automatic enrichment |
| Valves per cylinder | 2 |
| Bore x stroke | 52.4 x 57.9 mm (2.1 x 2.3 inches) |
| Compression | 11.0:1 |
| Torque | 11.56 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 6000 |
| Power | 11.17 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 124.90 ccm (7.62 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | 5-spoke cast aluminium |
| Rear brakes diameter | 130 mm (5.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Front brakes diameter | 220 mm (8.7 inches) |
| Front brakes | Single disc. 3-piston caliper |
| Rear tyre dimensions | 100/90-14 |
| Front tyre dimensions | 90/90-14 |
| Rear suspension travel | 75 mm (3.0 inches) |
| Rear suspension | Twin suspension aluminium swingarm |
| Front suspension travel | 100 mm (3.9 inches) |
| Front suspension | 31mm hydraulic fork |
| Trail | 86 mm (3.4 inches) |
| Rake (fork angle) | 27.0° |
| | |
Physical measures and capacities | |
| Fuel capacity | 6.20 litres (1.64 gallons) |
| Wheelbase | 1,306 mm (51.4 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Overall width | 738 mm (29.1 inches) |
| Overall length | 1,917 mm (75.5 inches) |
| Overall height | 1,094 mm (43.1 inches) |
| Seat height | 761 mm (30.0 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 124.4 kg (274.3 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Grey, silver, black |
| Factory warranty | Year. Transferable, unlimited-mileage limited warranty |
| Starter | Electric |
Performance Profile & Rider Fit
12.1 hp
Peak Power
Best For
Track5%
City92%
Cornering40%
Daily Riding88%
Touring28%
Passenger45%
Rider Profile
| Best For | Ideal for beginners and license holders of any experience level thanks to its light weight and fully automatic transmission. |
| Purpose | Built for easy urban commuting, short errands, and weaving through city traffic rather than performance riding. |
| Rider Fit | Very low seat height and light 130 kg weight make it accessible to riders of nearly any size or strength. |
| Character | A practical, low-maintenance scooter that prioritizes convenience, fuel economy, and effortless daily usability over excitement. |
| Not Ideal For | Not suited to highway touring, spirited cornering, two-up long distance riding, or any kind of off-road use. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
