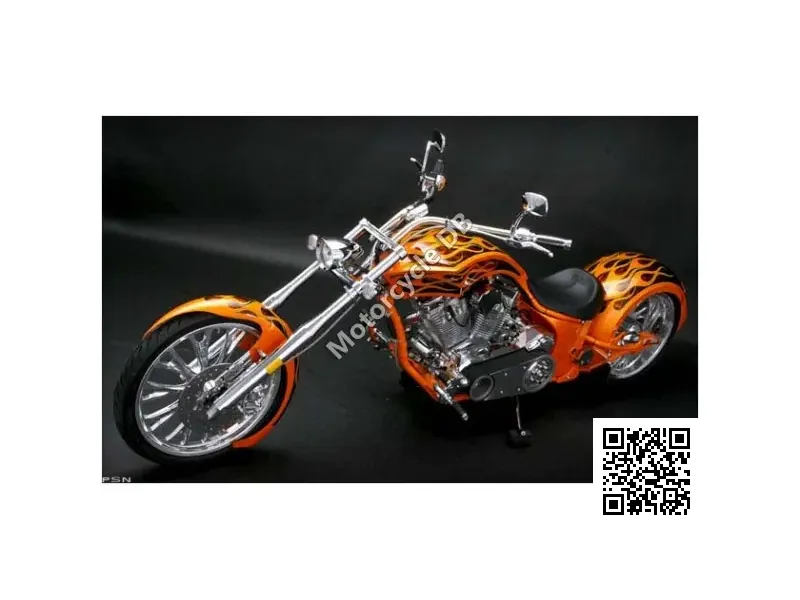

Big Bear Choppers Athena 114 X-Wedge EFI - 2010 Specifications and Reviews
The 2010 Big Bear Choppers Athena 114 X-Wedge EFI is a heavyweight custom cruiser built for riders seeking classic chopper styling with modern reliability. Powered by a massive 1868cc V-twin producing 153 Nm of torque, it delivers commanding low-end power through a six-speed belt drive. Known for its aggressive 40-degree rake and chrome detailing, this bike appeals to purists wanting authentic custom character with fuel injection dependability.
2010
General information | |
| Category | Custom / cruiser |
| Year | 2010 |
| Model | Big Bear Choppers Athena 114 X-Wedge EFI |
Engine and Transmission Specifications | |
| Exhaust system | Chrome Radius Tuned Exhaust |
| Transmission type,final drive | Belt |
| Gearbox | 6-speed |
| Lubrication system | S and S High volume oil pump |
| Fuel system | Injection. S and S Closed-Loop Electronic Fuel Injection |
| Bore x stroke | 104.8 x 108.0 mm (4.1 x 4.3 inches) |
| Torque | 153.22 Nm (15.6 kgf-m or 113.0 ft.lbs) |
| Power | 97.00 |
| Engine type | V2, four-stroke |
| Capacity: | 1868.24 ccm (114.00 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Single disc. BBC-PM 4-piston caliper BrakeDrive system |
| Front brakes | Single disc. PM. 4-piston calipers |
| Rear tyre dimensions | 300/80-18 |
| Front tyre dimensions | 90/80-21 |
| Rear suspension travel | 76 mm (3.0 inches) |
| Rear suspension | Progressive |
| Front suspension | BBC Smooth Mount Hidden Axle |
| Trail | 95 mm (3.8 inches) |
| Rake (fork angle) | 40.0° |
| Frame type | Softail type |
| | |
Physical measures and capacities | |
| Oil capacity | 4.70 litres (0.31 quarts) |
| Fuel capacity | 13.72 litres (3.62 gallons) |
| Wheelbase | 2,235 mm (88.0 inches) |
| Overall length | 2,921 mm (115.0 inches) |
| Seat height | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.3055 HP/kg |
| Dry weight | 317.5 kg (700.0 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
| Starter | Electric |
Performance Profile & Rider Fit
97 hp
Peak Power
5.8s
0-60 mph
Best For
Track10%
City30%
Cornering20%
Daily Riding45%
Touring40%
Passenger40%
Rider Profile
| Best For | This is best suited to an experienced rider comfortable with a long, heavy, low-slung custom chopper that demands deliberate, confident handling. |
| Purpose | Built as a bold styling statement and boulevard cruiser, this machine prioritizes big-inch torque and visual presence over outright speed or agility. |
| Rider Fit | The very low seat height and wide bars make mounting easy, but the extreme 40-degree rake and long wheelbase mean slow-speed maneuvering and U-turns require real upper-body effort and confidence. |
| Character | It rewards a rider who wants to be seen and heard, delivering strong low-end torque and a relaxed, chest-thumping V-twin rumble rather than sport-bike urgency. |
| Not Ideal For | This is not the right choice for a rider seeking nimble cornering, off-road capability, or a light, flickable machine for tight city streets. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
