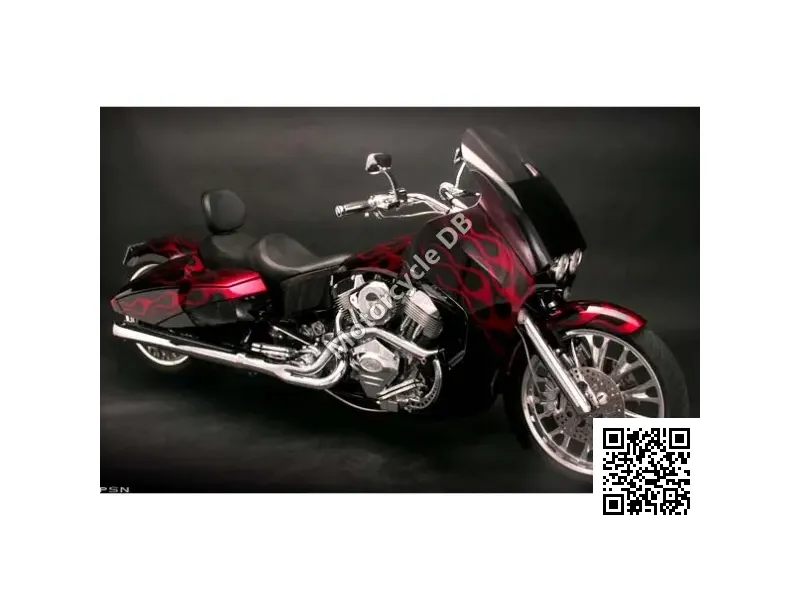

Big Bear Choppers Athena 114 X-Wedge - 2009 Specifications and Reviews
The 2009 Big Bear Choppers Athena 114 X-Wedge is a heavyweight custom cruiser powered by a massive 1868cc V-twin engine delivering 97 horsepower and 153 pound-feet of torque. Best suited for riders seeking aggressive styling and raw power, this chopper excels in low-end grunt and commanding road presence, making it ideal for cruising enthusiasts who prioritize statement-making aesthetics over nimbleness.
2009
General information | |
| Category | Custom / cruiser |
| Year | 2009 |
| Model | Big Bear Choppers Athena 114 X-Wedge |
Engine and Transmission Specifications | |
| Gearbox | 6-speed |
| Lubrication system | S and S High volume oil pump |
| Starter | Electric |
| Fuel system | Injection. S and S Electronic Fuel Injection |
| Bore x stroke | 104.8 x 108.0 mm (4.1 x 4.3 inches) |
| Torque | 153.22 |
| Power | 97.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1868.24 ccm (114.00 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 2,235 mm (88.0 inches) |
| Overall length | 2,921 mm (115.0 inches) |
| Seat height | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Dry weight | 317.5 kg (700.0 pounds) |
| | |
Big Bear Choppers Athena 114 X-Wedge dimensions and frame | |
| Rear brakes | Single disc. BBC-PM 4-piston caliper BrakeDrive system |
| Front brakes | Single disc. PM. 4-piston calipers |
| Rear tyre dimensions | 300/80-18 |
| Front tyre dimensions | 90/80-21 |
| Rear suspension travel | 76 mm (3.0 inches) |
| Rear suspension | Progressive |
| Front suspension | BBC Smooth Mount Hidden Axle |
| Trail | 95 mm (3.8 inches) |
| Rake (fork angle) | 40.0° |
| Frame type | Softail type |
Speed and acceleration | |
| Power/weight ratio | 0.3055 HP/kg |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
| Oil capacity | 4.70 litres (0.31 quarts) |
| Fuel capacity | 13.72 litres (3.62 gallons) |
Performance Profile & Rider Fit
97 hp
Peak Power
5.5s
0-60 mph
Best For
Track10%
City30%
Cornering20%
Daily Riding45%
Touring45%
Passenger40%
Rider Profile
| Best For | Best suited to riders who already have experience with heavy, long, low custom choppers and are comfortable managing a big machine at low speeds. |
| Purpose | Built for boulevard cruising and show-stopping style rather than outright performance or long-distance touring. |
| Rider Fit | The very low seat height is friendly to shorter riders, but the extreme rake, long wheelbase, and 317kg weight demand strength and confidence at parking-lot speeds and in tight turns. |
| Character | A bold, attention-grabbing hardtail-style custom with a big V-twin torque feel, aimed at riders who want presence and attitude over agility. |
| Not Ideal For | Not a good fit for riders seeking sporty handling, off-road capability, or a nimble everyday commuter. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
