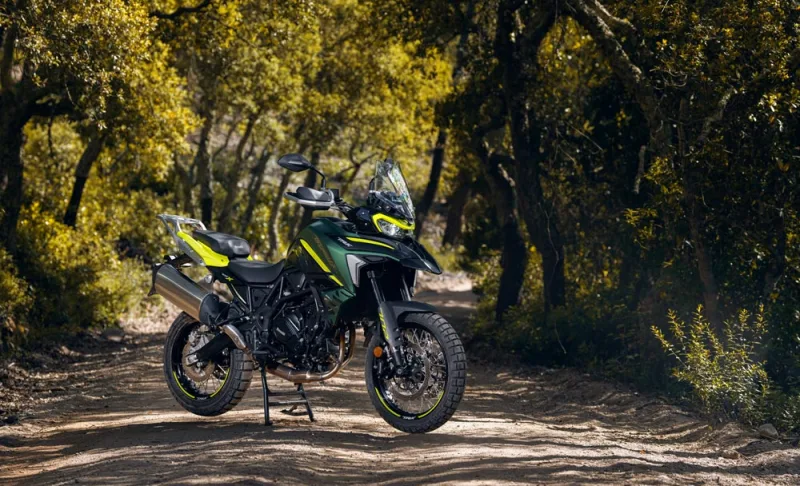

Benelli Trk 502 X - 2025 Specifications and Reviews
The 2025 Benelli TRK 502 X is an accessible adventure-touring motorcycle designed for riders seeking practical, real-world versatility without extreme performance demands. Known for its upright riding position, manageable weight, and dependable mid-range engine, it excels at comfortable highway cruising and light off-road exploration. Its low seat height and user-friendly handling make it ideal for taller riders and those transitioning to adventure bikes.
General information | |
| Color Options | Black, White, Gray, Green, Yellow |
| Category | Allround |
| Model | Benelli TRK 502 X |
| | |
Engine and Transmission Specifications | |
| Starting | Electric |
| Emission Details | Euro 5 |
| Emission | 95.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel Consumption | 4.10 litres/100 km (24.4 km/l or 57.37 mpg) |
| Clutch | Multidisc wet |
| Final Drive | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling System | Liquid |
| Ignition | T.C.I |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) |
| Induction | Injection. Electronic fuel injection with double throttle body ø 37 mm |
| Valves Per Cylinder | 4 |
| Bore x Stroke | 69.0 x 66.8 mm (2.7 x 2.6 inches) |
| Compression Ratio | 11.5:1 |
| Max Torque | 46.0 Nm (4.7 kgf-m or 33.9 ft.lbs) @ 6000 RPM |
| Capacity: | 500.0 ccm (30.51 cubic inches) |
| | |
Physical measures and capacities | |
| Fuel Capacity | 20.00 litres (5.28 US gallons) |
| Wheelbase | 1505 mm (59.3 inches) |
| Ground Clearance | 210 mm (8.3 inches) |
| Overall Width | 915 mm (36.0 inches) |
| Overall Length | 2220 mm (87.4 inches) |
| Overall Height | 1480 mm (58.3 inches) |
| Seat Height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Power/Weight Ratio | 0.2235 HP/kg |
| Wet Weight | 235.0 kg (518.1 pounds) |
| Dry Weight | 213.0 kg (469.6 pounds) |
Benelli Trk 502 X dimensions and frame | |
| Wheels | Rim and hub in Aluminum alloy with iron spokes |
| Rear Brakes | Single disc. Single piston calliper, ABS |
| Brake Disc Diameter | 260 mm (10.2 inches) |
| Front Brakes | Double disc. 2-piston, ABS |
| Rear Tyre | 150/70-R17 |
| Front Tyre | 110/80-R19 |
| Rear Wheel Travel | 45 mm (1.8 inches) |
| Rear Suspension | Mono-shock-absorber |
| Front Wheel Travel | 140 mm (5.5 inches) |
| Front Suspension | Telescopic forks |
| Frame | Steel trellis |
Speed and acceleration | |
| Top Speed | 165.0 km/h (102.5 mph) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | Report missing specs or required updates. |
| Comments | Made in China. |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Lubrication system | Pressure splash |
| Power | 47.6 HP (34.7 kW)) @ 8500 RPM |
| Engine type | Twin, four-stroke |
| Year | 2025 |
Performance Profile & Rider Fit
47.6 hp
Peak Power
5.8s
0-60 mph
102.5 mph
Top Speed
Best For
Track20%
City60%
Cornering50%
Daily Riding65%
Touring72%
Passenger65%
Rider Profile
| Best For | Suits new-to-intermediate riders thanks to modest power delivery and a manageable, forgiving chassis. |
| Purpose | Built as an adventure-styled allrounder for mixed commuting, light touring, and occasional gravel roads rather than outright performance. |
| Rider Fit | The 860mm seat height and 235kg wet weight make it manageable for average-height riders but noticeable at a standstill or on uneven ground. |
| Character | A friendly, torque-light twin that feels approachable and steady rather than exciting, with adventure-bike looks and everyday usability. |
| Not Ideal For | Not suited to riders chasing high-speed thrills or serious technical off-road adventures given its modest power and street-biased suspension travel. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
