Benelli TRK 502 - 2024 Specifications and Reviews

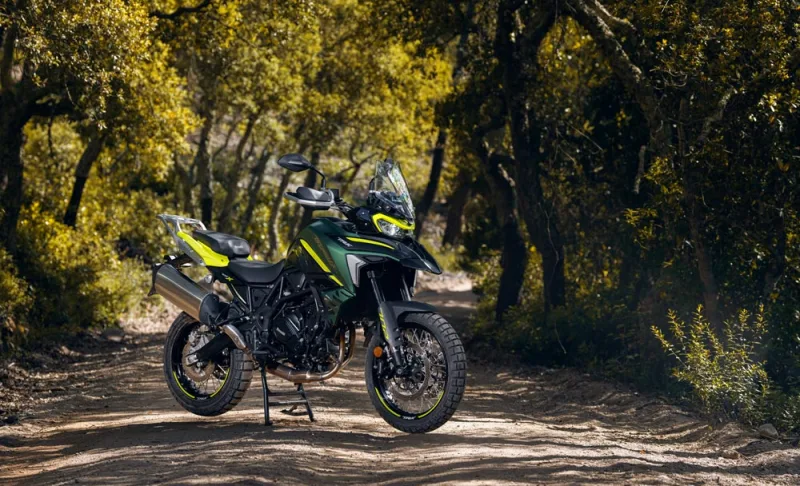

The 2024 Benelli TRK 702X is a middleweight adventure bike designed for riders seeking versatile on and off-road capability. Its 698cc twin-cylinder engine delivers 75 horsepower and strong mid-range torque, making it equally comfortable for commuting, touring, or exploring unpaved terrain. Known for its approachable performance and practical design, the TRK 702X suits riders transitioning into adventure riding.
General information | |
| Type | Allround |
| Year model | 2024 |
| Model name | Benelli TRK 702X |
| | |
Engine and Transmission Specifications | |
| Clutch | Wet multi-plate |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Pressure splash lubrication |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. TCI |
| Valves per cylinder | 4 |
| Bore x stroke | 83.0 x 64.5 mm (3.3 x 2.5 inches) |
| Compression | 11.5:1 |
| Top speed | 165.0 km/h (102.5 mph) |
| Torque | 68.2 Nm (7.0 kgf-m or 50.3 ft.lbs) @ 6250 RPM |
| Effect | 75.1 HP (54.8 kW)) @ 8750 RPM |
| Type of engine | Twin, four-stroke |
| Capacity: | 698.0 ccm (42.59 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked. Gold rims. |
| Rear brakes | Single disc. Single piston calliper, ABS |
| Diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. 4-piston, ABS |
| Rear tire | 150/70-ZR17 |
| Front tire | 110/80-R19 |
| Rear wheel travel | 50 mm (2.0 inches) |
| Rear suspension | Monoshock |
| Front wheel travel | 140 mm (5.5 inches) |
| Front suspension | Upside down telescopic fork |
| Frame type | Steel trellis |
Physical measures and capacities | |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Wheelbase | 1492 mm (58.7 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Overall width | 915 mm (36.0 inches) |
| Overall length | 2225 mm (87.6 inches) |
| Overall height | 1410 mm (55.5 inches) |
| Seat height | 836 mm (32.9 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 235.0 kg (518.1 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Windscreen. Heated grips. Chinese made bike. |
| Carrying capacity | Rear rack |
| Light | Split-LED headlights |
| Starter | Electric |
| Color options | Grey, white |
Performance Profile & Rider Fit
46.9 hp
Peak Power
6s
0-60 mph
102.5 mph
Top Speed
Best For
Track20%
City65%
Cornering50%
Daily Riding75%
Touring72%
Passenger65%
Rider Profile
| Best For | Well suited to newer and intermediate riders thanks to its modest power delivery and forgiving, predictable manners. |
| Purpose | Designed as an affordable, road-biased adventure-style all-rounder for commuting, weekend rides, and light touring rather than serious off-roading. |
| Rider Fit | A tall but manageable seat height and moderate 210kg dry weight mean shorter or less experienced riders may need to plan carefully at stops, though the wide bars and upright stance ease handling once moving. |
| Character | A friendly, unintimidating twin that prioritizes comfort and everyday usability over outright performance or sharp cornering ability. |
| Not Ideal For | Not the right choice for riders seeking high-speed thrills, serious off-road capability, or track-focused cornering precision. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
