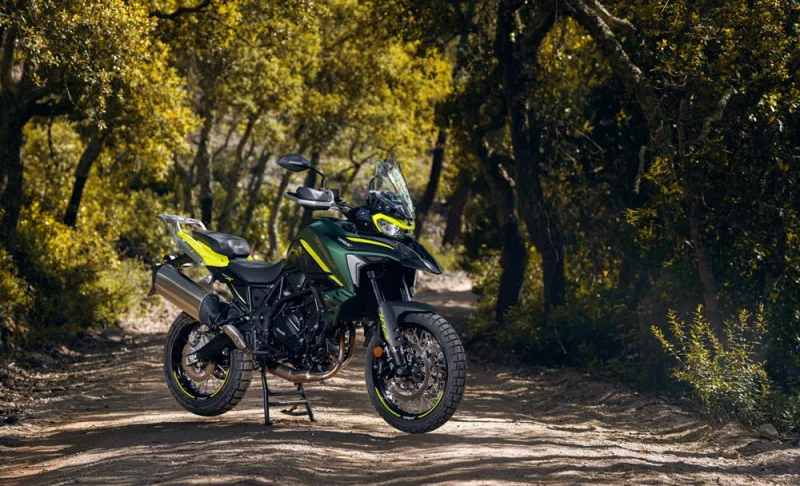

Benelli TRK 502X - 2024 Specifications and Reviews
The 2024 Benelli TRK 502X is a versatile middleweight adventure tourer designed for riders seeking accessible off-road capability without compromising on-road comfort. Powered by a liquid-cooled 500cc parallel-twin engine producing 47.6 hp, it delivers balanced performance for mixed terrain exploration. Best suited for adventure enthusiasts and commuters wanting an affordable entry into adventure touring with genuine go-anywhere potential.
2024
General information | |
| Category | Allround |
| Year | 2024 |
| Model name | Benelli TRK 502X |
Engine and Transmission Specifications | |
| Emission details | Euro 4. Catalytic converter and oxygen sensors. |
| Greenhouse gases | 97.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 4.20 litres/100 km (23.8 km/l or 56.00 mpg) |
| Clutch | Wet multidisc |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Pressure splash lubrication |
| Ignition | TLI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x stroke | 69.0 x 66.8 mm (2.7 x 2.6 inches) |
| Compression | 11.5:1 |
| Torque | 45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 5000 RPM |
| Power | 47.6 HP (34.7 kW)) @ 8500 RPM |
| Engine type | Twin, four-stroke |
| Capacity: | 500.0 ccm (30.51 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Aluminum alloy (optional aluminium rim spoked ) |
| Rear brakes | Single disc. Single piston calliper, ABS |
| Diameter | 280 mm (11.0 inches) |
| Front brakes | Double disc. 4-piston, ABS |
| Rear tire | 150/70-R17 |
| Front tire | 110/80-R9 |
| Rear wheel travel | 45 mm (1.8 inches) |
| Rear suspension | Telescopic coil spring oil damped |
| Front wheel travel | 140 mm (5.5 inches) |
| Front suspension | Telescopic fork |
| Frame type | Arch bar truck |
| | |
Physical measures and capacities | |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Wheelbase | 1505 mm (59.3 inches) |
| Ground clearance | 210 mm (8.3 inches) |
| Overall width | 915 mm (36.0 inches) |
| Overall length | 2220 mm (87.4 inches) |
| Overall height | 1480 mm (58.3 inches) |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.2235 HP/kg |
| Dry weight | 213.0 kg (469.6 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Comments | Windscreen. Chinese made bike. |
| Instruments | All-digital display |
| Starter | Electric |
| Color options | White, grey |
Performance Profile & Rider Fit
47.6 hp
Peak Power
5.8s
0-60 mph
Best For
Track20%
City60%
Cornering50%
Daily Riding70%
Touring72%
Passenger65%
Rider Profile
| Best For | Suitable for newer to intermediate riders thanks to modest power delivery and a manageable, predictable chassis. |
| Purpose | Designed as an affordable, do-it-all adventure-styled bike for mixed road riding, commuting, and light touring rather than serious off-roading. |
| Rider Fit | A tall-ish seat height and moderate 213 kg dry weight mean shorter riders may need to adjust, but overall ergonomics are upright and comfortable for long stints. |
| Character | A friendly, budget-conscious adventure tourer that prioritizes comfort and versatility over outright performance or hardcore off-road capability. |
| Not Ideal For | Not ideal for riders seeking sharp sport performance, technical off-road trails, or high-speed touring at the top of the class. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
