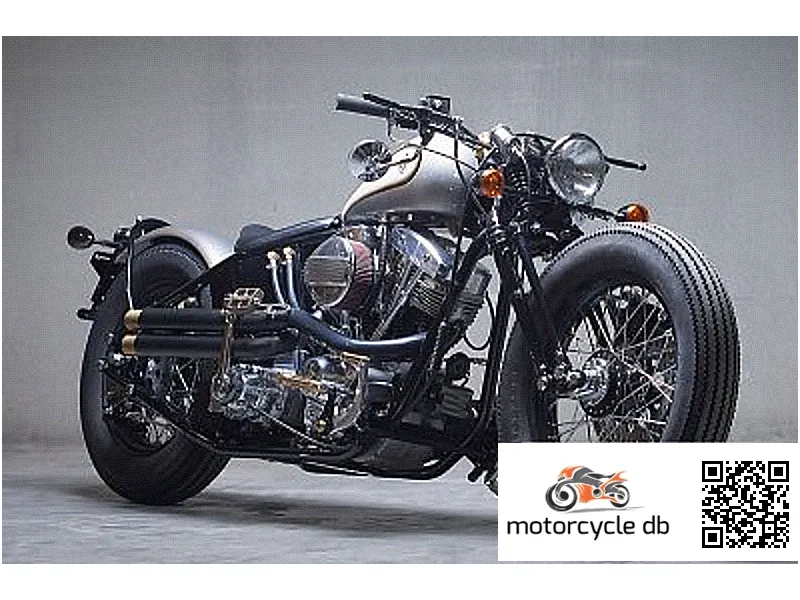

Zero Engineering Type 9 Shovel - 2016 Specifications and Reviews
The 2016 Zero Engineering Type 9 Shovel is a minimalist cruiser designed for riders seeking authentic, stripped-down motorcycle character. Known for its classic wire-spoke wheels, low 636mm seat height, and lightweight 260kg frame, it excels as a customizable platform for enthusiasts who value simplicity and style over complexity. Made in Japan with dual electric and kick starting options, this shovel-style machine appeals to purists seeking nostalgic appeal with modern reliability.
2016
General information | |
| Category | Classic |
| Year | 2016 |
| Model | Zero Engineering Type 9 Shovel |
Engine and Transmission Specifications | |
| Exhaust system | Black |
| Driveline | Baker 6-into-4 “Frankentranny” transmission |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x Stroke | 92.2 x 114.3 mm (3.6 x 4.5 inches) |
| Compression | 8.2:1 |
| Engine details | S and S Shovelhead engine |
| Engine type | V2, four-stroke |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked |
| Rear brakes | Single disc. Hydraulic |
| Front brakes | Single disc. Hydraulic |
| Rear tyre | 5.00-16 |
| Front tyre | 4.50-18 |
| Rear Suspension | Multi-link suspension |
| Front Suspension | Springer fork |
| Rake (fork angle) | 38.0° |
| Frame type | Gooseneck frame, multlink |
Physical measures and capacities | |
| Oil capacity | 2.80 litres (0.18 quarts) |
| Fuel capacity | 9.84 litres (2.60 gallons) |
| Wheelbase | 1,689 mm (66.5 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Overall width | 795 mm (31.3 inches) |
| Overall length | 2,425 mm (95.5 inches) |
| Overall height | 935 mm (36.8 inches) |
| Seat height | 636 mm (25.0 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 259.9 kg (573.0 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Made in Japan. |
| Instruments | Analogue, minimalistic |
| Starter | Electric & kick |
| Color options | Silver |
Performance Profile & Rider Fit
6.5s
0-60 mph (est.)
Best For
Track5%
City45%
Cornering30%
Daily Riding35%
Touring30%
Passenger15%
Rider Profile
| Best For | This is a boutique custom bike best suited to experienced riders who are comfortable with a low-slung, aggressive riding position and a springer front end with limited suspension travel. |
| Purpose | Built as a rolling piece of custom craftsmanship and style statement rather than a performance or utility machine, centered around its S&S Shovelhead engine and hand-built chassis. |
| Rider Fit | The low 636mm seat height and long, stretched-out stance make it accessible for shorter riders, though the rigid-feeling springer fork and minimal ergonomic cushioning demand tolerance for a harsher, more physical ride. |
| Character | A raw, garage-built chopper-style machine with a big air-cooled V-twin thump, wire wheels, and minimalist analogue instruments, oozing old-school custom attitude over modern refinement. |
| Not Ideal For | Not for riders seeking sport performance, off-road capability, long-distance touring comfort, or a passenger-friendly setup. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
