What category is the 2026 Yamaha NMAX 155 Tech Max?

The 2026 Yamaha NMAX 155 Tech Max has a Category of Scooter.

What is the engine size of the 2026 Yamaha NMAX 155 Tech Max?

The 2026 Yamaha NMAX 155 Tech Max has a Capacity: of 155.0 ccm (9.46 cubic inches).

How many gears does the 2026 Yamaha NMAX 155 Tech Max have?

The 2026 Yamaha NMAX 155 Tech Max has a Gearbox of Automatic.

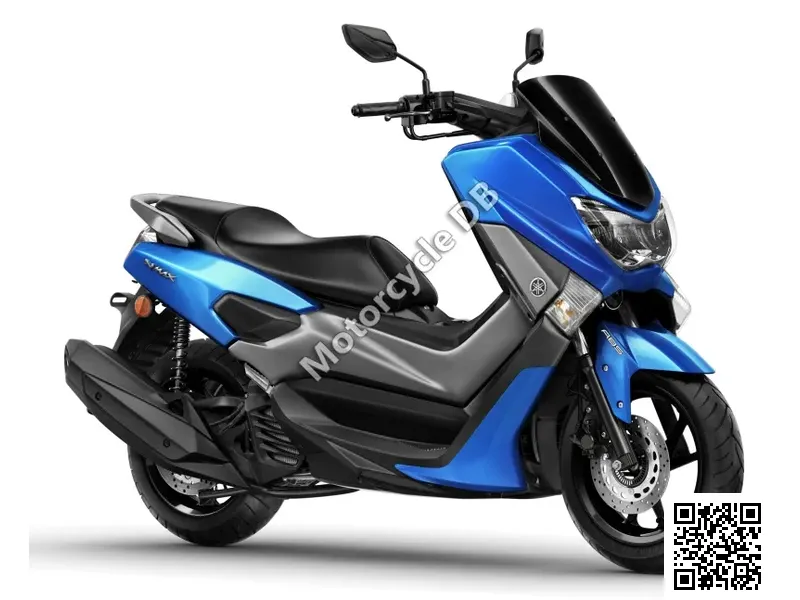

Yamaha NMAX 155 Tech Max - 2026 Specifications and Reviews

Name: 2026 Yamaha NMAX 155 Tech Max
Brand: Yamaha

⇄ Compare against another bike 📅 All Years

2026

❮❯

Add/Upload pictures for this motorcycle

General information
Category	Scooter
Year	2026
Model	Yamaha NMAX 155 Tech Max
Engine and Transmission Specifications
Starting	Electric
Emission Details	Euro 5
Clutch	Dry centrifugal
Final Drive	Belt (final drive)
Gearbox	Automatic
Cooling System	Liquid
Ignition	TCI
Fuel Control	Single Overhead Cams (SOHC)
Induction	Injection
Valves Per Cylinder	4
Bore x Stroke	58.0 x 58.7 mm (2.3 x 2.3 inches)
Compression Ratio	11.6:1
Max Torque	14.4 Nm (1.5 kgf-m or 10.6 ft.lbs) @ 6000 RPM
Max Power	12.1 HP (8.8 kW)) @ 7500 RPM
Capacity:	155.0 ccm (9.46 cubic inches)
Physical measures and capacities
Fuel Capacity	7.10 litres (1.88 US gallons)
Wheelbase	1350 mm (53.1 inches)
Ground Clearance	135 mm (5.3 inches)
Overall Width	740 mm (29.1 inches)
Overall Length	1955 mm (77.0 inches)
Overall Height	1115 mm (43.9 inches)
Seat Height	765 mm (30.1 inches) If adjustable, lowest setting.
Wet Weight	127.0 kg (280.0 pounds)

Yamaha NMAX 155 Tech Max dimensions and frame
Rear Brakes	Single disc. ABS.
Brake Disc Diameter	230 mm (9.1 inches)
Front Brakes	Single disc. Hydraulic. ABS.
Rear Tyre	130/70-13
Front Tyre	110/70-13
Rear Wheel Travel	85 mm (3.3 inches)
Rear Suspension	Unit Swing, twin shocks
Front Wheel Travel	100 mm (3.9 inches)
Front Suspension	Telescopic fork
Trail	92 mm (3.6 inches)
Frame	Underbone
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Instruments	LCD instruments

Performance Profile & Rider Fit

12.1 hp

Peak Power

Best For

Track5%

City92%

Cornering55%

Daily Riding88%

Touring40%

Passenger60%

Rider Profile

Best For	Suitable for riders of any experience level, including new riders stepping up from smaller scooters.
Purpose	Built primarily for commuting and urban mobility with a premium feel, not for outright speed or long-distance touring.
Rider Fit	Lightweight and low-slung, it's easy to manage for shorter or less physically strong riders and simple to paddle around at a stop.
Character	A refined, upmarket urban scooter that blends nimble handling with a comfortable ride and a sporty premium finish.
Not Ideal For	Not for riders seeking highway speed, long-haul touring comfort, or any off-road capability.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2026 Yamaha NMAX 155 Tech Max Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 765mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with both feet flat on the 2026 Yamaha NMAX 155 Tech Max, with a moderate knee angle of around 100 degrees and a slightly forward riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.

Find bikes that fit your height →
