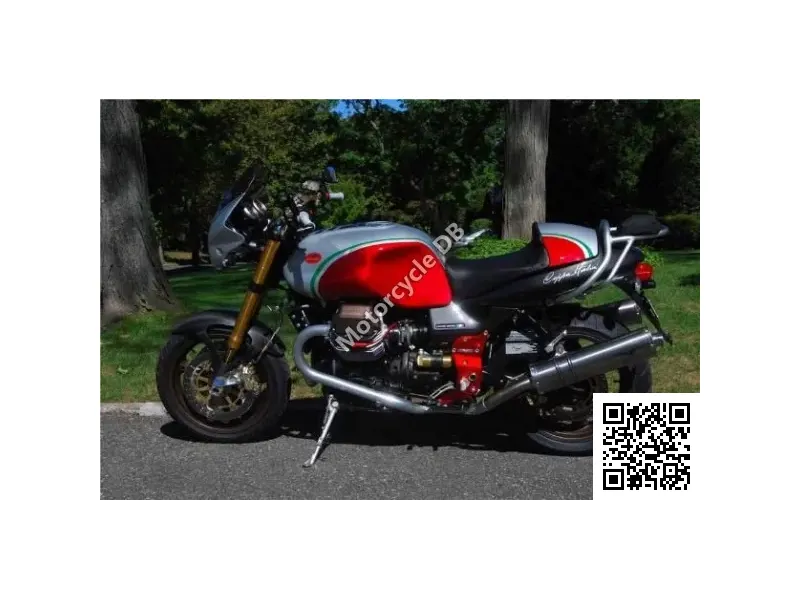

Moto Guzzi V11 Copa Italia - 2006 Specifications and Reviews
2006
General information | |
| Category | Naked bike |
| Year | 2006 |
| Model | Moto Guzzi V11 Copa Italia |
Engine and Transmission Specifications | |
| Clutch | Double discs, dry, with hydraulic command |
| Transmission typefinal drive | Chain |
| Cooling system | Air |
| Lubrication system | Wet sump, forced oil, cartridge filter |
| Starter | Electric |
| Fuel control | OHV |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli IAW Multipoint phased sequential fuel injection |
| Bore x stroke | 92.0 x 80.0 mm (3.6 x 3.1 inches) |
| Compression | 9.8:1 |
| Torque | 94.92 |
| Power | 91.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1064.00 ccm (64.93 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,490 mm (58.7 inches) |
| Ground clearance | 178 mm (7.0 inches) |
| Overall width | 785 mm (30.9 inches) |
| Overall length | 2,150 mm (84.6 inches) |
| Overall height | 1,170 mm (46.1 inches) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Dry weight | 221.0 kg (487.2 pounds) |
| | |
Moto Guzzi V11 Copa Italia dimensions and frame | |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc |
| Rear tyre dimensions | 180/55-17 |
| Front tyre dimensions | 120/70-17 |
| Rear suspension travel | 128 mm (5.0 inches) |
| Rear suspension | Cantilever swing arm with Ohlins mono shock compression/extension/preload adjustable |
| Front suspension travel | 120 mm (4.7 inches) |
| Front suspension | Ohlins USD fork, 43 mm compression/extension adjustable |
| Trail | 103 mm (4.1 inches) |
| Rake (fork angle) | 25.0° |
Speed and acceleration | |
| Power/weight ratio | 0.4118 HP/kg |
Other specs | |
| Color options | Tri-color Silver, Red and Green |
| Fuel capacity | 20.66 litres (5.46 gallons) |
