What category is the 2012 Moto Guzzi Stelvio 8V?

The 2012 Moto Guzzi Stelvio 8V has a Category of Enduro / offroad.

What is the engine size of the 2012 Moto Guzzi Stelvio 8V?

The 2012 Moto Guzzi Stelvio 8V has a Capacity: of 1151.00 ccm (70.23 cubic inches).

What type of engine does the 2012 Moto Guzzi Stelvio 8V have?

The 2012 Moto Guzzi Stelvio 8V has a Engine type of V2, four-stroke.

What is the engine power of the 2012 Moto Guzzi Stelvio 8V?

The 2012 Moto Guzzi Stelvio 8V has a Power of 103.26.

What is the torque of the 2012 Moto Guzzi Stelvio 8V?

The 2012 Moto Guzzi Stelvio 8V has a Torque of 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800.

Is the 2012 Moto Guzzi Stelvio 8V air cooled or liquid cooled?

The 2012 Moto Guzzi Stelvio 8V has a Cooling system of Oil & air.

How many gears does the 2012 Moto Guzzi Stelvio 8V have?

The 2012 Moto Guzzi Stelvio 8V has a Gearbox of 6-speed.

How much does the 2012 Moto Guzzi Stelvio 8V weigh?

The 2012 Moto Guzzi Stelvio 8V has a Weight incl. oil, gas, etc of 257.0 kg (566.6 pounds).

What is the seat height of the 2012 Moto Guzzi Stelvio 8V?

The 2012 Moto Guzzi Stelvio 8V has a Seat height of 820 mm (32.3 inches) If adjustable, lowest setting..

Moto Guzzi Stelvio 8V - 2012 Specifications and Reviews

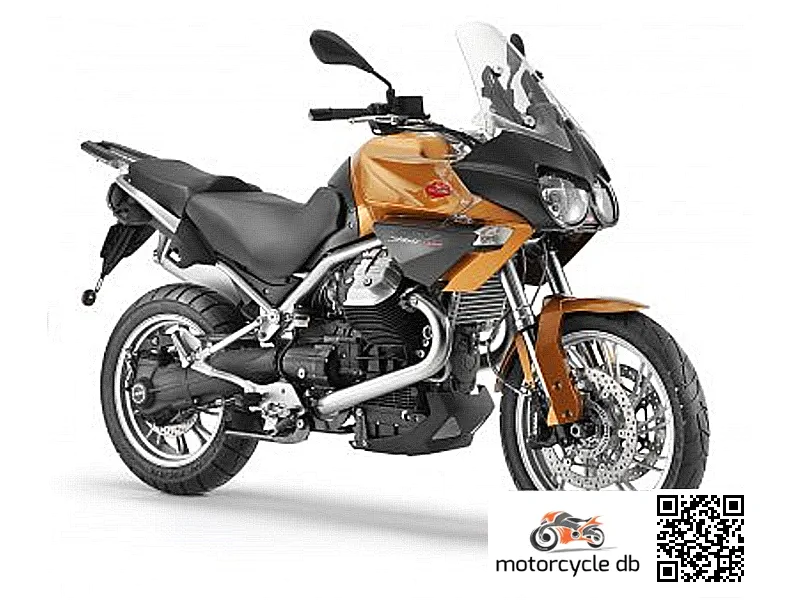

Name: 2012 Moto Guzzi Stelvio 8V
Brand: Moto Guzzi

The 2012 Moto Guzzi Stelvio 8V is a large-capacity adventure enduro designed for experienced riders seeking genuine off-road capability combined with on-road comfort. Its 1151cc V-twin engine delivers strong low-end torque ideal for varied terrain, while the robust construction and long-travel suspension make it well-suited for long-distance exploration and challenging trails.

⇄ Compare against another bike 📅 All Years

2012

❮❯

Add/Upload pictures for this motorcycle

General information
Category	Enduro / offroad
Year	2012
Model	Moto Guzzi Stelvio 8V
Engine and Transmission Specifications
Exhaust system	Stainless steel two-into-one
Emission details	3-way catalysed with Lambda probe. Euro 3.
Driveline	Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666
Clutch	Single-disc with integrated anti-vibration buffer
Transmission type,final drive	Shaft drive (cardan)
Gearbox	6-speed
Cooling system	Oil & air
Ignition	Multipoint sequential electronic ignition, Magneti Marelli
Fuel control	OHV
Fuel system	Injection
Valves per cylinder	4
Bore x stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Compression	11.0:1
Torque	113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800
Power	103.26
Engine details	90° V-twin.
Engine type	V2, four-stroke
Capacity:	1151.00 ccm (70.23 cubic inches)
Brakes, suspension, Frame and wheels
Wheels	Tubeless with spokes
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	180/55-R17
Front tyre dimensions	110/80-R19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Front suspension travel	170 mm (6.7 inches)
Front suspension	Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping)
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	Tubular in high-strength steel with integrated engine

Physical measures and capacities
Reserve fuel capacity	7.00 litres (1.85 gallons)
Fuel capacity	32.00 litres (8.45 gallons)
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1,025 mm (40.4 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,475 mm (58.1 inches)
Alternate seat height	840 mm (33.1 inches) If adjustable, highest setting.
Seat height	820 mm (32.3 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	257.0 kg (566.6 pounds)

Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Black, bronze, white
Electrical	12 V 18 Ah battery
Starter	Electric

Performance Profile & Rider Fit

103.3 hp

Peak Power

0-60 mph

Best For

Track30%

City50%

Cornering60%

Daily Riding65%

Touring88%

Passenger75%

Rider Profile

Best For	Best suited to riders with at least intermediate experience, given the bike's substantial weight and tall adventure-touring stance.
Purpose	Designed primarily as a long-distance adventure tourer that blends V-twin torque with shaft-drive reliability for extended road and light dual-sport journeys.
Rider Fit	At 257 kg with an 820-840mm seat height, shorter or less physically confident riders may find slow-speed handling and pick-up-off-the-stand maneuvers demanding.
Character	A characterful, torque-rich V-twin cruiser-adventure hybrid that rewards relaxed, rolling-road riding over aggressive off-road excursions.
Not Ideal For	Not a good fit for riders seeking a lightweight, nimble off-road machine or a track-focused sportbike experience.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2012 Moto Guzzi Stelvio 8V Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 820mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with balls of both feet on the 2012 Moto Guzzi Stelvio 8V, with a cramped knee angle of around 70 degrees and a slightly forward riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
