What category is the 2012 Moto Guzzi Stelvio 1200 ABS?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Category of Enduro / offroad.

What is the engine size of the 2012 Moto Guzzi Stelvio 1200 ABS?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Capacity: of 1151.00 ccm (70.23 cubic inches).

What type of engine does the 2012 Moto Guzzi Stelvio 1200 ABS have?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Engine type of V2, four-stroke.

What is the engine power of the 2012 Moto Guzzi Stelvio 1200 ABS?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Power of 110.00.

What is the torque of the 2012 Moto Guzzi Stelvio 1200 ABS?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Torque of 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400.

Is the 2012 Moto Guzzi Stelvio 1200 ABS air cooled or liquid cooled?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Cooling system of Oil & air.

How many gears does the 2012 Moto Guzzi Stelvio 1200 ABS have?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Gearbox of 6-speed.

How much does the 2012 Moto Guzzi Stelvio 1200 ABS weigh?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Weight incl. oil, gas, etc of 251.0 kg (553.4 pounds).

What is the seat height of the 2012 Moto Guzzi Stelvio 1200 ABS?

The 2012 Moto Guzzi Stelvio 1200 ABS has a Seat height of 840 mm (33.1 inches) If adjustable, lowest setting..

Moto Guzzi Stelvio 1200 ABS - 2012 Specifications and Reviews

Name: 2012 Moto Guzzi Stelvio 1200 ABS
Brand: Moto Guzzi

The 2012 Moto Guzzi Stelvio 1200 ABS is a heavyweight adventure tourer built for experienced riders seeking on-road capability with genuine off-road potential. Its 1151cc V-twin engine delivers 110 horsepower and strong mid-range torque, while ABS braking and a robust steel frame provide confidence on varied terrain. Best known for combining Italian styling with practical adventure touring credentials, the Stelvio suits riders wanting an accessible alternative to Japanese and German adventure bikes.

⇄ Compare against another bike 📅 All Years

2012

❮❯

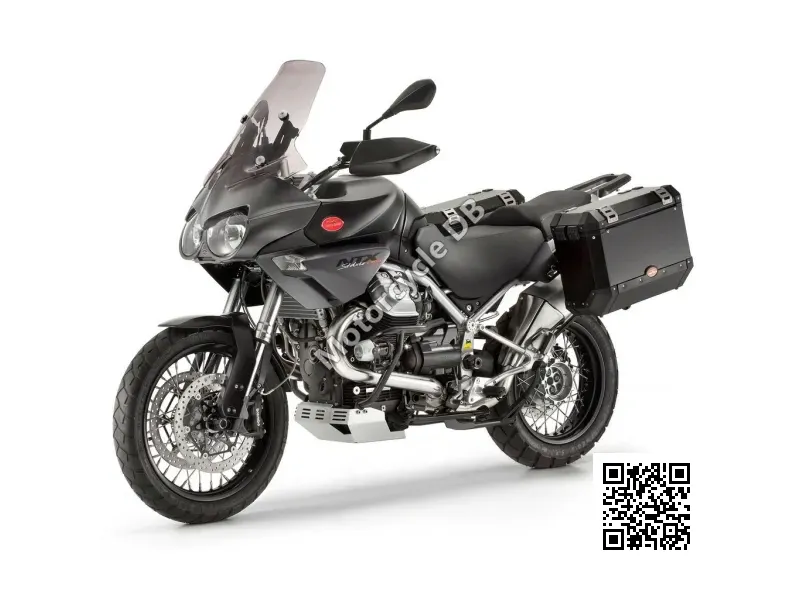

Moto Guzzi Stelvio 1200 ABS 2012 22153 Thumb

Moto Guzzi Stelvio 1200 ABS 2012 57367 Thumb

Moto Guzzi Stelvio 1200 ABS 2012 57373 Thumb

Moto Guzzi Stelvio 1200 ABS 2012 57379 Thumb

Moto Guzzi Stelvio 1200 ABS 2012 57385 Thumb

Add/Upload pictures for this motorcycle

General information
Category	Enduro / offroad
Year	2012
Model	Moto Guzzi Stelvio 1200 ABS
Engine and Transmission Specifications
Exhaust system	Stainless steel two-into-one
Emission details	3-way catalysed with Lambda probe. Euro 3.
Driveline	Primary transmission with helical teeth, ratio 26/35 = 1: 1.346. Final drive: Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666.
Clutch	Single-disc with integrated anti-vibration buffer
Transmission type,final drive	Shaft drive (cardan)
Gearbox	6-speed
Cooling system	Oil & air
Ignition	Multipoint sequential electronic ignition, Magneti Marelli
Fuel control	OHV
Fuel system	Injection
Bore x stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Compression	11.0:1
Torque	108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400
Power	110.00
Engine details	90° V-twin.
Engine type	V2, four-stroke
Capacity:	1151.00 ccm (70.23 cubic inches)

Brakes, suspension, Frame and wheels
Wheels	Spoked aluminium alloy
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	180/55-R17
Front tyre dimensions	110/90-R19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Front suspension travel	170 mm (6.7 inches)
Front suspension	Upside down 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	Tubular in high-strength steel with integrated engine
Physical measures and capacities
Reserve fuel capacity	3.30 litres (0.87 gallons)
Fuel capacity	18.00 litres (4.76 gallons)
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1,025 mm (40.4 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,475 mm (58.1 inches)
Seat height	840 mm (33.1 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc	251.0 kg (553.4 pounds)

Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Lunar white
Electrical	12 V 18 Ah battery
Starter	Electric

Performance Profile & Rider Fit

110 hp

Peak Power

4.2s

0-60 mph

Best For

Track25%

City45%

Cornering55%

Daily Riding65%

Touring88%

Passenger75%

Rider Profile

Best For	Suited to riders with at least intermediate experience, since the 251kg mass and tall 840mm seat height demand confident low-speed handling.
Purpose	Built as a long-distance adventure-touring machine, blending V-twin torque with shaft-drive reliability for extended road journeys rather than serious offroad work.
Rider Fit	Taller and heavier riders will feel most at home given the substantial seat height and curb weight, which can challenge shorter or lighter riders at a standstill.
Character	A characterful, torque-rich V-twin cruiser-adventure hybrid that rewards relaxed, steady riding over aggressive sport-style inputs.
Not Ideal For	Not ideal for riders seeking sharp, lightweight agility for tight city commuting or technical singletrack offroading.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
