What category is the 2009 Moto Guzzi Stelvio 1200 4V?

The 2009 Moto Guzzi Stelvio 1200 4V has a Category of Enduro / offroad.

What is the engine size of the 2009 Moto Guzzi Stelvio 1200 4V?

The 2009 Moto Guzzi Stelvio 1200 4V has a Capacity: of 1151.00 ccm (70.23 cubic inches).

What type of engine does the 2009 Moto Guzzi Stelvio 1200 4V have?

The 2009 Moto Guzzi Stelvio 1200 4V has a Engine type of V2.

What is the engine power of the 2009 Moto Guzzi Stelvio 1200 4V?

The 2009 Moto Guzzi Stelvio 1200 4V has a Power of 108.35.

What is the torque of the 2009 Moto Guzzi Stelvio 1200 4V?

The 2009 Moto Guzzi Stelvio 1200 4V has a Torque of 108.00.

How many gears does the 2009 Moto Guzzi Stelvio 1200 4V have?

The 2009 Moto Guzzi Stelvio 1200 4V has a Gearbox of 6-speed.

How much does the 2009 Moto Guzzi Stelvio 1200 4V weigh?

The 2009 Moto Guzzi Stelvio 1200 4V has a Dry weight of 214.0 kg (471.8 pounds).

What is the seat height of the 2009 Moto Guzzi Stelvio 1200 4V?

The 2009 Moto Guzzi Stelvio 1200 4V has a Seat height of 840 mm (33.1 inches) If adjustable, lowest setting..

Moto Guzzi Stelvio 1200 4V - 2009 Specifications and Reviews

Name: 2009 Moto Guzzi Stelvio 1200 4V
Brand: Moto Guzzi

The 2009 Moto Guzzi Stelvio 1200 4V is a mid-weight adventure bike that combines Italian heritage with practical off-road capability. Its 1151cc V-twin engine delivers smooth power ideal for long-distance touring and light trail riding. Built for versatile riders seeking character and comfort over pure performance, it remains known for distinctive styling and dependable twin-cylinder character.

⇄ Compare against another bike 📅 All Years

2009

❮❯

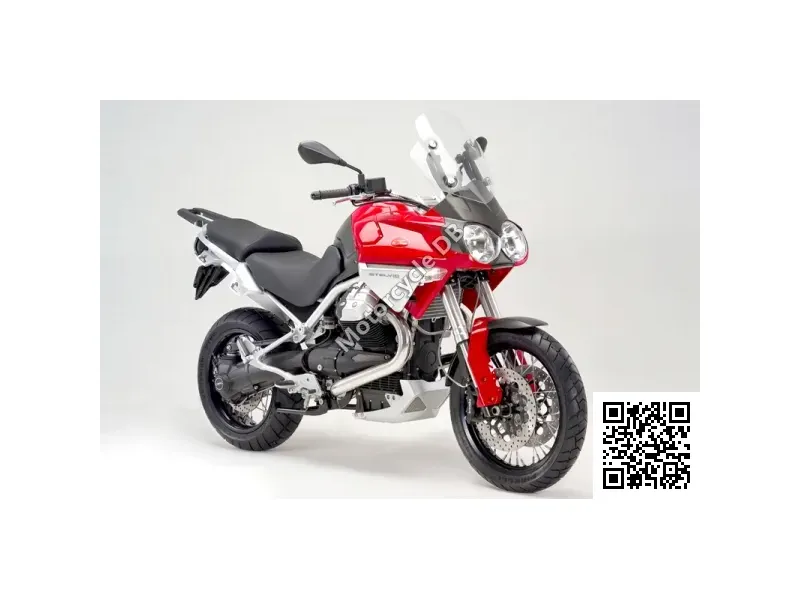

Moto Guzzi Stelvio 1200 4V 2009 14843 Thumb

Moto Guzzi Stelvio 1200 4V 2009 57364 Thumb

Moto Guzzi Stelvio 1200 4V 2009 57370 Thumb

Moto Guzzi Stelvio 1200 4V 2009 57376 Thumb

Moto Guzzi Stelvio 1200 4V 2009 57382 Thumb

Add/Upload pictures for this motorcycle

General information
Category	Enduro / offroad
Year	2009
Model	Moto Guzzi Stelvio 1200 4V

Engine and Transmission Specifications
Clutch	Single plate with integrated flexible couplings
Gearbox	6-speed
Starter	Electric
Fuel system	Injection. Multipoint sequential electronic injection,
Bore x stroke	95.0 x 81.2 mm (3.7 x 3.2 inches)
Compression	11.0:1
Torque	108.00
Power	108.35
Stroke	4
Engine type	V2
Capacity:	1151.00 ccm (70.23 cubic inches)

Physical measures and capacities
Wheelbase	1,535 mm (60.4 inches)
Ground clearance	210 mm (8.3 inches)
Overall width	1,025 mm (40.4 inches)
Overall length	2,250 mm (88.6 inches)
Overall height	1,475 mm (58.1 inches)
Seat height	840 mm (33.1 inches) If adjustable, lowest setting.
Dry weight	214.0 kg (471.8 pounds)
Moto Guzzi Stelvio 1200 4V dimensions and frame
Exhaust system	Stainless steel two-into-one 3-way catalysed with Lambda probe. Euro 3.
Rear brakes diameter	282 mm (11.1 inches)
Rear brakes	Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear tyre dimensions	180/55-R17
Front tyre dimensions	110/90-R19
Rear suspension travel	155 mm (6.1 inches)
Rear suspension	Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Front suspension travel	170 mm (6.7 inches)
Front suspension	Upside down 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Trail	125 mm (4.9 inches)
Rake (fork angle)	27.0°
Frame type	High tensile steel tubular twin cradle
Speed and acceleration
Power/weight ratio	0.5063 HP/kg
Other specs
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay
Color options	Silver, red/silver
Reserve fuel capacity	3.30 litres (0.87 gallons)
Fuel capacity	18.00 litres (4.76 gallons)

Performance Profile & Rider Fit

108.4 hp

Peak Power

4.2s

0-60 mph

Best For

Track35%

City50%

Cornering60%

Daily Riding65%

Touring85%

Passenger75%

Rider Profile

Best For	Suits an intermediate to experienced rider comfortable with a tall, substantial adventure-touring bike.
Purpose	Built primarily as a long-distance adventure tourer that can handle light unpaved roads while remaining composed on highways.
Rider Fit	The 840mm seat height and 214kg dry weight mean shorter or less experienced riders may find it a handful at low speeds or off-road.
Character	A characterful V-twin adventure bike with strong torque delivery, Italian handling feel, and a shaft-driven touring focus rather than outright dirt capability.
Not Ideal For	Not ideal for riders seeking serious technical off-road performance or a light, flickable machine for tight city commuting.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2009 Moto Guzzi Stelvio 1200 4V Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 840mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with balls of both feet on the 2009 Moto Guzzi Stelvio 1200 4V, with a cramped knee angle of around 70 degrees and a slightly forward riding position.

Data quality: measured. Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.
