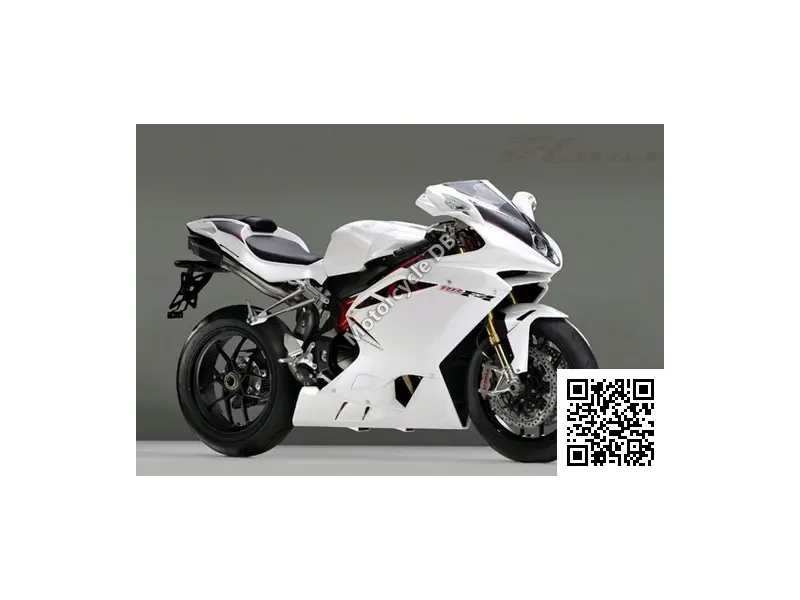

MV Agusta F4 1000 S 1 plus 1 - 2009 Specifications and Reviews

2009

General information
Category	Sport
Year	2009
Model	MV Agusta F4 1000 S 1 plus 1

Engine and Transmission Specifications
Clutch	Multiplate in oil bath
Transmission typefinal drive	Chain
Gearbox	6-speed
Cooling system	Liquid
Starter	Electric
Fuel control	DOHC
Valves per cylinder	4
Fuel system	Injection
Bore x stroke	76.0 x 55.0 mm (3.0 x 2.2 inches)
Torque	109.00
Power	166.00
Stroke	4
Engine type	In-line four
Capacity:	998.00 ccm (60.90 cubic inches)
Physical measures and capacities
Wheelbase	1,408 mm (55.4 inches)
Ground clearance	130 mm (5.1 inches)
Overall width	685 mm (27.0 inches)
Overall length	2,007 mm (79.0 inches)
Seat height	810 mm (31.9 inches) If adjustable, lowest setting.
Dry weight	193.0 kg (425.5 pounds)
MV Agusta F4 1000 S 1 plus 1 dimensions and frame
Rear brakes diameter	210 mm (8.3 inches)
Rear brakes	Single disc. 4-piston calipers
Front brakes diameter	320 mm (12.6 inches)
Front brakes	Double disc. 6-piston calipers
Rear tyre dimensions	190/50-ZR17
Front tyre dimensions	120/70-ZR17
Rear suspension travel	120 mm (4.7 inches)
Rear suspension	Progressive, single shock absorber with rebound compression damping and spring preload
Front suspension travel	126 mm (5.0 inches)
Front suspension	Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Frame type	CrMo Steel tubular trellis and aluminium alloy
Speed and acceleration
Power/weight ratio	0.8601 HP/kg
Top speed	300.0 km/h (186.4 mph)
Other specs
Reserve fuel capacity	4.00 litres (1.06 gallons)
Fuel capacity	21.00 litres (5.55 gallons)
