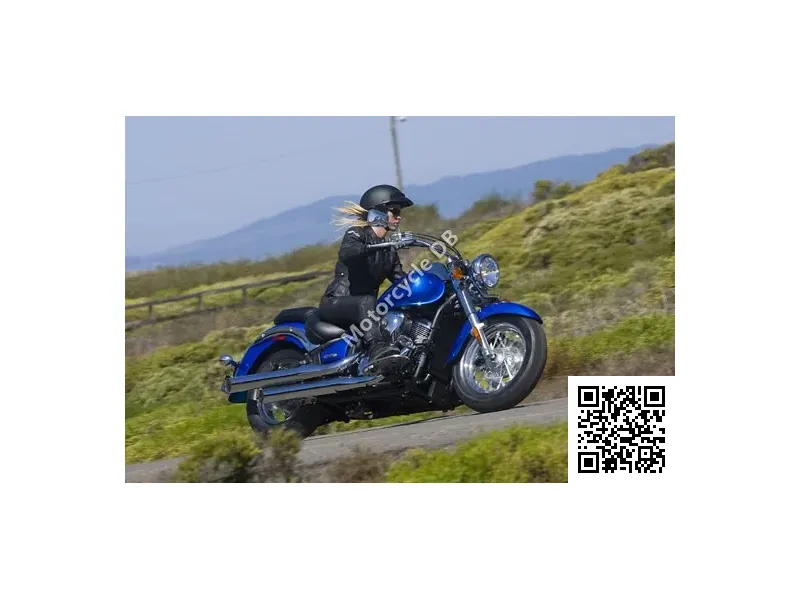

Kawasaki Vulcan 900 Classic - 2009 Specifications and Reviews
The 2009 Kawasaki Vulcan 900 Classic is a mid-sized cruiser that appeals to riders seeking an accessible yet capable machine with authentic custom styling. Its 903cc V-twin engine delivers smooth, low-end torque ideal for relaxed cruising and city riding. Known for reliable performance, comfortable ergonomics, and affordability, it suits both experienced cruiser enthusiasts and those transitioning from smaller bikes.
General information | |
| Category | Custom / cruiser |
| Year | 2009 |
| Model | Kawasaki Vulcan 900 Classic |
| | |
Engine and Transmission Specifications | |
| Transmission typefinal drive | Belt |
| Gearbox | 5-speed |
| Cooling system | Liquid |
| Starter | Electric |
| Ignition | TCBI with Electronic Advance |
| Fuel control | SOHC |
| Fuel system | Injection |
| Bore x stroke | 88.0 x 74.2 mm (3.5 x 2.9 inches) |
| Compression | 9.5:1 |
| Torque | 78.91 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 903.00 ccm (55.10 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,646 mm (64.8 inches) |
| Overall width | 1,006 mm (39.6 inches) |
| Overall length | 2,464 mm (97.0 inches) |
| Overall height | 1,064 mm (41.9 inches) |
| Seat height | 681 mm (26.8 inches) If adjustable, lowest setting. |
| Dry weight | 281.0 kg (619.6 pounds) |
Kawasaki Vulcan 900 Classic dimensions and frame | |
| Rear brakes diameter | 272 mm (10.7 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 272 mm (10.7 inches) |
| Front brakes | Single disc |
| Rear tyre dimensions | 180/70-15 |
| Front tyre dimensions | 130/90-16 |
| Rear suspension | Uni-Track® swingarm / 4.1 in. |
| Front suspension | 41mm hydraulic telescopic fork / 5.9 in. |
| Trail | 160 mm (6.3 inches) |
| Rake (fork angle) | 32.0° |
| Frame type | Double-cradle, steel |
| | |
Speed and acceleration | |
| Color options | Metallic Diablo Black, Candy Plasma Blue, Candy Diamond Red |
| Fuel capacity | 20.06 litres (5.30 gallons) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
Performance Profile & Rider Fit
Best For
Rider Profile
| Best For | Well suited to beginner and intermediate riders thanks to its low seat height, manageable weight for its class, and mellow torque-driven power delivery. |
| Purpose | A classic-styled cruiser built for relaxed boulevard rides and easy weekend cruising rather than outright speed or sport handling. |
| Rider Fit | The low 26.8 inch seat height and low center of gravity make it approachable for shorter riders, though the nearly 620 lb wet weight demands some care at parking-lot speeds. |
| Character | Delivers a laid-back, torque-rich cruiser experience with classic Vulcan styling, a smooth V-twin thrum, and unhurried acceleration. |
| Not Ideal For | Not the right choice for riders seeking sharp cornering ability, high top-end speed, or any off-road capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
⚠ Safety Recalls (1)
KAWASAKI IS RECALLING CERTAIN MODEL YEAR 2009-2010 VULCAN MOTORCYCLES. THE ENGINE MAY STALL IF THE RIDER IS COASTING WITH THE CLUTCH PULLED IN DUE TO AN IMPROPER SETTING OF THE ENGINE CONTROL UNIT (ECU).
Risk: ENGINE STALLING COULD CREATE A POTENTIAL FOR A CRASH RESULTING IN INJURY OR DEATH.
Remedy: DEALERS WILL REPLACE THE ECU WITH ONE CONTAINING REVISED SETTINGS TO ADDRESS THE ENGINE STALLING. THE SAFETY RECALL BEGAN ON NOVEMBER 1, 2010. OWNERS MAY CONTACT KAWASAKI CONSUMER SERVICES DEPARTMENT AT 1-866-802-9381.
Source: NHTSA. View all Kawasaki recalls →
