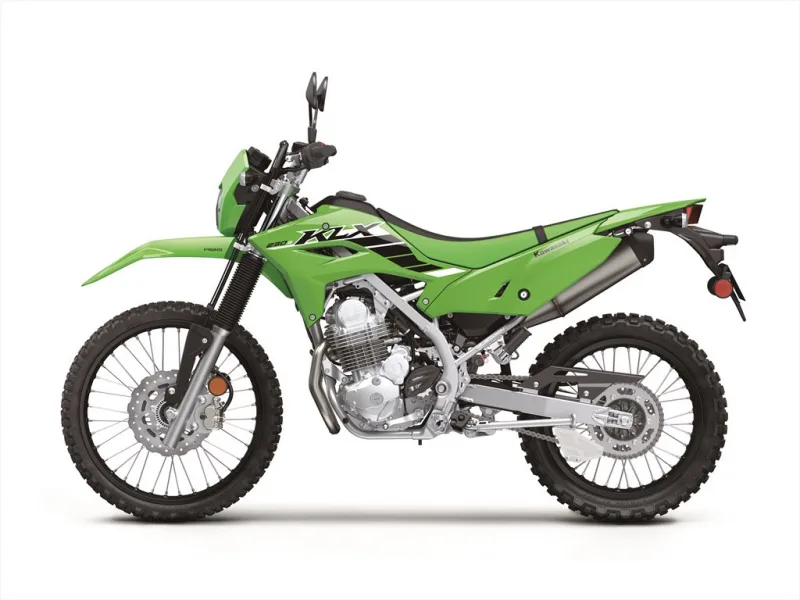

Kawasaki KLX 230S - 2024 Specifications and Reviews
The 2024 Kawasaki KLX 230S is a lightweight enduro bike designed for beginner and intermediate off-road riders seeking an accessible entry point into dirt biking. Known for its manageable 233cc single-cylinder engine and forgiving ergonomics, it excels in tight trails and technical terrain while remaining easy to handle for less experienced riders.
General information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Category | Enduro / offroad |
| Year | 2024 |
| Model name | Kawasaki KLX 230S |
| | |
Engine and Transmission Specifications | |
| Driveline | Sealed chain |
| Clutch | Wet multi-disc, manual |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Lubrication system | Forced lubrication, wet sump |
| Ignition | TCBI Electronic Advance |
| Fuel control | Single Overhead Cams (SOHC) |
| Fuel system | Injection. DFI® with 32mm Keihin throttle body |
| Valves per cylinder | 4 |
| Bore x stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Compression | 9.4:1 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 233.0 ccm (14.22 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked |
| Rear brakes | Single disc. Single-piston. Petal disc. Optional ABS. |
| Diameter | 265 mm (10.4 inches) |
| Front brakes | Single disc. Dual-piston. Petal disc. Optional ABS. |
| Rear tire | 4.10-18 |
| Front tire | 2.75-21 |
| Rear wheel travel | 168 mm (6.6 inches) |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front wheel travel | 157 mm (6.2 inches) |
| Front suspension | 37mm telescopic fork |
| Trail | 117 mm (4.6 inches) |
| Rake (fork angle) | 27.5° |
| Frame type | High-tensile steel, box-section perimeter |
Physical measures and capacities | |
| Fuel capacity | 7.57 litres (2.00 US gallons) |
| Wheelbase | 1379 mm (54.3 inches) |
| Ground clearance | 211 mm (8.3 inches) |
| Overall width | 836 mm (32.9 inches) |
| Overall length | 2080 mm (81.9 inches) |
| Overall height | 1110 mm (43.7 inches) |
| Seat height | 831 mm (32.7 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 134.0 kg (295.5 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Factory warranty | 12 months |
| Starter | Electric |
| Color options | Lime Green, Battle Gray |
Performance Profile & Rider Fit
Best For
Track10%
City45%
Cornering55%
Daily Riding40%
Touring20%
Passenger15%
Rider Profile
| Best For | Well suited to beginner and intermediate riders thanks to its light weight, low-ish seat height, and mild, predictable single-cylinder power delivery. |
| Purpose | Built primarily for trail riding and light off-road exploration, with just enough road manners for short commutes or link-ups between trails. |
| Rider Fit | Its low 134 kg weight and manageable seat height make it accessible for shorter or less physically strong riders, though the 831mm seat is still tall by street-bike standards. |
| Character | A friendly, easygoing dual-purpose trail bike that favors playful, low-speed agility over outright speed or long-distance comfort. |
| Not Ideal For | Not a good match for riders wanting highway speed, extended touring comfort, or a bike capable of carrying a passenger any real distance. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
