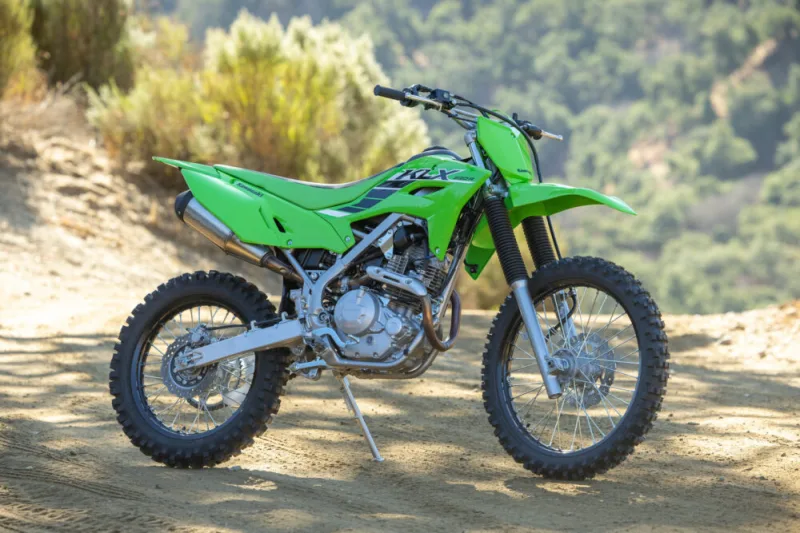

Kawasaki KLX 230R S - 2024 Specifications and Reviews
The 2024 Kawasaki KLX 230R S is a lightweight enduro motorcycle designed for beginner to intermediate off-road riders seeking an affordable entry point into dirt biking. Powered by a 233cc air-cooled single-cylinder engine with fuel injection, it delivers accessible power and easy handling characteristics. The bike is best known for its reliability, low seat height, and forgiving nature, making it ideal for learning fundamental off-road skills.
General information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Category | Enduro / offroad |
| Model year | 2024 |
| Model name | Kawasaki KLX 230R S |
Engine and Transmission Specifications | |
| Driveline | Sealed chain |
| Clutch | Wet multi-disc, manual |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Air |
| Ignition | TCBI Electronic Advance |
| Fuel control | Single Overhead Cams (SOHC) |
| Fuel system | Injection. DFI® with 32mm Keihin throttle body |
| Valves per cylinder | 4 |
| Bore x stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Compression | 9.4:1 |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 233.0 ccm (14.22 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Wire spoked |
| Rear brakes | Single disc. Petal disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Front brakes | Single disc. Petal disc. Dual-piston caliper. |
| Rear tire | 100/100-18 |
| Front tire | 80/100-21 |
| Rear wheel travel | 224 mm (8.8 inches) |
| Rear suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front wheel travel | 221 mm (8.7 inches) |
| Front suspension | 37mm telescopic fork |
| Trail | 109 mm (4.3 inches) |
| Rake (fork angle) | 25.7° |
| Frame type | High-tensile steel, box section perimeter |
Physical measures and capacities | |
| Fuel capacity | 6.43 litres (1.70 US gallons) |
| Wheelbase | 1349 mm (53.1 inches) |
| Ground clearance | 274 mm (10.8 inches) |
| Overall width | 841 mm (33.1 inches) |
| Overall length | 2035 mm (80.1 inches) |
| Overall height | 1176 mm (46.3 inches) |
| Seat height | 899 mm (35.4 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 115.0 kg (253.6 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Factory warranty | 6 months |
| Starter | Electric |
| Color options | Lime Green |
Performance Profile & Rider Fit
Best For
Track10%
City30%
Cornering55%
Daily Riding30%
Touring15%
Passenger10%
Rider Profile
| Best For | Well suited to beginner and intermediate off-road riders, including smaller or lighter-weight riders thanks to its low weight and manageable seat height. |
| Purpose | Built for trail riding, technical off-road exploration, and casual dirt fun rather than speed or highway use. |
| Rider Fit | Its light wet weight and accessible seat height make it easy to handle, flick around, and pick up if dropped, even for less physically strong riders. |
| Character | A friendly, forgiving, air-cooled trail companion that favors easy control and long suspension travel over outright performance. |
| Not Ideal For | Not a good fit for riders wanting sustained highway speeds, passenger comfort, or long-distance touring capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
