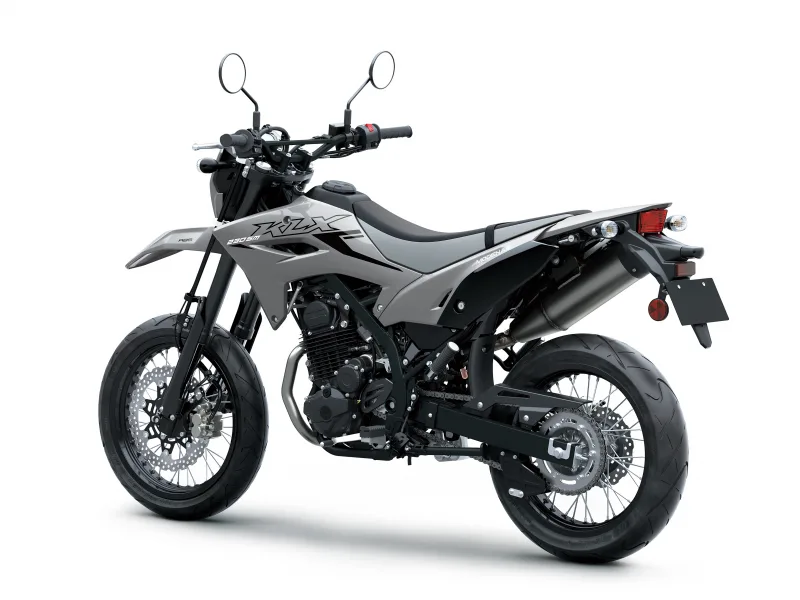

Kawasaki KLX230SM - 2025 Specifications and Reviews
The 2025 Kawasaki KLX230SM is a lightweight supermoto designed for beginner and intermediate riders seeking street-legal versatility. Its 233cc single-cylinder engine delivers accessible power with nimble handling, making it ideal for urban commuting and occasional off-road exploration. Known for affordability and manageable performance, it suits riders transitioning from smaller bikes or those prioritizing fun over raw power.
General information | |
| Color Options | Battle grey |
| Price | US$ 5999. MSRP depends on country, taxes, accessories, etc. |
| Category | Super motard |
| | |
Engine and Transmission Specifications | |
| Starting | Electric |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling System | Air |
| Ignition | TCBI Electronic Advance |
| Fuel Control | Single Overhead Cams (SOHC) |
| Induction | Injection. DFI® with 32mm Keihin throttle body |
| Valves Per Cylinder | 4 |
| Bore x Stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Compression Ratio | 9.4:1 |
| Max Torque | 17.9 Nm (1.8 kgf-m or 13.2 ft.lbs) @ 6400 RPM |
| Engine Type | Single cylinder, four-stroke |
| Capacity: | 233.0 ccm (14.22 cubic inches) |
| | |
Physical measures and capacities | |
| Fuel Capacity | 7.57 litres (2.00 US gallons) |
| Wheelbase | 1364 mm (53.7 inches) |
| Ground Clearance | 221 mm (8.7 inches) |
| Overall Width | 846 mm (33.3 inches) |
| Overall Length | 2035 mm (80.1 inches) |
| Overall Height | 1125 mm (44.3 inches) |
| Seat Height | 841 mm (33.1 inches) If adjustable, lowest setting. |
| Wet Weight | 136.0 kg (299.9 pounds) |
| Dry Weight | 129.0 kg (284.4 pounds) |
Kawasaki KLX230SM dimensions and frame | |
| Wheels | Wire spoked. Road tyres. |
| Rear Brakes | Single disc. Single-piston. Petal disc. ABS. |
| Brake Disc Diameter | 220 mm (8.7 inches) |
| Front Brakes | Single disc. Dual-piston. Petal disc. ABS. |
| Rear Tyre | 120/70-17 |
| Front Tyre | 110/70-17 |
| Rear Wheel Travel | 221 mm (8.7 inches) |
| Rear Suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Front Wheel Travel | 188 mm (7.4 inches) |
| Front Suspension | 37mm telescopic fork |
| Trail | 76 mm (3.0 inches) |
| Frame | Perimeter, high-tensile steel |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | Report missing specs or required updates. |
| Comments | ERGO-FIT®, LCD Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP MOTORCYCLE. |
| Warranty | 12 months |
| Lighting | LED headlight |
| Instruments | Digital |
| Rake (fork angle) | 24.9° |
| Driveline | Sealed chain |
| Lubrication system | Forced lubrication, wet sump |
| Year of manufacture | 2025 |
| Motorcycle name | Kawasaki KLX230SM |
Performance Profile & Rider Fit
12.5s
0-60 mph (est.)
Best For
Track40%
City75%
Cornering70%
Daily Riding55%
Touring20%
Passenger20%
Rider Profile
| Best For | Best suited to beginner and intermediate riders who want a light, unintimidating bike to build confidence on tight, twisty roads. |
| Purpose | This is a lightweight supermoto designed for playful street riding, urban commuting, and darting through tight corners rather than outright speed or distance. |
| Rider Fit | Its low 129 kg dry weight and slim single-cylinder chassis make it easy to handle for shorter or less experienced riders, though the 841 mm seat height is fairly tall for a supermoto. |
| Character | A fun, flickable, low-displacement machine that rewards momentum-carrying riding style over raw power. |
| Not Ideal For | It is not a good fit for riders wanting highway touring capability, a passenger-friendly setup, or strong straight-line acceleration. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
