What category is the 2024 KTM 85 SX 17-14?

The 2024 KTM 85 SX 17-14 has a Category of Cross / motocross.

What is the engine size of the 2024 KTM 85 SX 17-14?

The 2024 KTM 85 SX 17-14 has a Capacity: of 84.9 ccm (5.18 cubic inches).

What type of engine does the 2024 KTM 85 SX 17-14 have?

The 2024 KTM 85 SX 17-14 has a Engine type of Single cylinder, two-stroke.

Is the 2024 KTM 85 SX 17-14 air cooled or liquid cooled?

The 2024 KTM 85 SX 17-14 has a Cooling system of Liquid.

How many gears does the 2024 KTM 85 SX 17-14 have?

The 2024 KTM 85 SX 17-14 has a Gearbox of 6-speed.

How much does the 2024 KTM 85 SX 17-14 weigh?

The 2024 KTM 85 SX 17-14 has a Dry weight of 67.0 kg (147.7 pounds).

What is the seat height of the 2024 KTM 85 SX 17-14?

The 2024 KTM 85 SX 17-14 has a Seat height of 850 mm (33.5 inches) If adjustable, lowest setting..

KTM 85 SX 17-14 - 2024 Specifications and Reviews

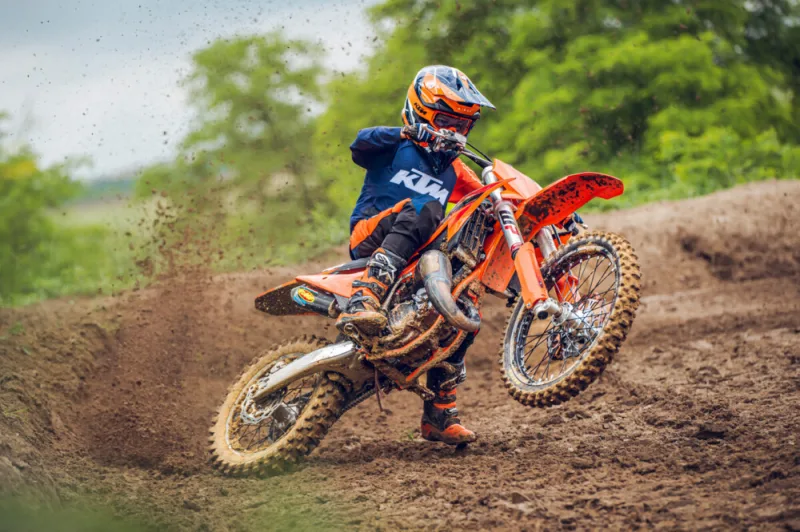

Name: 2024 KTM 85 SX 17-14
Brand: KTM

The 2024 KTM 85 SX 17-14 is a lightweight 2-stroke motocross bike designed for young and amateur riders transitioning through competitive levels. Known for its sharp handling and responsive power delivery, it excels in both amateur racing and training environments. The bike's compact frame and manageable engine characteristics make it an ideal stepping stone in the KTM off-road development ladder.

⇄ Compare against another bike 📅 All Years

2024

Add/Upload pictures for this motorcycle

General information
Category	Cross / motocross
Model	KTM 85 SX 17-14
Year	2024
Engine and Transmission Specifications
Driveline	1/2 Â x Â 5/16 chain
Clutch	Wet, multi-disc clutch, Formula hydraulics
Transmission type	Chain (final drive)
Gearbox	6-speed
Cooling system	Liquid
Lubrication system	Mixture oil lubrication
Ignition	MEDJ digital EMS
Fuel system	Carburettor. Mikuni TMX
Bore x Stroke	47.0 x 40.8 mm (1.9 x 1.6 inches)
Engine details	Reed intake.
Engine type	Single cylinder, two-stroke
Capacity:	84.9 ccm (5.18 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes	Single disc
Diameter	240 mm (9.4 inches)
Front brakes	Single disc
Rear wheel travel	305 mm (12.0 inches)
Rear Suspension	XACT WP PDS mono shock
Front wheel travel	278 mm (10.9 inches)
Front Suspension	XACT 43 WP Upside-Down fork, Ã˜ 43 mm
Rake (fork angle)	24.0°
Frame type	Central double-cradle-type 25CrMo4 steel

Physical measures and capacities
Fuel capacity	5.20 litres (1.37 US gallons)
Seat height	850 mm (33.5 inches) If adjustable, lowest setting.
Dry weight	67.0 kg (147.7 pounds)

Other specs
Starter	Kick
Color options	Orange/white/grey
Maintenance	Find parts, fluids, filters, maintenance tools and service items on eBay

Performance Profile & Rider Fit

29 hp

Peak Power (est.)

Best For

Track6%

City5%

Cornering10%

Daily Riding4%

Touring2%

Passenger0%

Rider Profile

Best For	For young or lightweight racers progressing beyond minis; demands competent throttle and clutch control to manage its peaky two-stroke power.
Purpose	A dedicated youth motocross racer built for closed dirt circuits, jumps and berms - pure competition, not transport.
Rider Fit	Tiny and feather-light with a 750mm seat, 280mm ground clearance and long-travel WP suspension; sized for smaller riders on 17/14 wheels.
Character	Sharp, revvy and aggressive - a snappy liquid-cooled two-stroke that rewards commitment with explosive acceleration and razor agility.
Not Ideal For	Not for road use, commuting, touring or passengers; no lights, kick-start only, knobby tires and race-only intent make it street-illegal.

Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.

Rider Fit Visualizer

2024 KTM 85 SX 17-14 Rider Ergonomics Assessment

Your height

Inseam (optional)

Units

Calculated in your browser only - your height/inseam are never sent to our servers.

Feet:

At 850mm, a rider of 175cm with a 79cm (estimated) inseam will reach the ground with tip-toe one foot on the 2024 KTM 85 SX 17-14, with a cramped knee angle of around 75 degrees and a slightly forward riding position.

Data quality: estimated (wheelbase estimated from this category's typical bike, not this model's own spec). Assumes about 30mm of suspension sag once seated (a typical street-bike rule of thumb - stiffer or softer suspension will vary). This is an approximation from category-typical geometry and generic body proportions, not a measurement of this specific bike or you - sit on it before you buy.

Find bikes that fit your height →
