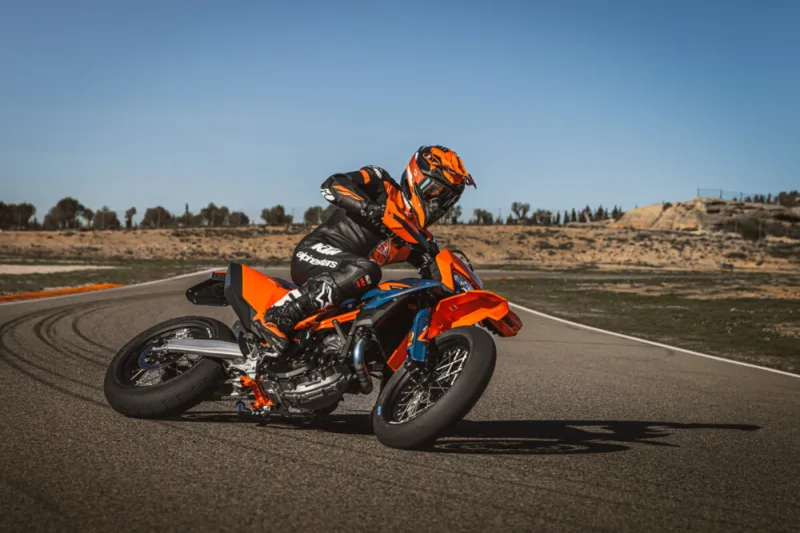

KTM 690 SMC R - 2024 Specifications and Reviews
The 2024 KTM 690 SMC R is a lightweight super motard built for agile riders seeking versatile street and light off-road performance. Its single-cylinder 693cc engine delivers 73.8 horsepower with responsive handling, making it ideal for urban commuting, weekend adventures, and technical riding. Known for its nimble character and spirited personality, the SMC R excels in mixed terrain capability.
General information | |
| Type | Super motard |
| Year model | 2024 |
| Motorcycle name | KTM 690 SMC R |
Engine and Transmission Specifications | |
| Greenhouse gases | 96.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 4.14 litres/100 km (24.2 km/l or 56.82 mpg) |
| Driveline | 520 X-ring chain |
| Clutch | PASC (TM) slipper clutch, hydraulically actuated |
| Transmission type | Chain (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Forced oil lubrication with 2 oil pumps |
| Ignition | Keihin EMS with RBW, twin ignition |
| Fuel control | Overhead Cams (OHC) |
| Fuel system | Injection |
| Bore x stroke | 105.0 x 80.0 mm (4.1 x 3.1 inches) |
| Compression | 12.7:1 |
| Torque | 73.5 Nm (7.5 kgf-m or 54.2 ft.lbs) |
| Effect | 73.8 HP (53.8 kW)) |
| Type of engine | Single cylinder, four-stroke |
| Capacity: | 693.0 ccm (42.29 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Bridgestone S21 tires. 17 inch rims. |
| Rear brakes | Single disc. Bosch 9M+ ABS. Floating disc. Single-piston caliper. |
| Diameter | 320 mm (12.6 inches) |
| Front brakes | Single disc. Bosch 9M+ ABS. Floating disc. Four-piston calipers. Radially mounted. |
| Rear wheel travel | 240 mm (9.4 inches) |
| Rear suspension | WP APEX with Pro-Lever linkage |
| Front wheel travel | 215 mm (8.5 inches) |
| Front suspension | WP APEX 48 |
| Rake (fork angle) | 26.4° |
| Frame type | Chromium-Molybdenum steel trellis frame, powder coated |
Physical measures and capacities | |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Wheelbase | 1480 mm (58.3 inches) |
| Ground clearance | 237 mm (9.3 inches) |
| Seat height | 892 mm (35.1 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.5018 HP/kg |
| Dry weight | 147.0 kg (324.1 pounds) |
| | |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Comments | Ride modes. Switchable traction control. |
| Starter | Electric |
| Color options | Orange/blue/white/black |
Performance Profile & Rider Fit
79 hp
Peak Power
3.6s
0-60 mph
Best For
Track75%
City70%
Cornering95%
Daily Riding45%
Touring25%
Passenger15%
Rider Profile
| Best For | Best suited to experienced riders comfortable with a tall, powerful, and very responsive single-cylinder supermoto. |
| Purpose | Built for aggressive cornering, supermoto-style street attack, and tight technical riding rather than long-distance travel. |
| Rider Fit | The 899mm seat height and light 153.5kg weight demand rider confidence but reward with exceptional flickability once underway. |
| Character | A raw, punchy big-bore single with sharp handling, strong midrange torque, and an aggressive, minimalist supermoto personality. |
| Not Ideal For | Not a good fit for riders seeking plush comfort, pillion capability, or relaxed long-haul touring. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
