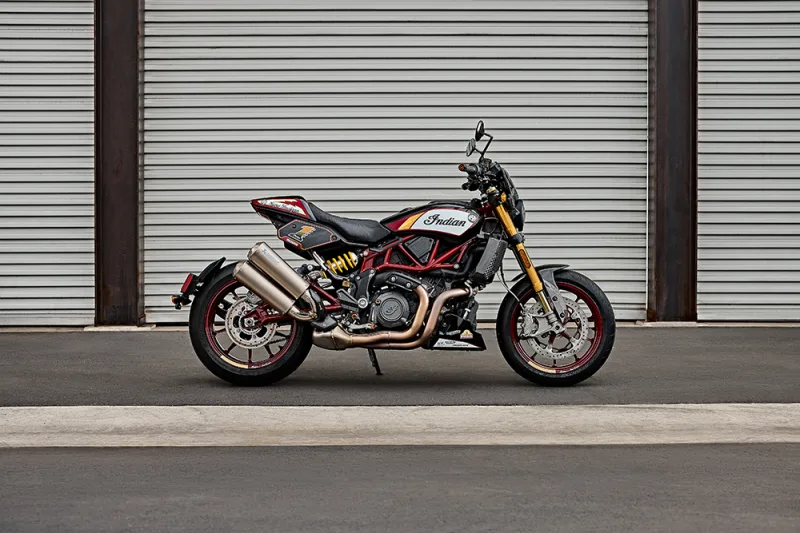

Indian FTR R Carbon - 2024 Specifications and Reviews
The 2024 Indian FTR R Carbon is a modern custom cruiser powered by a 1203cc V-twin engine producing 120 horsepower and 117.9 Nm of torque. Built for riders seeking aggressive styling with premium performance, it combines Indian's heritage cruiser DNA with contemporary technology and precision engineering. Best known for its distinctive blacked-out Carbon aesthetic and accessible power delivery, it appeals to experienced riders wanting character without sacrificing rideability.
2024
General information | |
| Price as new | Do you know this bike?Click here to rate it. We miss 2 votes to show the rating. |
| Type | Custom / cruiser |
| Year model | 2024 |
| Model | Indian FTR R Carbon |
Engine and Transmission Specifications | |
| Exhaust system | 2-into-1, Catalyst in collector |
| Clutch | Assist and slip, Multi-Plate |
| Transmission type | Belt (final drive) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Closed Loop Sequential Port Fuel Injection, 60mm |
| Valves per cylinder | 4 |
| Bore x stroke | 102.0 x 73.6 mm (4.0 x 2.9 inches) |
| Compression | 12.5:1 |
| Torque | 117.9 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6000 RPM |
| Effect | 120.0 HP (87.6 kW)) |
| Type of engine | V2, four-stroke |
| Capacity: | 1203.0 ccm (73.41 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Wheels | Cast. Metzeler® Sportec® M9 RR tires. |
| Rear brakes | Single disc. ABS. 2-piston Calipers. Brembo. |
| Diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. ABS. 4-piston calipers. Brembo. |
| Rear tire | 180/55-ZR17 |
| Front tire | 120/70-ZR17 |
| Rear wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Ohlins Fully Adjustable Piggyback IFP |
| Front wheel travel | 120 mm (4.7 inches) |
| Front suspension | Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork, 43mm |
| Trail | 100 mm (3.9 inches) |
| Rake (fork angle) | 25.3° |
| | |
Physical measures and capacities | |
| Fuel capacity | 12.90 litres (3.41 US gallons) |
| Wheelbase | 1524 mm (60.0 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Overall width | 831 mm (32.7 inches) |
| Overall length | 2223 mm (87.5 inches) |
| Overall height | 1295 mm (51.0 inches) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.5430 HP/kg |
| Weight incl. oil, gas, etc | 235.0 kg (518.1 pounds) |
| Dry weight | 221.0 kg (487.2 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Update specs | |
| Comments | Sport, Standard, and Rain ride modes. Stabilitiy Control. Traction Control. Wheelie Control with Rear Lift Mitigation. USB Fast-Charge Port. Cruise Control. |
| Factory warranty | 2 years, unlimited miles |
| Light | LED Headlight, Taillight, Turn Signals |
| Instruments | 4 in Touchscreen |
| Starter | Electric |
| Color options | Carbon Fiber |
Performance Profile & Rider Fit
120 hp
Peak Power
3.3s
0-60 mph
Best For
Track60%
City72%
Cornering85%
Daily Riding60%
Touring42%
Passenger35%
Rider Profile
| Best For | Best suited to intermediate and experienced riders who can manage a torquey, sharp-handling V-twin with real sport-oriented suspension and brakes. |
| Purpose | Built as a street-fighter style custom that blends flat-track-inspired handling with premium sport componentry for aggressive backroad and city riding. |
| Rider Fit | The 780mm seat height and 221kg dry weight make it manageable for most riders, though the firm, sporty Ohlins suspension and aggressive stance favor a fitter, more confident rider. |
| Character | A bold, premium-finished performance cruiser with a rebellious flat-track attitude, strong midrange torque, and top-shelf Brembo and Ohlins hardware for spirited riding. |
| Not Ideal For | Not a good fit for riders seeking long-distance touring comfort, passenger-friendly ergonomics, or any kind of off-road capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
