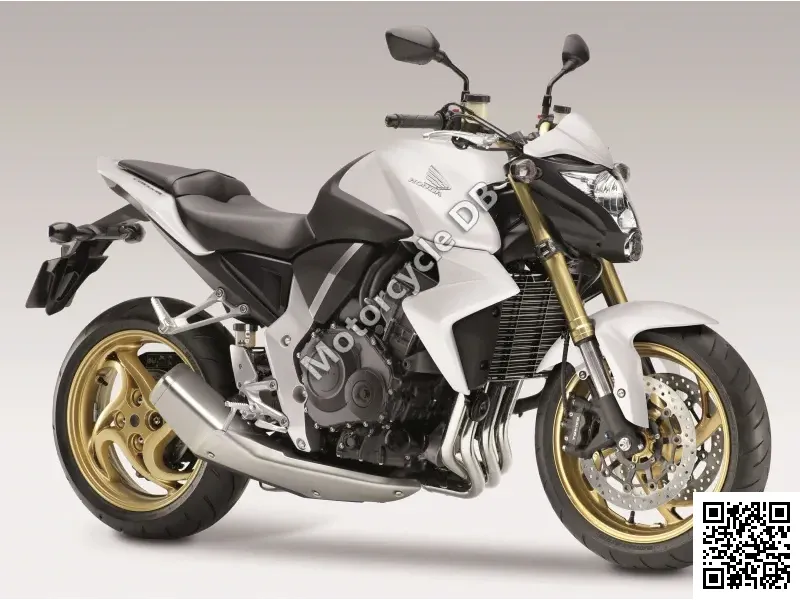

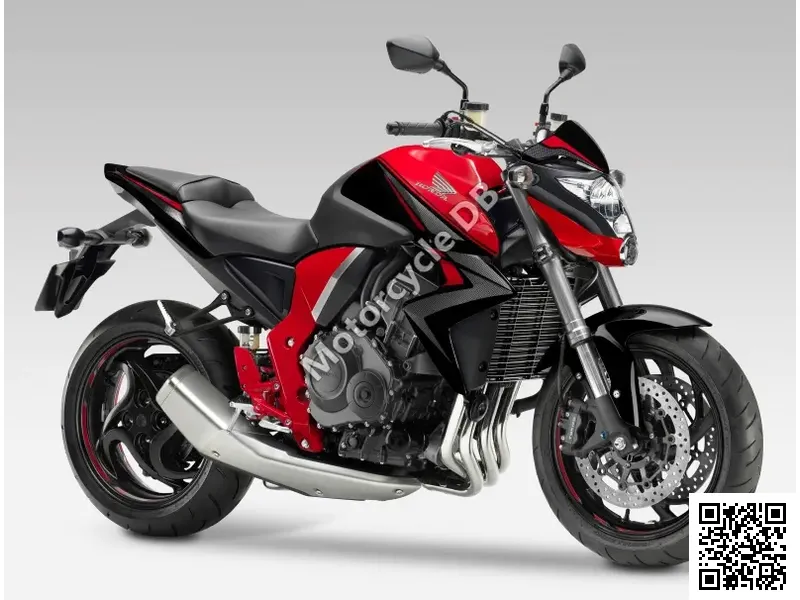

Honda CB1000R - 2011 Specifications and Reviews
General information | |
| Category | Naked bike |
| Year | 2011 |
| Model | Honda CB1000R |
| | |
Engine and Transmission Specifications | |
| Emission details | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Driveline | #530 0-ring chain |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Ignition | Computer-controlled digital transistorized with 3-D mapping |
| Fuel control | DOHC |
| Fuel system | Injection. PGM-FI Fuel injection with automatic enrichment circuit and 36mm throttle bodies |
| Valves per cylinder | 4 |
| Bore x stroke | 75.0 x 56.5 mm (3.0 x 2.2 inches) |
| Compression | 11.2:1 |
| Engine type | In-line four, four-stroke |
| Capacity: | 998.00 ccm (60.90 cubic inches) |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 256 mm (10.1 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 310 mm (12.2 inches) |
| Front brakes | Double disc |
| Rear tyre dimensions | 180/55-ZR17 |
| Front tyre dimensions | 120/70-ZR17 |
| Rear suspension travel | 127 mm (5.0 inches) |
| Rear suspension | Single gas-charged HMAS shock with spring preload and rebound damping adjustability |
| Front suspension travel | 119 mm (4.7 inches) |
| Front suspension | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability |
| Trail | 99 mm (3.9 inches) |
| Rake (fork angle) | 25.0° |
| | |
Physical measures and capacities | |
| Fuel capacity | 17.03 litres (4.50 gallons) |
| Wheelbase | 1,445 mm (56.9 inches) |
| Seat height | 826 mm (32.5 inches) If adjustable, lowest setting. |
| Dry weight | 220.0 kg (485.0 pounds) |
Other specs | |
| Modifications compared to previous model | Also called USHighland 507 ATX QuadRacer. |
| Starter | Electric |
| Wheelbase | 1,245 mm (49.0 inches) |
| Ground clearance | 127 mm (5.0 inches) |
| Overall width | 1,016 mm (40.0 inches) |
| Rear Suspension | Elka |
| Front wheel travel | 300 mm (11.8 inches) |
| Front Suspension | Elka |
| Frame type | Aluminium |
| Clutch | Wet, multiplate |
| Valves per cylinder | 4 |
| Capacity: | 507.00 ccm (30.94 cubic inches) |
| Model | Highland 507cc ATX Quad Racer |
| Color options | Pearl Black |
