CH Racing WSM 50 Replica - 2010 Specifications and Reviews

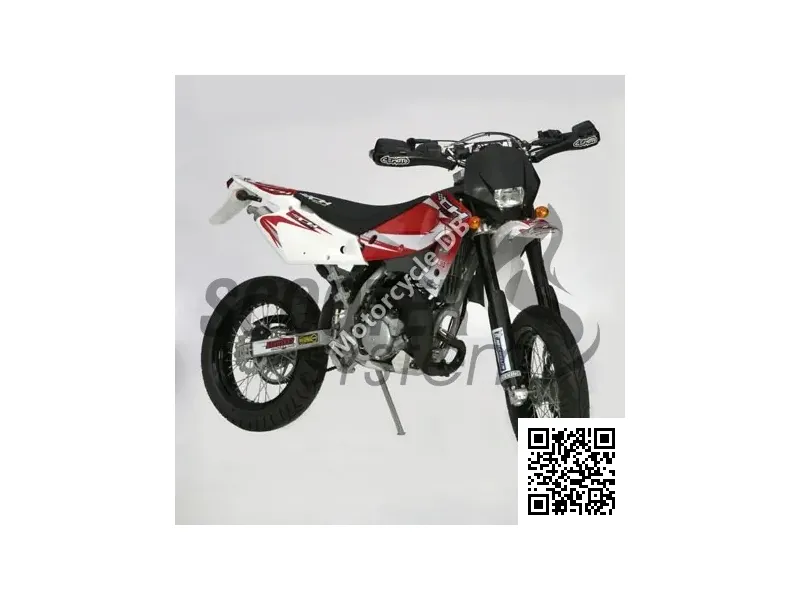

The 2010 CH Racing WSM 50 Replica is a lightweight super motard designed for novice and younger riders seeking an agile, nimble platform. Powered by a liquid-cooled two-stroke 50cc engine with six-speed transmission, it delivers spirited performance with a 45 km/h top speed. Known for its responsive handling courtesy of inverted Marzocchi forks and progressive rear suspension, this replica offers fun, manageable street performance.
Engine and Transmission Specifications | |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Fuel system | Carburettor. PHBN 16 |
| Top speed | 45.0 km/h (28.0 mph) |
| Engine type | Single cylinder, two-stroke |
| Capacity: | 49.70 ccm (3.03 cubic inches) |
| | |
| Category | Super motard |
| Year | 2010 |
| Model | CH Racing WSM 50 Replica |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 200 mm (7.9 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 260 mm (10.2 inches) |
| Front brakes | Single disc |
| Rear tyre dimensions | 130/70-17 |
| Front tyre dimensions | 100/80-17 |
| Rear suspension | Progressive unitrac type with single hydraulic shock absorber |
| Front suspension | MARZOCCHI upside-down telescopic hydraulic fork - black color |
| | |
Physical measures and capacities | |
| Fuel capacity | 8.00 litres (2.11 gallons) |
| Wheelbase | 1,375 mm (54.1 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Overall length | 2,050 mm (80.7 inches) |
| Overall height | 1,160 mm (45.7 inches) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 100.0 kg (220.5 pounds) |
| Dry weight | 92.0 kg (202.8 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Red/white/black |
| Starter | Kick |
Performance Profile & Rider Fit
28 mph
Top Speed
Best For
Track40%
City55%
Cornering75%
Daily Riding20%
Touring5%
Passenger10%
Rider Profile
| Best For | This is best suited to younger or novice riders, or licensed riders seeking a fun, low-stakes minibike experience. |
| Purpose | Built as a small-capacity supermotard replica, it's meant for playful, tight-radius fun rather than serious performance riding. |
| Rider Fit | Its tiny 92 kg dry weight and low seat height make it extremely easy to handle for smaller or lighter riders. |
| Character | It mimics the aggressive, flickable stance of a full-size supermotard but with go-kart-like scale and a top speed limited to moped-level pace. |
| Not Ideal For | This is not for riders wanting real highway speed, long-distance touring, or genuine off-road capability. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
