General information | |
| Category | Allround |
| Year | 2013 |

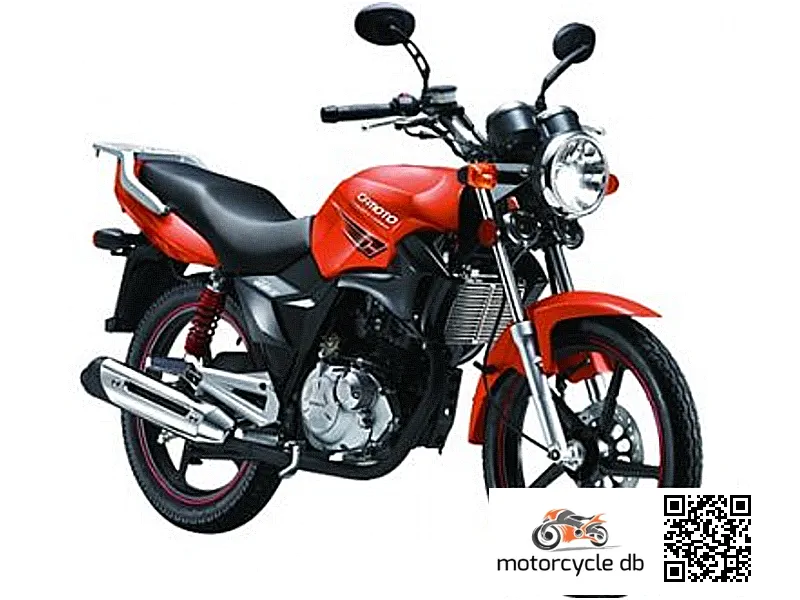

| Model | CF Moto Leader |
Engine and Transmission Specifications | |
| Greenhouse gases | 51.0 CO |
| Fuel consumption | 2.20 litres/100 km (45.5 km/l or 106.92 mpg) |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Ignition | ECU |
| Fuel system | Injection. EFI |
| Bore x stroke | 57.0 x 58.0 mm (2.2 x 2.3 inches) |
| Compression | 10.5:1 |
| Torque | 12.20 Nm (1.2 kgf-m or 9.0 ft.lbs) @ 6500 |
| Power | 14.08 |
| Engine details | Balancer shaft |
| Engine type | Single cylinder, four-stroke |
| Capacity: | 149.40 ccm (9.12 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Cast aluminum |
| Rear brakes | Expanding brake (drum brake) |
| Front brakes | Single disc |
| Rear tyre dimensions | 3.25-18 |
| Front tyre dimensions | 2.75-18 |
| Rear suspension | Swingarrm |
| Front suspension | Telescopic Fork |
| Rake (fork angle) | 24.0° |
| | |
Physical measures and capacities | |
| Fuel capacity | 16.50 litres (4.36 gallons) |
| Wheelbase | 1,280 mm (50.4 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Overall width | 750 mm (29.5 inches) |
| Overall length | 2,040 mm (80.3 inches) |
| Overall height | 1,170 mm (46.1 inches) |
| Weight incl. oil, gas, etc | 128.0 kg (282.2 pounds) |
Other specs | |
| Wheelbase | 1,200 mm (47.2 inches) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.1719 HP/kg |
| Dry weight | 64.0 kg (141.1 pounds) |
| Rear brakes diameter | 180 mm (7.1 inches) |
| Front brakes diameter | 210 mm (8.3 inches) |
| Rear tyre | 80/100-12 |
| Front tyre | 60/100-14 |
| Rear Suspension | Sachs monoshock, three step adjustable |
| Front wheel travel | 240 mm (9.4 inches) |
| Front Suspension | UPSD Tech Suspension |
| Frame type | Aluminium, perimetral |
| Clutch | Wet, 5-plate |
| Transmission type,final drive | Chain |
| Valves per cylinder | 2 |
| Bore x Stroke | 56.5 x 59.0 mm (2.2 x 2.3 inches) |
| Capacity: | 150.00 ccm (9.15 cubic inches) |
| Comments | Chinese made bike. |
| Color options | Orange, Blue, Red |
| Instruments | Analogue |
| Starter | Electric |
