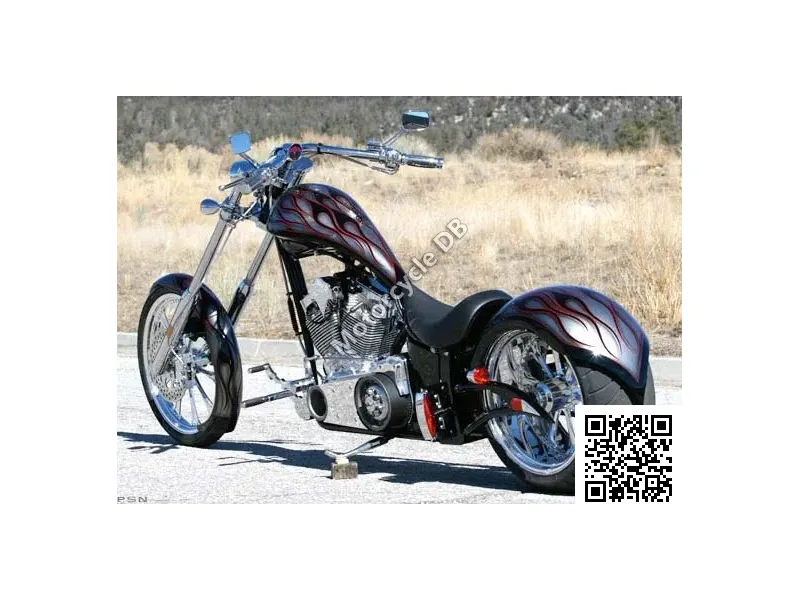

Big Bear Choppers Sled 114 X-Wedge EFI - 2010 Specifications and Reviews
The 2010 Big Bear Choppers Sled 114 X-Wedge EFI is a classic American cruiser designed for riders seeking authentic chopper styling with modern reliability. Its 114-cubic-inch engine delivers commanding presence on the road, while the low 20-inch seat height and relaxed geometry make it accessible to various rider types. Known for its striking aesthetic appeal and dependable EFI technology, this custom cruiser excels in leisurely highway riding and show appearances.
2010
General information | |
| Category | Custom / cruiser |
| Year | 2010 |
| Model | Big Bear Choppers Sled 114 X-Wedge EFI |
Engine and Transmission Specifications | |
| Exhaust system | Chrome Radius Tuned Exhaust |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | S and S Dual Gerotor oil pump |
| Fuel system | Injection. S and S Closed-Loop Electronic Fuel Injection |
| Bore x stroke | 104.8 x 108.0 mm (4.1 x 4.3 inches) |
| Torque | 153.22 Nm (15.6 kgf-m or 113.0 ft.lbs) |
| Power | 97.00 |
| Engine type | V2, four-stroke |
| Capacity: | 1868.24 ccm (114.00 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Single disc. BBC P.M. 4-piston calipers |
| Front brakes | Single disc. P.M. 4-piston calipers |
| Rear tyre dimensions | 300/80-18 |
| Front tyre dimensions | 90/80-21 |
| Rear suspension travel | 76 mm (3.0 inches) |
| Rear suspension | Progressive |
| Front suspension | BBC Smooth Mount Hidden Axle |
| Trail | 95 mm (3.8 inches) |
| Rake (fork angle) | 40.0° |
Physical measures and capacities | |
| Fuel capacity | 12.30 litres (3.25 gallons) |
| Wheelbase | 2,235 mm (88.0 inches) |
| Overall length | 2,921 mm (115.0 inches) |
| Seat height | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.3055 HP/kg |
| Dry weight | 317.5 kg (700.0 pounds) |
Other specs | |
| Maintenance | Find parts, fluids, filters, maintenance tools and service items on eBay |
| Color options | Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue, white. |
| Starter | Electric |
Performance Profile & Rider Fit
97 hp
Peak Power
5.5s
0-60 mph
Best For
Track10%
City25%
Cornering20%
Daily Riding40%
Touring35%
Passenger30%
Rider Profile
| Best For | This is a machine for experienced riders who are comfortable managing a long, heavy, extreme-rake custom chopper at low speeds. |
| Purpose | Built as a radical style-and-cruising statement rather than a performance or utility machine, it exists to be seen and to deliver a big V-twin rumble on open, straight roads. |
| Rider Fit | The 40-degree rake, stretched wheelbase, low seat, and 700-pound dry weight demand strong low-speed balance and confident handling in tight spaces like parking lots and U-turns. |
| Character | It suits a rider who values bold custom aesthetics, torque-heavy V-twin character, and cruising presence over agility, cornering precision, or long-distance practicality. |
| Not Ideal For | It is not a good fit for riders wanting nimble handling, aggressive cornering ability, off-road capability, or a comfortable high-mileage touring setup. |
Character map is an editorial estimate based on this bike's specifications, not a lab-tested measurement.
